Lenovo Lenovo FLEX series laptops Flex 5-1470 (Type 80XA), motherboard Schematic diagram

Click on picture to enlarge	Price: US $20.00 Also Included: — 2 Component Placement Diagrams (Silkscreen/searchable PDF file) VER: 0.4 and VER: 2.A, it's not a boardview file such as: .TVW, .BRD etc... — 3 schematic diagrams for daughter boards (Sensor and 2 IO boards) — Power Tree Block Diagram — Power Sequence Timing Diagram Major components: Intel KabyLake U/KabyLake R Processor with DDR4 GPU: UMA or DIS N16S-GTR(940)/N16V-GMR1(920) EC: Nuvoton NPCE388NB0DX File type : PDF (Searchable) Language : English

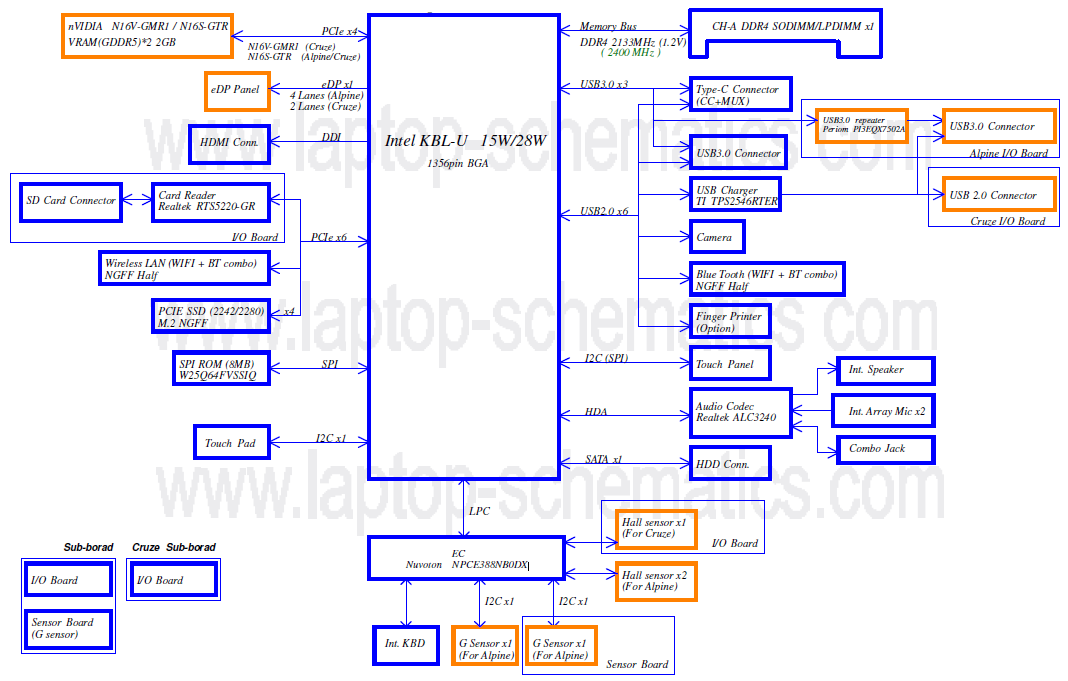

Click on picture to enlarge

Price: US $20.00

Also Included:

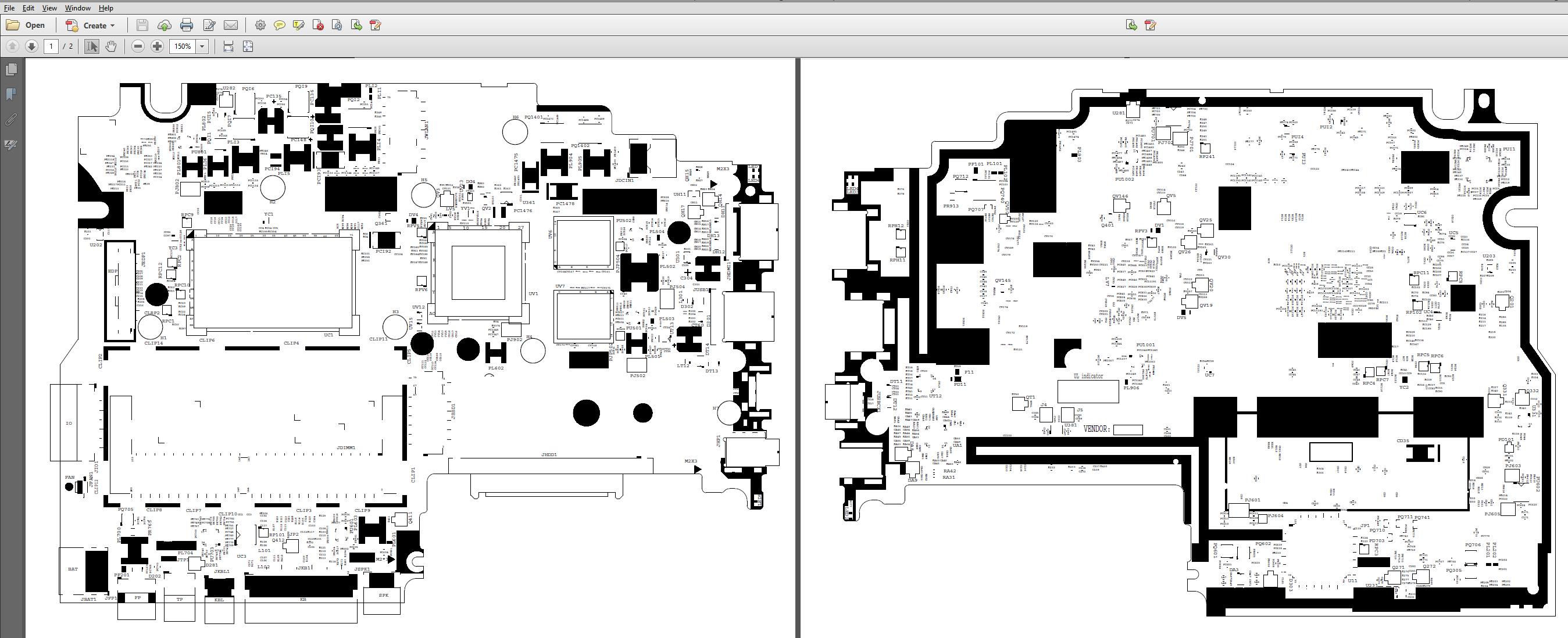

— 2 Component Placement Diagrams (Silkscreen/searchable PDF file) VER: 0.4 and VER: 2.A,
it's not a boardview file such as: .TVW, .BRD etc...
— 3 schematic diagrams for daughter boards (Sensor and 2 IO boards)
— Power Tree Block Diagram
— Power Sequence Timing Diagram

Major components:

Intel KabyLake U/KabyLake R Processor with DDR4
GPU: UMA or DIS N16S-GTR(940)/N16V-GMR1(920)
EC: Nuvoton NPCE388NB0DX

File type : PDF (Searchable)
Language : English

Updated: 21-05-2020
