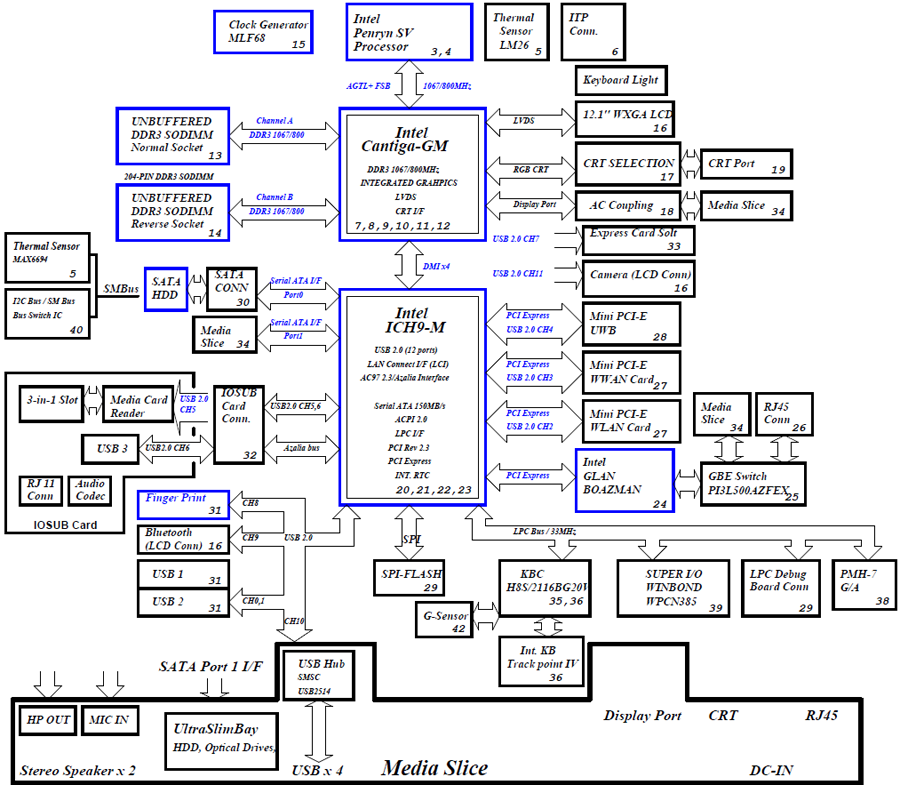

Lenovo X series laptops (ThinkPad) X200 laptop (ThinkPad), motherboard Schematic diagram

Click on picture to enlarge	Price: US $20.00 Also included: — 2 schematic diagrams for MB (rev: 1 & 2) Additional schematic diagrams for: — Fingerprint Board — I/O SUB-CARD (Codec CX20561,AUDIO MIC & CONN, AMP AN12946A, USB POWER / CONNECTOR, CARDREADER CONTROLLER R5U880, CARD READER, SUB-CARD CONNECTOR) — Media Slice (Port Replicator) — Inverter Board LED circuit and Interface Pin Assignment — LCD Cable Wiring Diagram and Conn Pin Assignment — Power Block and Power Sequence diagrams with explanations (PDF file, 14 pages) BoardView files : — 2 BoardView files for MB (rev: 1 & 2) — BoardView file for IO Board — BoardView file for Fongerprint Board — 4 BoardView files for Media Slice (Port Replicator) (rev: 1,2,3 & SC) — BoardView software Major components: CPU Intel Penryn SV NB/SB Intel Cantiga-GM / ICH9-M GPU: (UMA) KBC/SIO: H8S/2116BG20V / WPCN385 File type : PDF (Searchable) Language : English

Click on picture to enlarge

Price: US $20.00

Also included:

— 2 schematic diagrams for MB (rev: 1 & 2)
Additional schematic diagrams for:
— Fingerprint Board
— I/O SUB-CARD (Codec CX20561,AUDIO MIC & CONN, AMP AN12946A,
USB POWER / CONNECTOR, CARDREADER CONTROLLER R5U880, CARD READER, SUB-CARD CONNECTOR)
— Media Slice (Port Replicator)
— Inverter Board LED circuit and Interface Pin Assignment
— LCD Cable Wiring Diagram and Conn Pin Assignment

— Power Block and Power Sequence diagrams with explanations (PDF file, 14 pages)

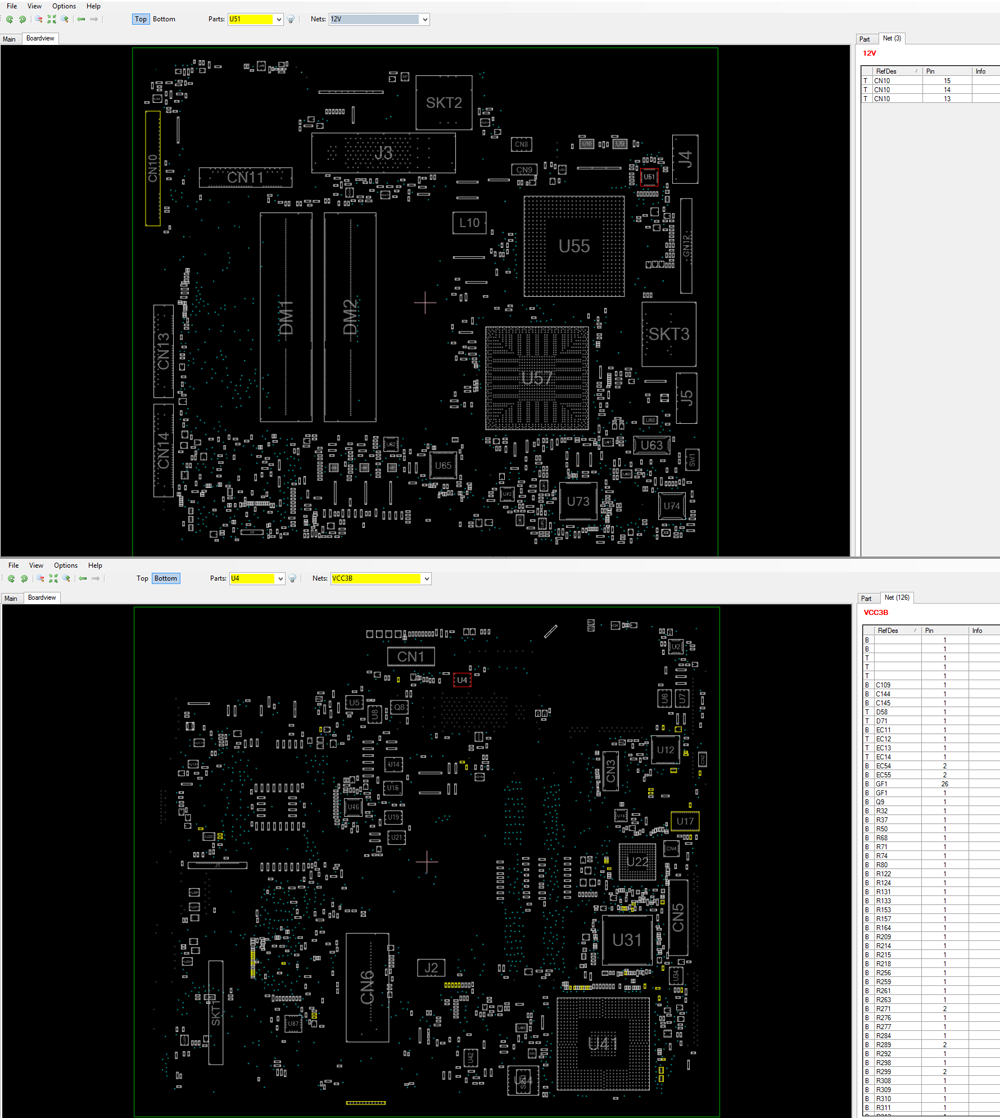

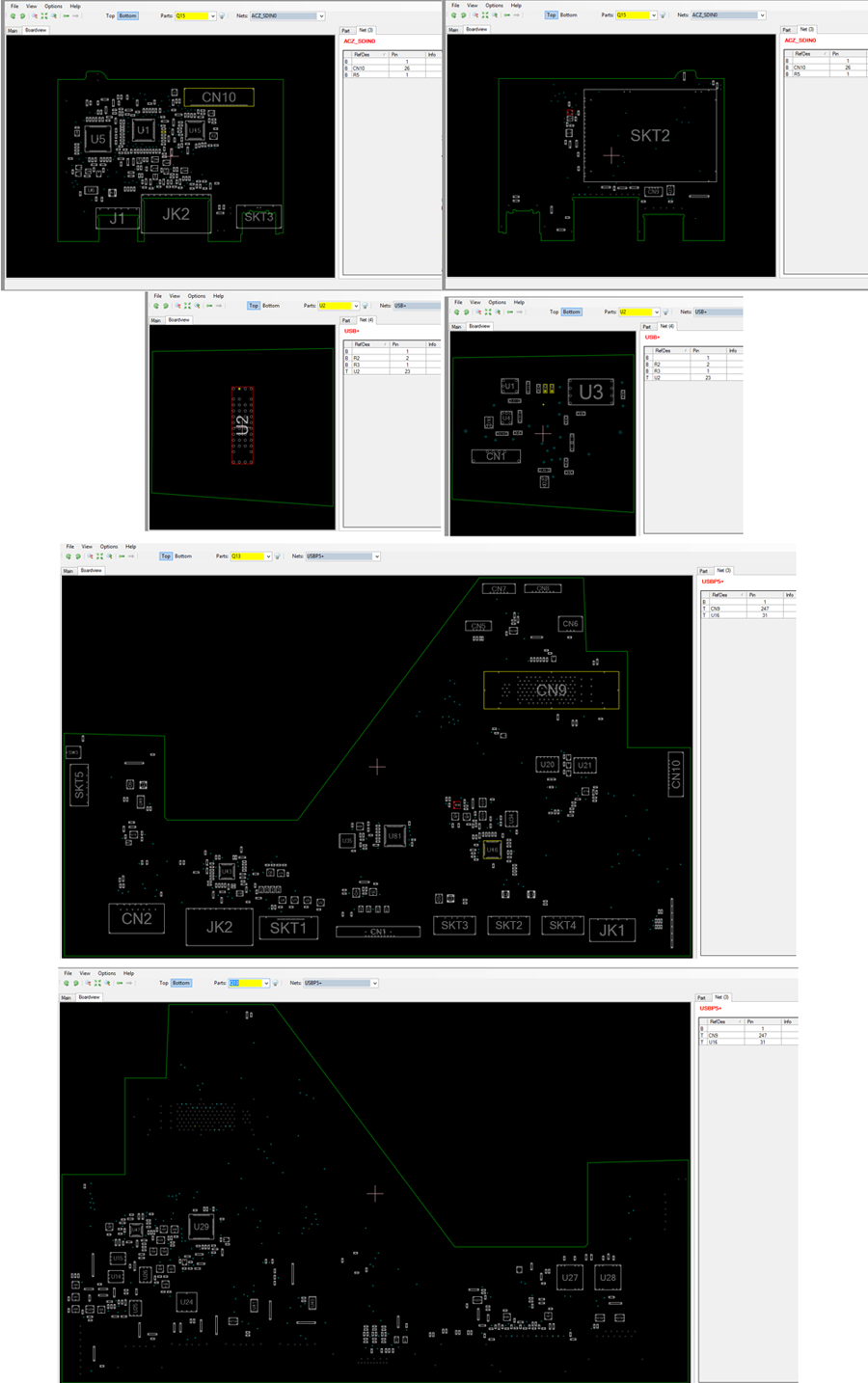

BoardView files :

— 2 BoardView files for MB (rev: 1 & 2)
— BoardView file for IO Board
— BoardView file for Fongerprint Board
— 4 BoardView files for Media Slice (Port Replicator) (rev: 1,2,3 & SC)

— BoardView software

Major components:

CPU Intel Penryn SV
NB/SB Intel Cantiga-GM / ICH9-M
GPU: (UMA)
KBC/SIO: H8S/2116BG20V / WPCN385

File type : PDF (Searchable)
Language : English
