Lenovo X series laptops (ThinkPad) X100e laptop (ThinkPad), motherboard Schematic diagram

Click on picture to enlarge

Price: US $15.00

Also included:

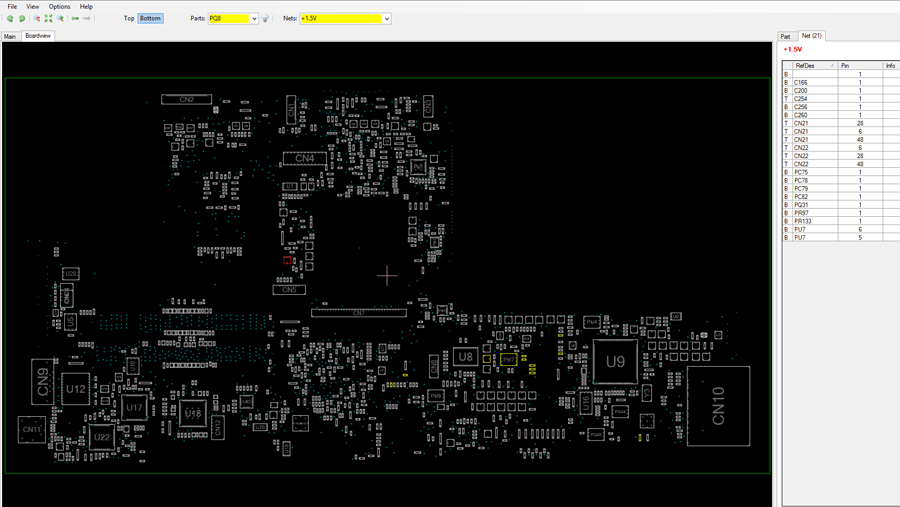

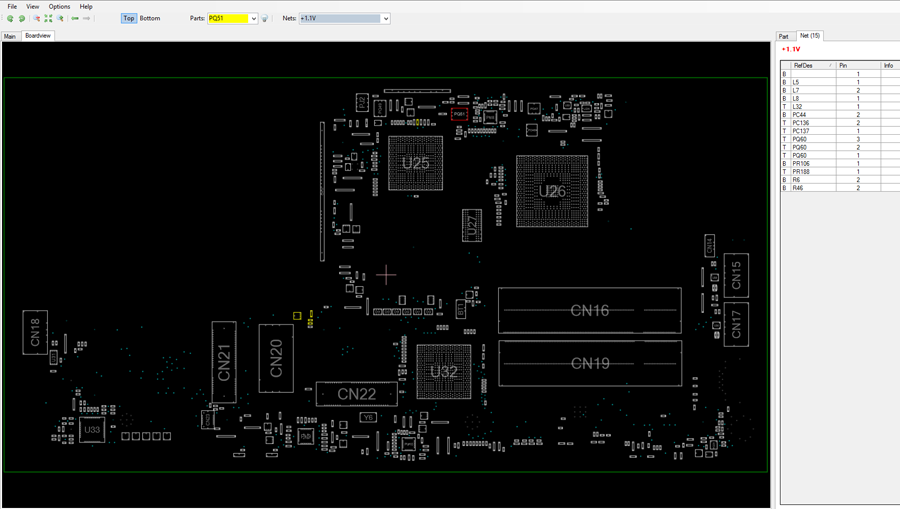

BoardView file and BoardView software
Power Block diagram
Power Sequence Block diagram

Major components:

Intel PineView-M
Intel TigerPoint
GPU: (UMA)
KBC: ITE8502E

File type : PDF (Searchable)
Language : English
Updated: 24-12-2018
