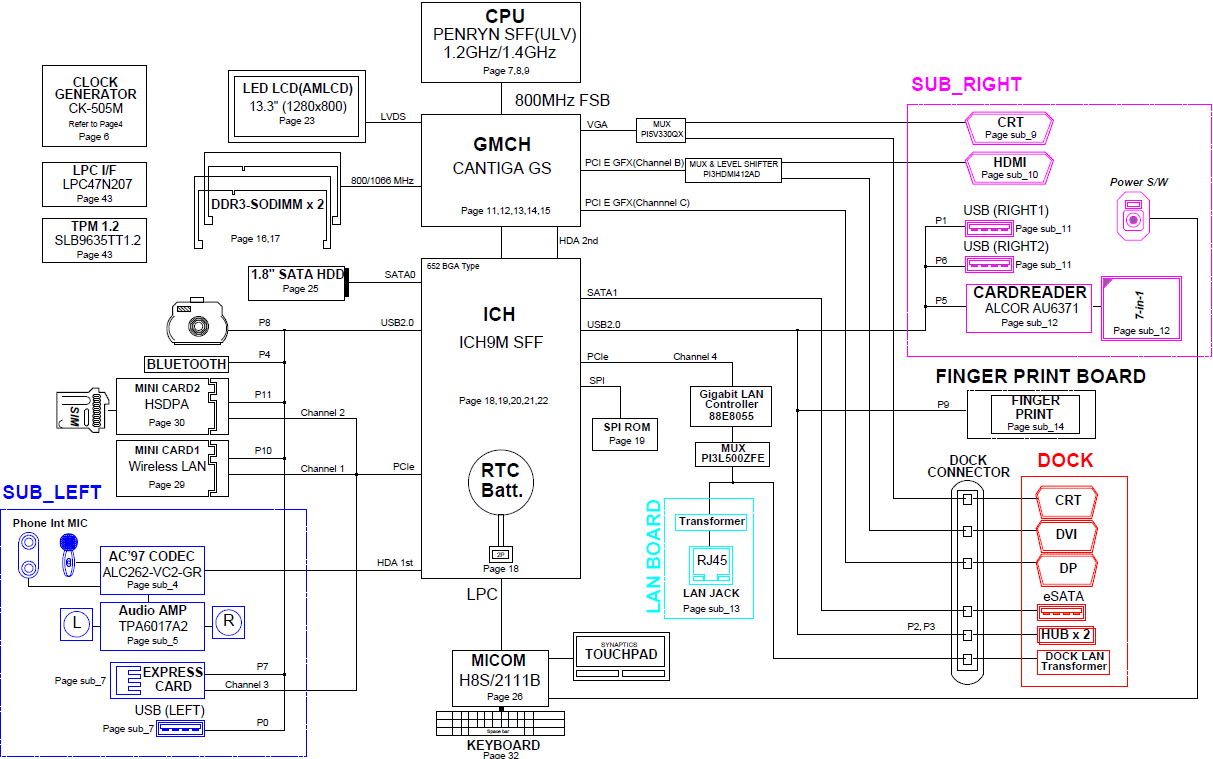

Samsung X-Series NP-X360, Motherboard Schematic diagram

Click on picture to enlarge	Price: US $11.25 Model Name : NP-X360, NT-X360 Project name : SAMOA , SAMOA(DDR3) Known PCB Codes: BA41-00905A BA41-00906A Known PBA Names: BA92-05357A BA92-05356A CPU : Intel Core2 Duo Processor ULV Chip Set : Intel GS45 + Intel ICH9M SFF Video : Intel GMA4500 Intel GS45 File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Model Name : NP-X360, NT-X360

Project name : SAMOA , SAMOA(DDR3)
Known PCB Codes: BA41-00905A BA41-00906A
Known PBA Names: BA92-05357A BA92-05356A

CPU : Intel Core2 Duo Processor ULV
Chip Set : Intel GS45 + Intel ICH9M SFF
Video : Intel GMA4500 Intel GS45

File type : PDF
Language : English

Updated: 17-02-2010
