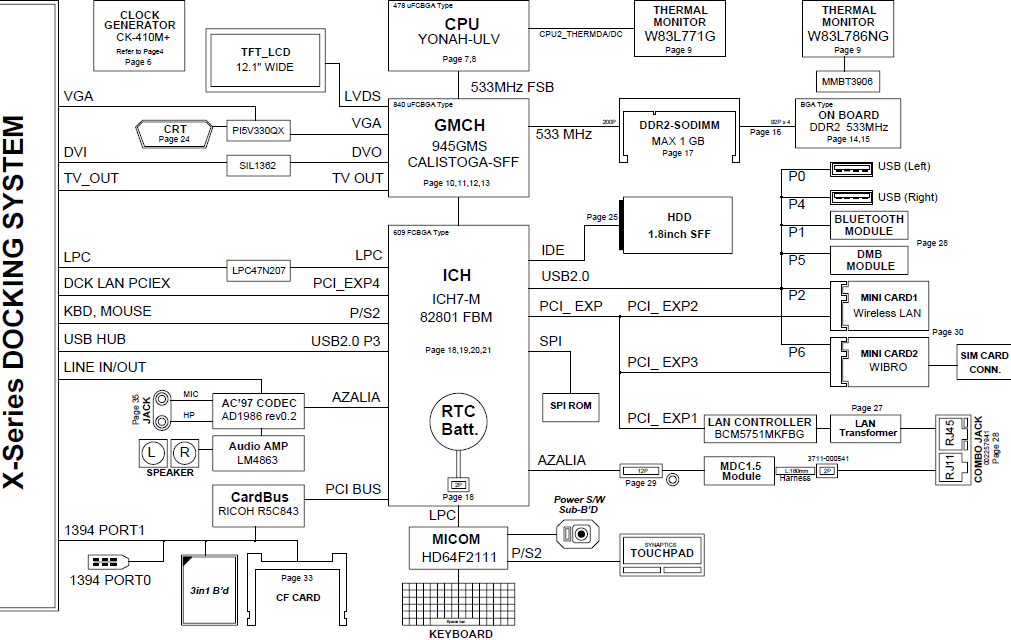

Samsung Q-Series NP-Q40, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $11.25 Model Name : NP-Q40, NT-Q40 Project name : RIMINI Known PCB Codes: BA41-00680A BA41-00683A Known PBA Names: BA92-04342A CPU : Intel Single core Yonah ULV Chip Set : Intel 945GMS+ICH7M Video : Internal Gfx, Intel 945 GMS File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Model Name : NP-Q40, NT-Q40

Project name : RIMINI
Known PCB Codes: BA41-00680A BA41-00683A
Known PBA Names: BA92-04342A

CPU : Intel Single core Yonah ULV
Chip Set : Intel 945GMS+ICH7M
Video : Internal Gfx, Intel 945 GMS

File type : PDF
Language : English

Updated: 29-01-2010
