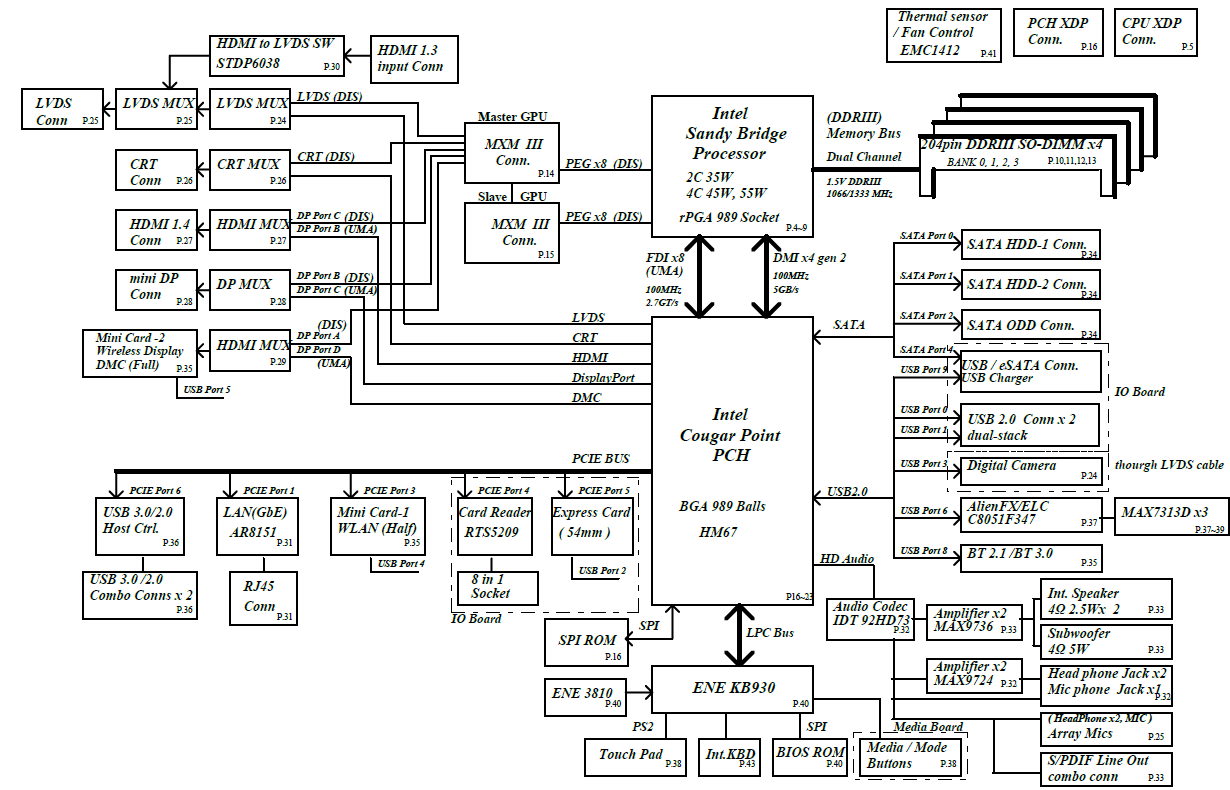

Alienware M18x M18x R1, motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 Also included: Power Block Diagram SMbus block diagram Major components: Intel Sandy Bridge + Cougar Point GPU: (DIS) 2xMXM III Card EC: ENE KB930 File type : PDF (Searchable) Language : English

Click on picture to enlarge

Price: US $15.00

Also included:

Power Block Diagram
SMbus block diagram

Major components:

Intel Sandy Bridge + Cougar Point
GPU: (DIS) 2xMXM III Card
EC: ENE KB930

File type : PDF (Searchable)
Language : English

Updated: 11-06-2020
