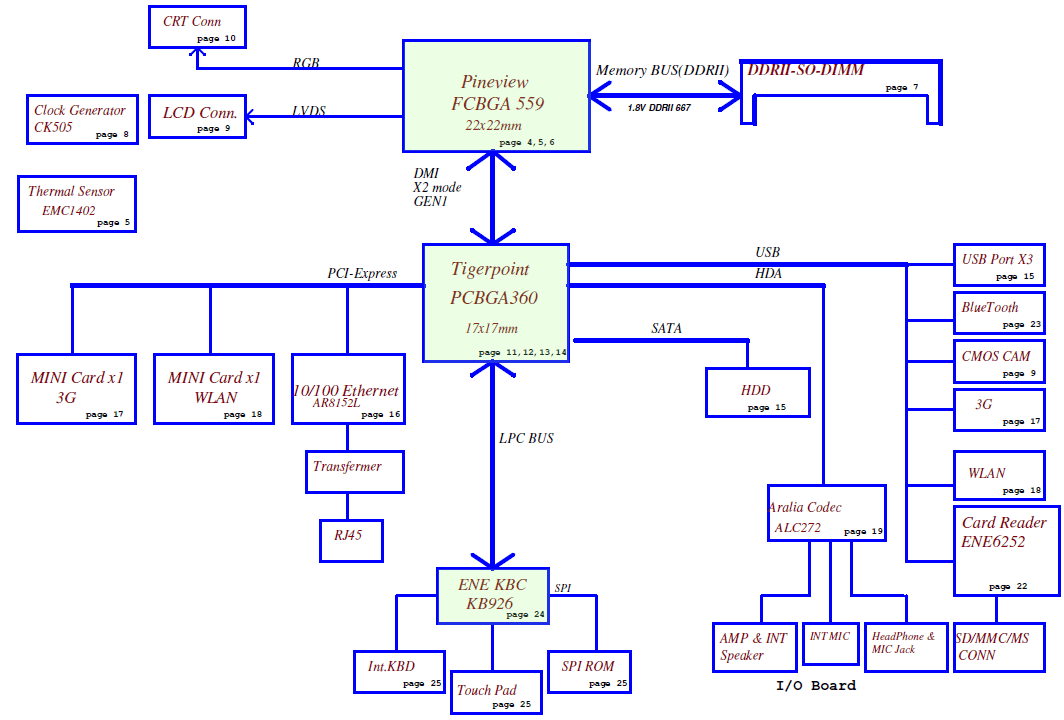

Acer Aspire ONE (NetBook) AOE100 (Atom N450 - DDR2 ), Laptop motherboard Schematic diagram
Click on picture to enlarge |
This schematic diagram is applicable to motherboards with Intel Atom N450 and DDR2 RAM only ! Major components CPU / RAM : Intel Atom N450 / DDR2 RAM Chipset : Intel TigerPoint KBC(Embeded Controller) : KB926 Clock Generator : SLG8SP556VTR(CK505) Audio Codec/AMP : Realtek ALC272 / TPA6017A2 LAN Controller : Atheros AR8152L Cardreader Controller : ENE6252 <Power System> 5V/3V :TPS51125 1.8VP / +VCCPP: RT8209/SY8033 +0.89VP/+1.5VS/+0.9VSP: SY8033/APL5930/APL5336 CPU_CORE: ADP3211 Charger : ISL6251 File tipe : PDF Language : English |
---|
