Clevo M-series M120C, Laptop Motherboard Schematic diagram

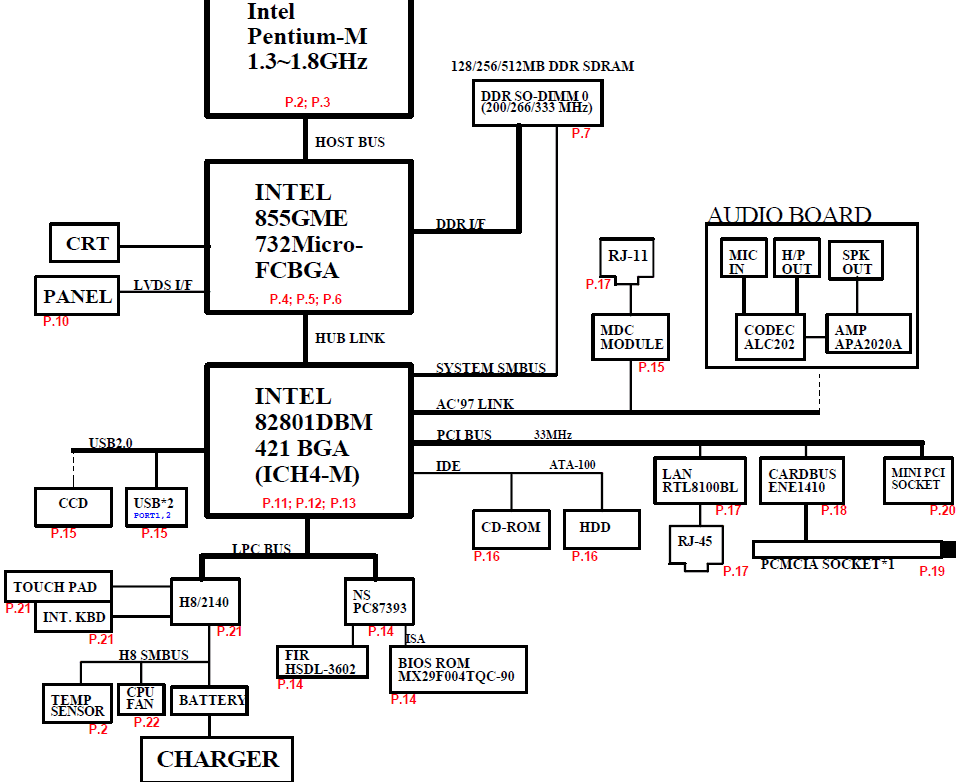

Click on picture to enlarge	Price: US $11.25 Major components CPU : Intel Pentium M (Banias / Dothan) Chipset : Intel 855GME / ICH4-M (82801DBM) VGA : UMA KBC(Embeded Controller),SIO : H8/2140, PC87393 Known motherboard part numbers : 6-7P-M12C0-D03 , 71-M12C0-004, M120CMB-0D File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Major components

CPU : Intel Pentium M (Banias / Dothan)
Chipset : Intel 855GME / ICH4-M (82801DBM)
VGA : UMA
KBC(Embeded Controller),SIO : H8/2140, PC87393

Known motherboard part numbers : 6-7P-M12C0-D03 , 71-M12C0-004, M120CMB-0D

File type : PDF
Language : English
