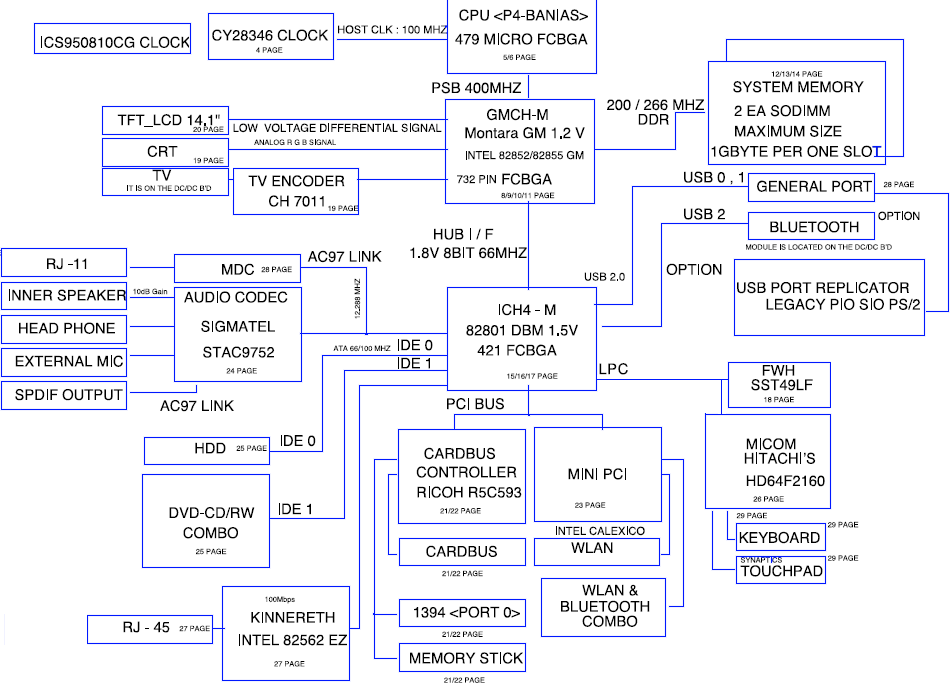

Gateway Other 200ARC, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $11.25 Major components CPU :Intel Banias North Bridge :Intel Montara GM 82852/82855GM South Bridge :Intel ICH4-M 82801DBM VGA :UMA Clock Generator :ICS950810CG / CY28346 Thermal Sensor :ADM1032ARM Audio Codec :STAC9752 Audio Amplifier :TPA6017A2 KBC(Embeded Controller),SIO :MICOM Hitachi HD64F2169 LAN Controller :INTEL 82562Z CardBUS/1394/Cardreader Contr.:Ricoh R5C593 <Power System> ISL6225CA-T ISL6225CA-T LTC3735 MB3887 LT1930 LP2951CM ISL6225CA-T Total Pages : 122 File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Major components

CPU :Intel Banias
North Bridge :Intel Montara GM 82852/82855GM
South Bridge :Intel ICH4-M 82801DBM
VGA :UMA
Clock Generator :ICS950810CG / CY28346
Thermal Sensor :ADM1032ARM
Audio Codec :STAC9752
Audio Amplifier :TPA6017A2
KBC(Embeded Controller),SIO :MICOM Hitachi HD64F2169
LAN Controller :INTEL 82562Z
CardBUS/1394/Cardreader Contr.:Ricoh R5C593

<Power System>

ISL6225CA-T
ISL6225CA-T
LTC3735
MB3887
LT1930
LP2951CM
ISL6225CA-T

Total Pages : 122
File type : PDF
Language : English

Updated: 25-01-2010
