Gateway ID54 Series ID54xx, Laptop Motherboard Schematic diagram

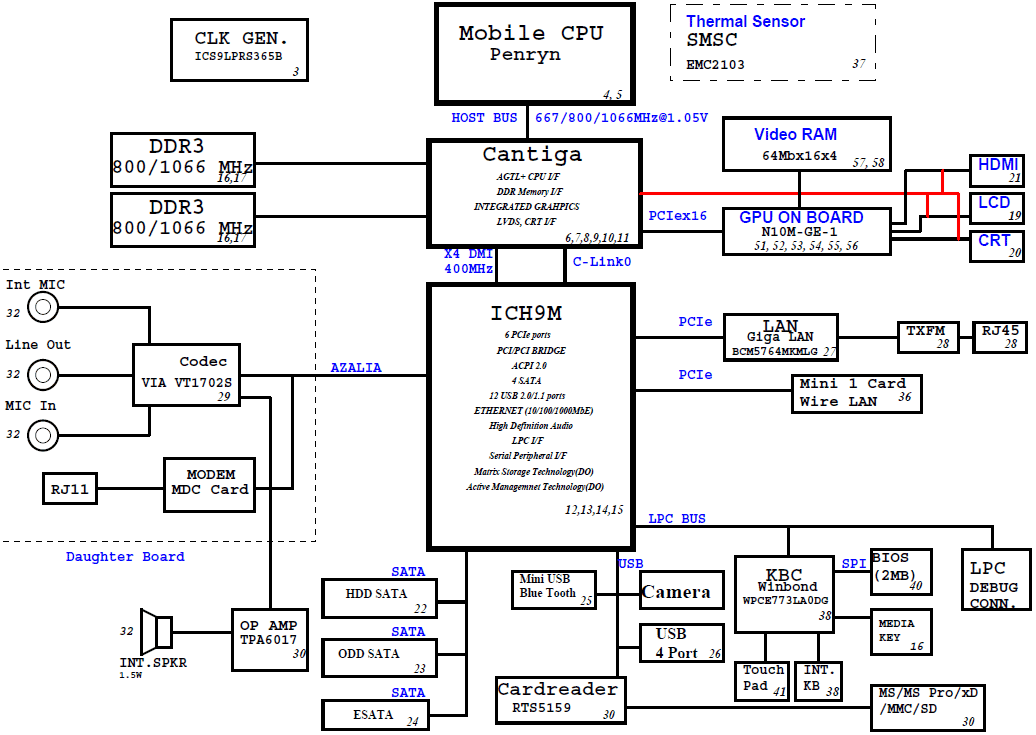

Click on picture to enlarge	Price: US $17.25 Included: "Board view" file + software (viewer). Using this tool you will be able to find any component, pin or signal on your motherboard in a few seconds! * All Daugter Board schematic diagrams, such as: Audio Board/LED Board/ Power SW Board, TouchPad btn board/USB board Major components CPU :Intel Penryn North Bridge :Intel Cantiga SFF GS45 South Bridge :Intel ICH9-M SFF Thermal Sensor :EMC2103 Video :UMA / DIS (N10M-GE-1) Clock Generator :ICS9LPRS365B Audio Codec :VIA VT1702S Audio Amplifier :TPA6017 KBC(Embeded Controller),SIO :WPCE773LA0DG LAN Controller :BCM5764MKMLG <Power System> TPS51125 TPS51124 RT9026 G9198-18 G9189-28 MAX8731A ADP3207A G5110R Total Pages : 65 File type : PDF Language : English

Click on picture to enlarge

Price: US $17.25

Included:

*"Board view" file + software (viewer). Using this tool you will be able
to find any component, pin or signal on your motherboard in a few seconds!
** All Daugter Board schematic diagrams, such as: Audio Board/LED Board/ Power SW Board,
TouchPad btn board/USB board

Major components

CPU :Intel Penryn
North Bridge :Intel Cantiga SFF GS45
South Bridge :Intel ICH9-M SFF
Thermal Sensor :EMC2103
Video :UMA / DIS (N10M-GE-1)
Clock Generator :ICS9LPRS365B
Audio Codec :VIA VT1702S
Audio Amplifier :TPA6017
KBC(Embeded Controller),SIO :WPCE773LA0DG
LAN Controller :BCM5764MKMLG

<Power System>

TPS51125
TPS51124
RT9026
G9198-18
G9189-28
MAX8731A
ADP3207A
G5110R

Total Pages : 65
File type : PDF
Language : English

Updated: 06-12-2010
