Gateway EC39C Series EC39C, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $17.25 Included: *"Board view" file + software (viewer). Using this tool you will be able to find any component, pin or signal on your motherboard in a few seconds! Major components CPU :Intel Arrandale Chipset :Intel PCH IbexPeak-M VGA :UMA/DIS (Switchable)-nVIDIA N11M-GE1/N11M-OP1/N11P-GE1 Clock Generator :9LVS3197BKLFT-GP Thermal Sensor :G787 Audio Codec :CX20672 KBC(Embeded Controller),SIO :NPCE781B LAN Controller :AR8131L CardBUS/1394/Cardreader Contr.:AU6437 <Power System> RT8152D RT8223B RT8209E RT8209E RT8015A RT9026 ISL88731A ISL62881 RT8208A File type : PDF Language : English

Click on picture to enlarge

Price: US $17.25

Included:

*"Board view" file + software (viewer). Using this tool you will be able
to find any component, pin or signal on your motherboard in a few seconds!

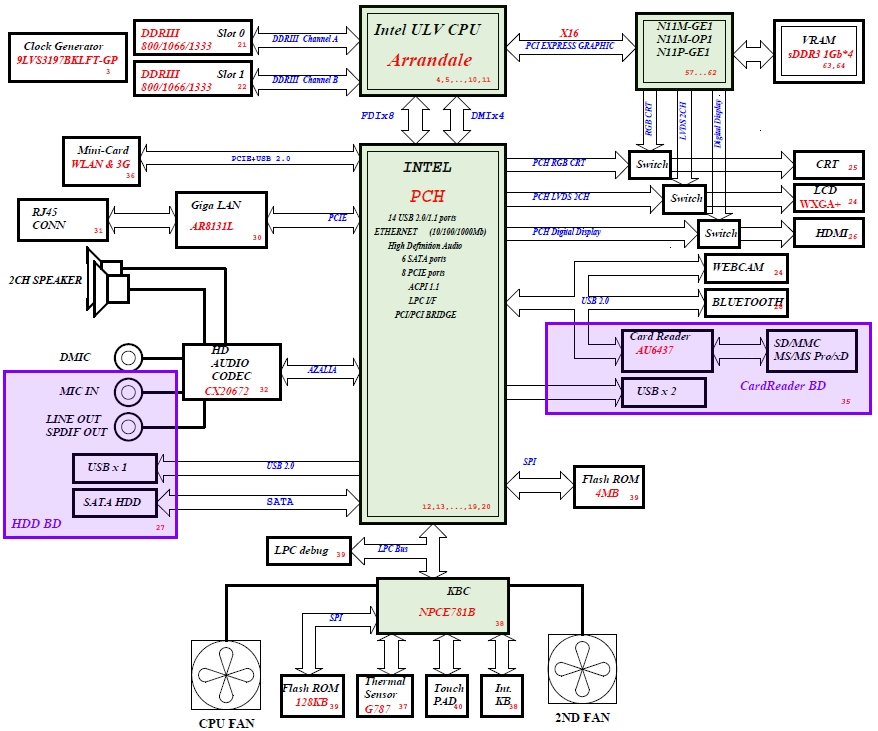

Major components

CPU :Intel Arrandale
Chipset :Intel PCH IbexPeak-M
VGA :UMA/DIS (Switchable)-nVIDIA N11M-GE1/N11M-OP1/N11P-GE1
Clock Generator :9LVS3197BKLFT-GP
Thermal Sensor :G787
Audio Codec :CX20672
KBC(Embeded Controller),SIO :NPCE781B
LAN Controller :AR8131L
CardBUS/1394/Cardreader Contr.:AU6437

<Power System>

RT8152D
RT8223B
RT8209E
RT8209E
RT8015A
RT9026
ISL88731A
ISL62881
RT8208A

File type : PDF
Language : English

Updated: 06-12-2010
