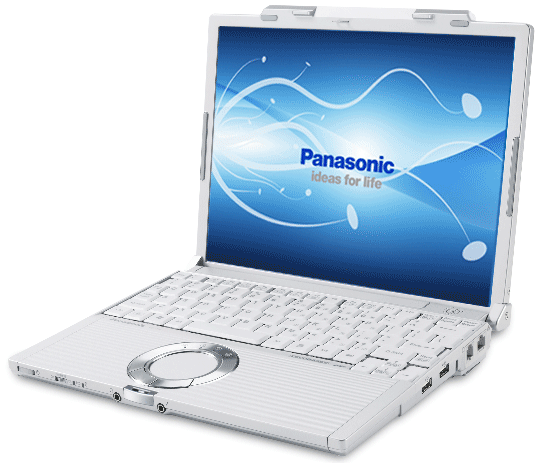

Panasonic Toughbook CF-T5, Laptop Motherboard Schematic diagram

Click on picture to enlarge

Price: US $18.75

This is the Motherboard Schematic Diagram and Service Manual for
Panasonic ToughtBook CF-T5 (Intel CalistogaSFF 945GMS / ICH7M / UMA Gfx)

Major components:

CPU : Intel Yonah ULV
Clock Generator : ICS9LPRS228CKLFT
Chipset :Intel CalistogaSFF 945GMS / ICH7M
Video: UMA
LAN: Realtec RTL8101L
EC(KBC)/SIO :Renesas M306KA
Audio codec: Sigmatel STAC9200
CardBus controller : Ricoh R5C811A

VCore: ISL6261
1.05V/2.5V : LTC3728
1.8V : LTC3728
1.5V : LTC3728
3.3V/5.0V : LTC3728
Charger : LTC4008

File type : PDF
Language : English

The Service Manual contains :

1. Specifications
2. Names and Functions of Parts

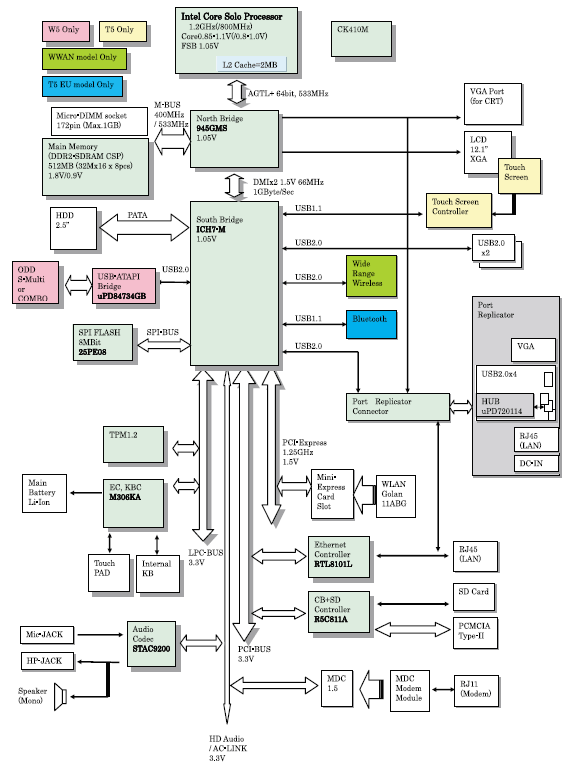

3. Block Diagram
4. Diagnosis Procedure
5. Power-On Self Test (Boot Check)
6. List of Error Codes <Only when the port replicator is connected>
7. Self Diagnosis Test
8. Wiring Connection Diagram
9. Disassembly/Reassembly
10. Exploded View
11. Replacement Parts List
Updated: 29-10-2010
