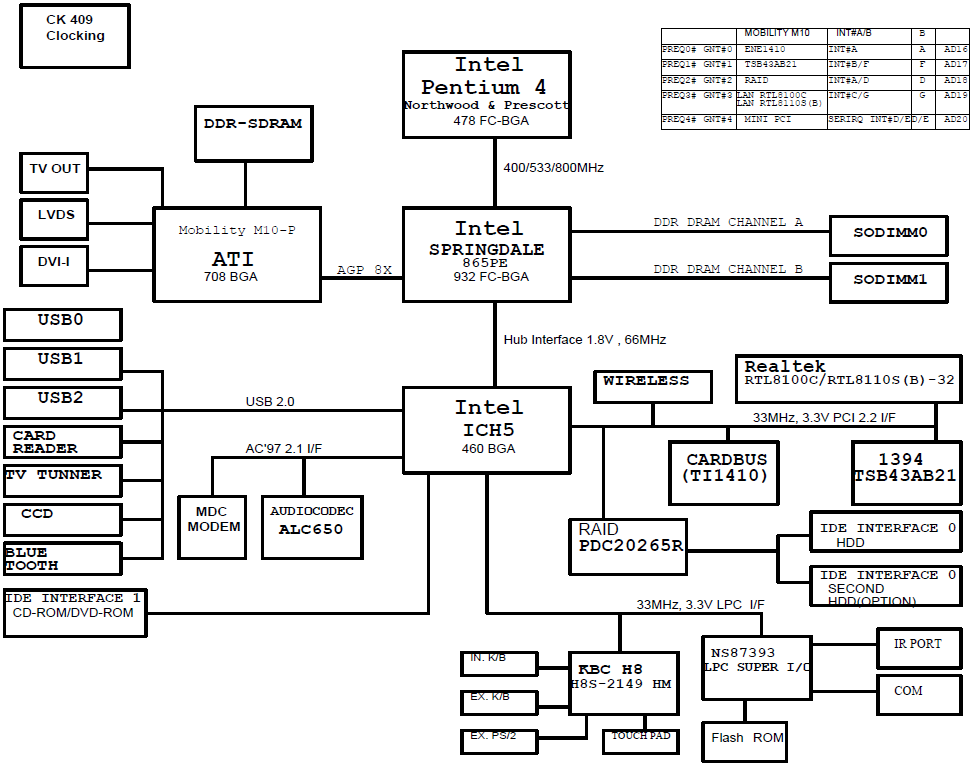

Clevo D-series D870P (D87P), Laptop Motherboard Schematic diagram
Click on picture to enlarge |
Major components: CPU : Intel Prescott or Northwood Chipset :Intel SPRINGDALE 865PE / ICH5 Video: ATI MOBILITY M10 KBC(Embeded Controller),SIO :H8/2149 , NS87393 Known motherboard part numbers: 71-D87P0-D03 File type : PDF Language : English |
---|
