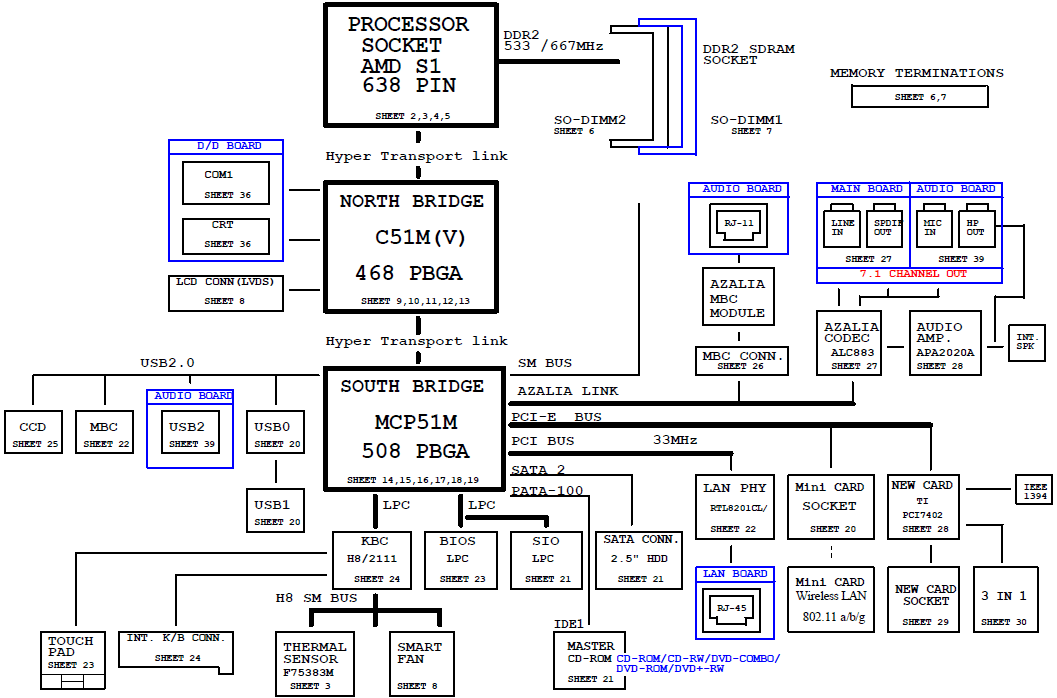

Clevo M-series M540JE, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 Major components: CPU : AMD AMD S1 Chipset :nVIDIA C51M(V) / MCP51M Video: UMA KBC(Embeded Controller),SIO : H8/2111 , PC87381 Known motherboard part numbers : 6-71-M54E0-002 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Major components:

CPU : AMD AMD S1
Chipset :nVIDIA C51M(V) / MCP51M
Video: UMA
KBC(Embeded Controller),SIO : H8/2111 , PC87381

Known motherboard part numbers :

6-71-M54E0-002

File type : PDF
Language : English

Updated: 12-07-2010
