Clevo M-series M665SR, Laptop Motherboard Schematic diagram

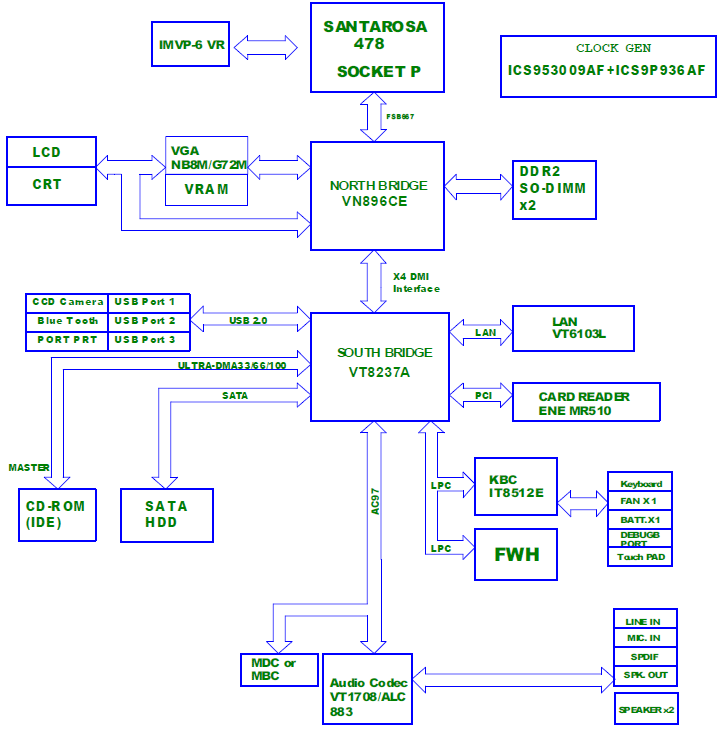

Click on picture to enlarge	Price: US $15.00 Major components: CPU : Intel Merom Chipset :VIA VN896CE / VIA VT8237A Video: UMA or nVidia NB8M/G72M KBC(Embeded Controller),SIO : IT8512E Known motherboard part numbers : 6-71-M6607-003 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Major components:

CPU : Intel Merom
Chipset :VIA VN896CE / VIA VT8237A
Video: UMA or nVidia NB8M/G72M
KBC(Embeded Controller),SIO : IT8512E

Known motherboard part numbers :
6-71-M6607-003

File type : PDF
Language : English

Updated: 12-07-2010
