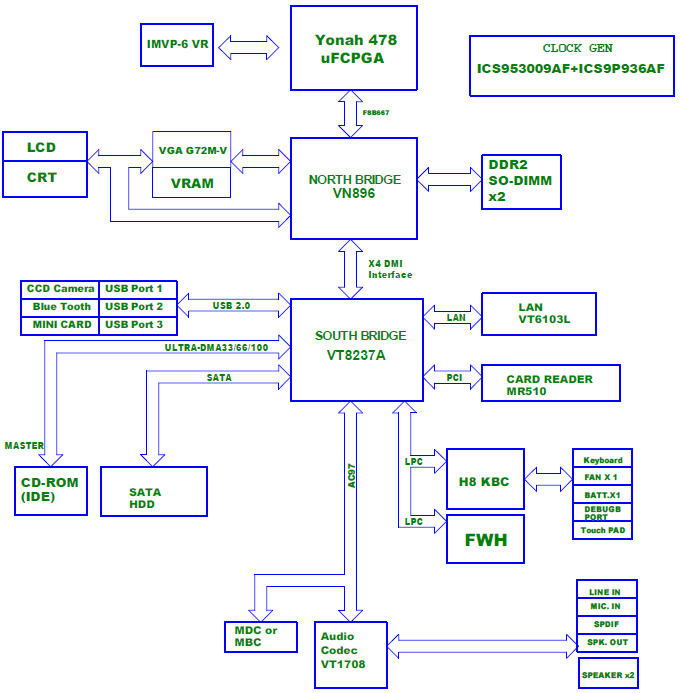

Clevo M-series M675SU, Laptop Motherboard Schematic diagram
Click on picture to enlarge |
Major components: CPU : Intel Yonah Chipset :VIA VN896 / VIA VT8237A Video: UMA or nVidia G72M-V KBC(Embeded Controller),SIO : H8/2111 (HD64F2111BVTE10BV) Known motherboard part numbers : 6-71-M67U8-004 6-71-M67U5-D01 File type : PDF Language : English |
---|
