Clevo M-series M710L, Laptop Motherboard Schematic diagram
Click on picture to enlarge |

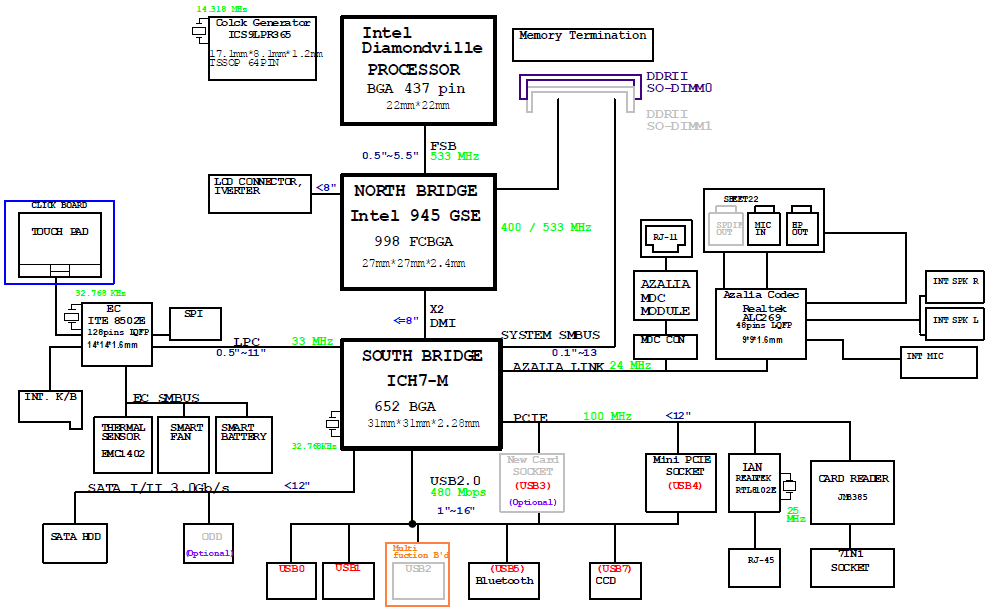

Included : Service Manual Major components: CPU : Intel Diamondville Chipset :Intel 945 GSE / ICH7-M Video: UMA KBC(Embeded Controller),SIO : ITE 8502E Known motherboard part numbers : 6-71-M71L0-D01A 6-77-M71L1-D01A File type : PDF Language : English |
---|
