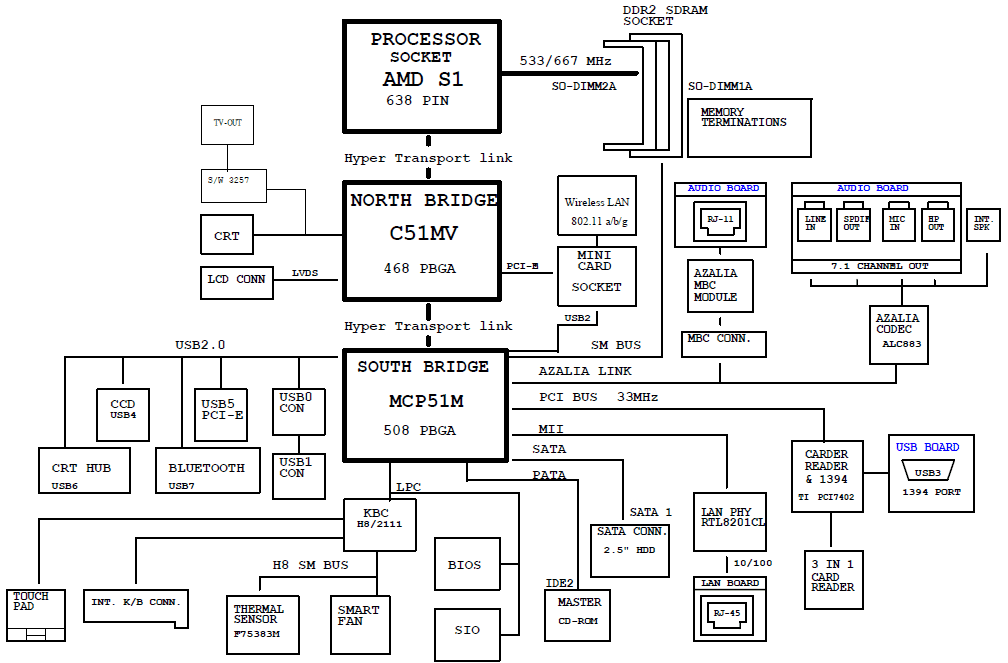

Clevo M-series M660JE, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 Included : Service Mannual Major components: CPU : AMD S1 Chipset :nVIDIA C51MV / MCP51M Video: UMA KBC(Embeded Controller),SIO : H8/2111 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Included : Service Mannual

Major components:

CPU : AMD S1
Chipset :nVIDIA C51MV / MCP51M
Video: UMA
KBC(Embeded Controller),SIO : H8/2111

File type : PDF
Language : English

Updated: 12-07-2010

Back
