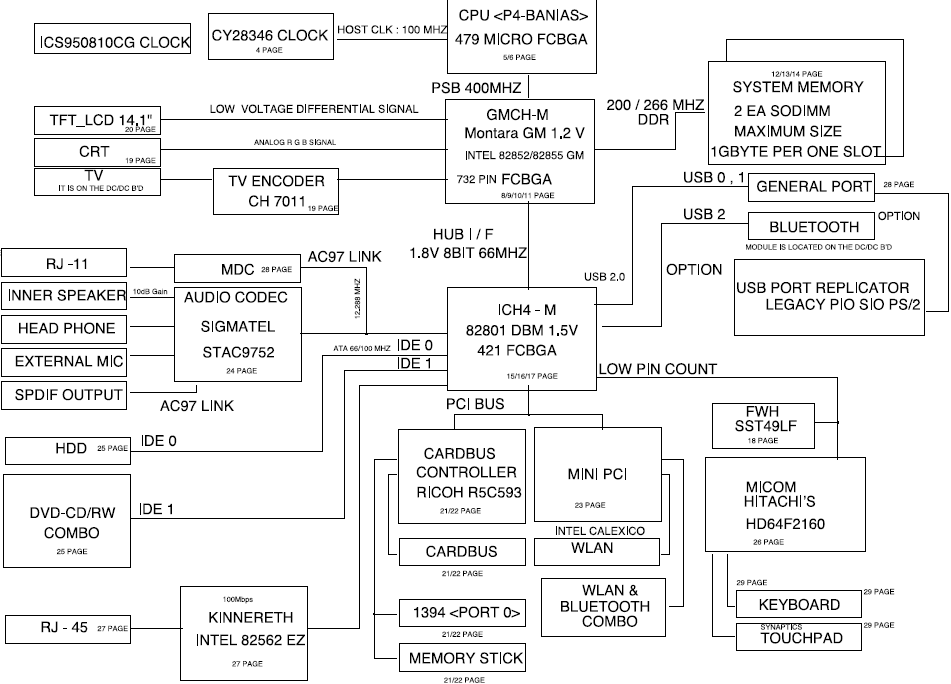

Gateway 200 Series 200ARC, Laptop Motherboard Schematic diagram
|
|
Price: US $9.75 CPU :Intel PM Banias North Bridge :Intel Montara-GT South Bridge :Intel ICH4-M VGA :UMA Clock Generator :ICS950810CG / CY28346 Audio Codec :ST9752 Audio Amplifier :TPA6017A2 KBC(Embeded Controller),SIO :Micom HD64F2160 LAN Controller :Intel 82562 CardBUS/1394/Cardreader Contr.:R5C593 Total Pages : 122 File tipe : PDF Language : English |
|---|
Click on picture to enlarge
