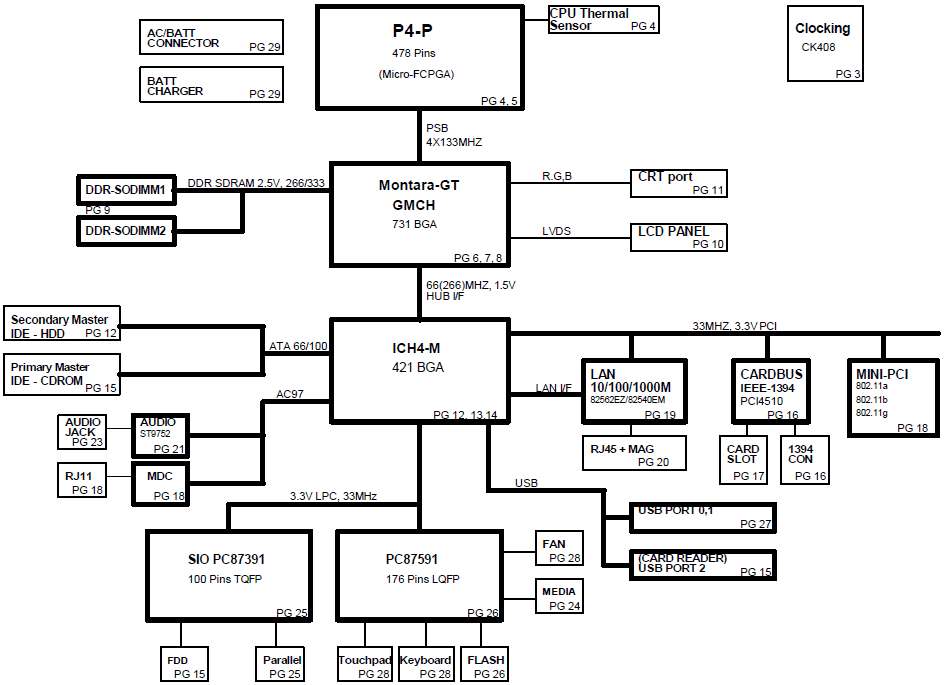

Gateway 400 Series 400SD4, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $7.50 Major components CPU :Intel P4-P North Bridge :Intel Montara-GT South Bridge :Intel ICH4-M VGA :UMA Clock Generator :ICS950810 Audio Codec :ST9752 Audio Amplifier :TPA0312 KBC(Embeded Controller),SIO :PC87591 , PC87391 LAN Controller :Intel 82562EZ/82540EM CardBUS/1394/Cardreader Contr.:PCI4510 <Power System> ISL6207 ISL6207 ISL6207 ISL6207 ISL6247 SC1486 MIC5247 MIC5247 NCP1117 MAX1632 MAX1772EEI MAX8878 MAX4173 Total Pages : 33 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $7.50

Major components

CPU :Intel P4-P
North Bridge :Intel Montara-GT
South Bridge :Intel ICH4-M
VGA :UMA
Clock Generator :ICS950810
Audio Codec :ST9752
Audio Amplifier :TPA0312
KBC(Embeded Controller),SIO :PC87591 , PC87391
LAN Controller :Intel 82562EZ/82540EM
CardBUS/1394/Cardreader Contr.:PCI4510

<Power System>

ISL6207
ISL6207
ISL6207
ISL6207
ISL6247
SC1486
MIC5247
MIC5247
NCP1117
MAX1632
MAX1772EEI
MAX8878
MAX4173

Total Pages : 33
File tipe : PDF
Language : English

Updated: 30-04-2010
