Gateway 400 Series 400VTX, Laptop Motherboard Schematic diagram

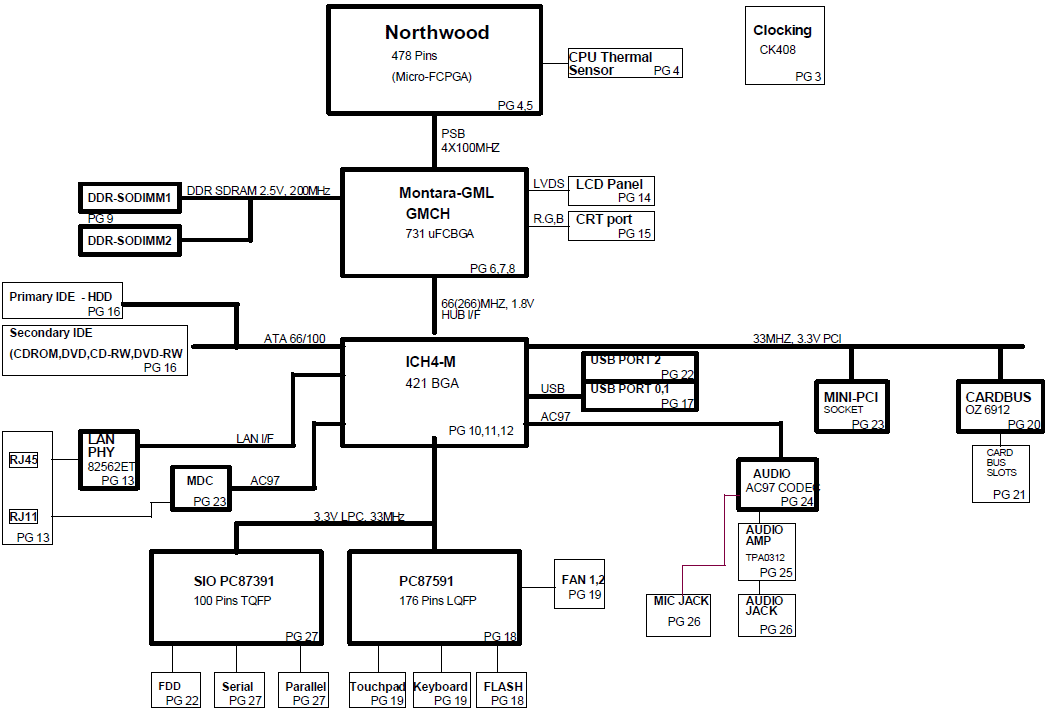

Click on picture to enlarge	Price: US $7.50 Major components CPU :Intel Northwood North Bridge :Intel Montara-GML South Bridge :Intel ICH4-M VGA :UMA Clock Generator :ICS950810BGT / CYPRESS W320 Thermal Sensor :MIC280 Audio Codec :ALC202 Audio Amplifier :TPA0312 KBC(Embeded Controller),SIO :PC87591 , PC87391 LAN Controller :Intel 82562ET CardBUS/1394/Cardreader Contr.:OZ 6912 <Power System> SC1474 MAX1714A SC1486 MAX1632 Total Pages : 32 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $7.50

Major components

CPU :Intel Northwood
North Bridge :Intel Montara-GML
South Bridge :Intel ICH4-M
VGA :UMA
Clock Generator :ICS950810BGT / CYPRESS W320
Thermal Sensor :MIC280
Audio Codec :ALC202
Audio Amplifier :TPA0312
KBC(Embeded Controller),SIO :PC87591 , PC87391
LAN Controller :Intel 82562ET
CardBUS/1394/Cardreader Contr.:OZ 6912

<Power System>

SC1474
MAX1714A
SC1486
MAX1632

Total Pages : 32
File tipe : PDF
Language : English

Updated: 30-04-2010
