Gateway M200 Series M275, Tablet PC Motherboard Schematic diagram
|
|
Price: US $11.25 CPU :Intel BANIAS / DOTHAN Thermal Sensor :MAX6648MUA Chipset :Intel Montra-GME // ICH4-M Video :UMA Clock Generator :CY28346 (ICS950810) Audio Codec :Sigmatel 9752 Audio Amplifier :TPA0312 KBC(Embeded Controller),SIO :PC87591, PC87391 LAN Controller :Intel 82562ET Card BUS,IEEE 1394, etc... :RICOH R5C593 <Power System> 74HCT237 MAX1772EEI MAX1907 MAX1845 SC338 LP2996 MAX1632 Total Pages : 34 File type : PDF Language : English |
|---|

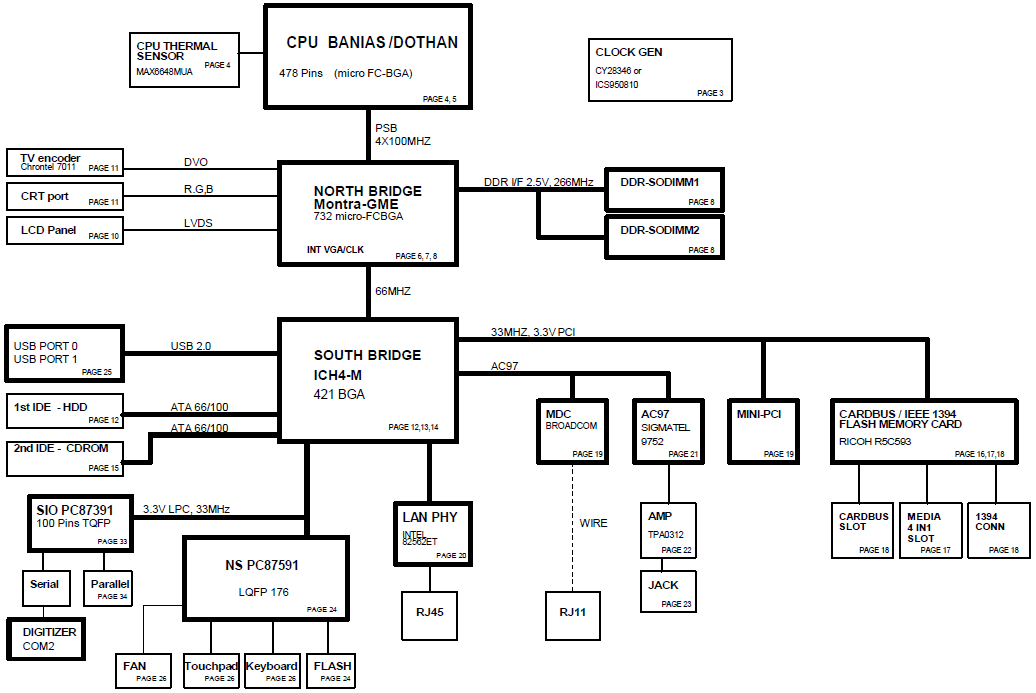

Click on picture to enlarge
