Gateway M300 Series M305CRV, Laptop Motherboard Schematic diagram
|
|
Price: US $9.75 CPU :Intel Northwood Thermal Sensor :MIC280 Chipset :Intel Montara-GML // ICH4-M Video :UMA Clock Generator :ICS950810BGT (CYPRESS W320) Audio Codec :ALC202 Audio Amplifier :TPA0312 KBC(Embeded Controller),SIO :PC87591, PC87391 LAN Controller :82562ET Card BUS,IEEE 1394, etc... :OZ 6912 <Power System> SC1474 MAX1714A SC1486 MAX1632 Total Pages : 32 File type : PDF Language : English |
|---|

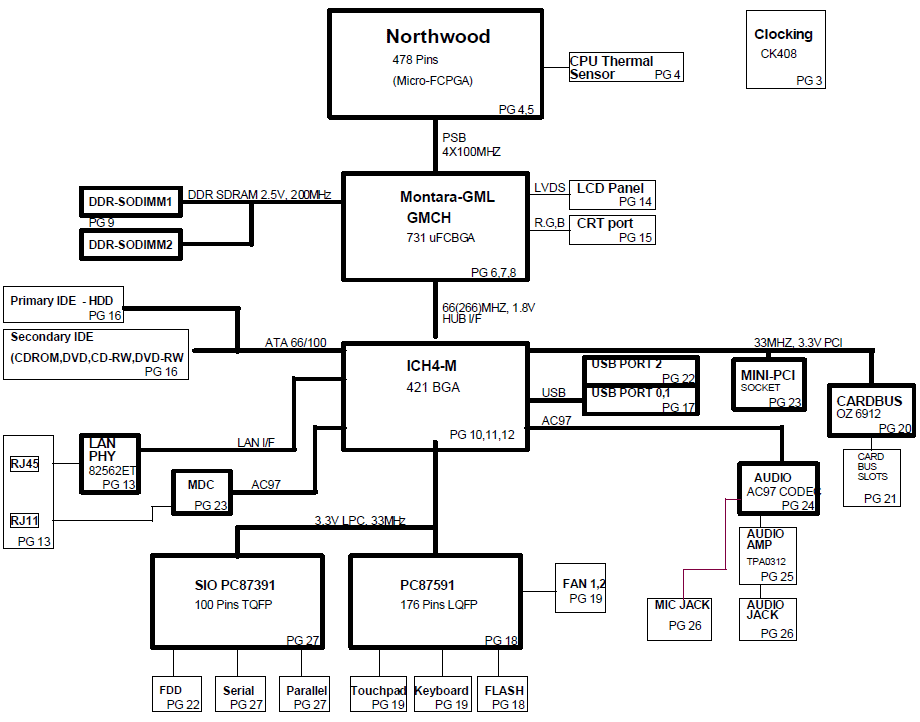

Click on picture to enlarge
