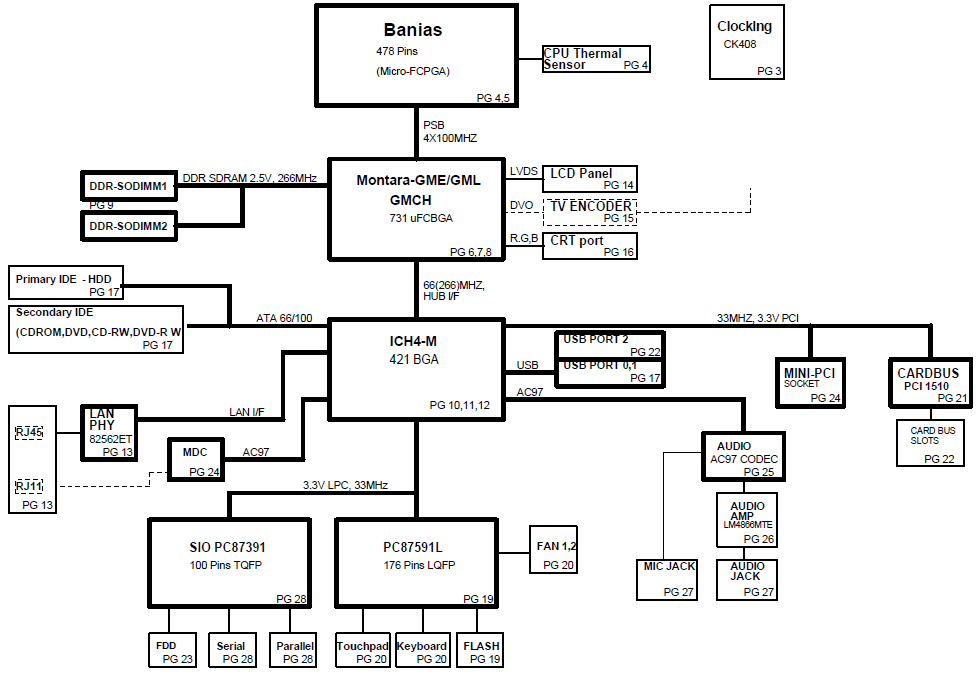

Gateway M400 Series M405, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $9.75 Major components CPU :Intel Banias Thermal Sensor :MAX6648MUA Chipset :Intel Montara-GME/GML // ICH4-M Video :UMA Clock Generator :ICS950810BGT Audio Codec :ALC202/203/250 Audio Amplifier :LM4866MTE KBC(Embeded Controller),SIO :PC87391, PC87591L LAN Controller :82562ET Card BUS,IEEE 1394, etc... :PCI 1510 <Power System> MAX1772EEI MAX1907 SC1470 SC338 SC1470 LP2996 MAX1632 SI9181 Total Pages : 35 File type : PDF Language : English

Click on picture to enlarge

Price: US $9.75

Major components

CPU :Intel Banias
Thermal Sensor :MAX6648MUA
Chipset :Intel Montara-GME/GML // ICH4-M
Video :UMA
Clock Generator :ICS950810BGT
Audio Codec :ALC202/203/250
Audio Amplifier :LM4866MTE
KBC(Embeded Controller),SIO :PC87391, PC87591L
LAN Controller :82562ET
Card BUS,IEEE 1394, etc... :PCI 1510

<Power System>

MAX1772EEI
MAX1907
SC1470
SC338
SC1470
LP2996
MAX1632
SI9181

Total Pages : 35
File type : PDF
Language : English
