Gateway M500 Series M505, Laptop Motherboard Schematic diagram
|
|
Price: US $9.75 CPU :Intel Banias Thermal Sensor :G768D,MAX6509 Chipset :Intel Odem 855PM / ICH4-M Video :ATI M10-CSP64 Clock Generator :ICS 94239 Audio Codec :ALC655 Audio Amplifier :G1421 KBC(Embeded Controller),SIO :NS87591, LPC47N227 LAN Controller :RTL 8101L Card BUS,IEEE 1394, etc... :TI 4510 <Power System> MAX1909 ISL6218 SC2595 MAX4230 MAX1999 MAX1715 SC2595 Total Pages : 49 File type : PDF Language : English |
|---|

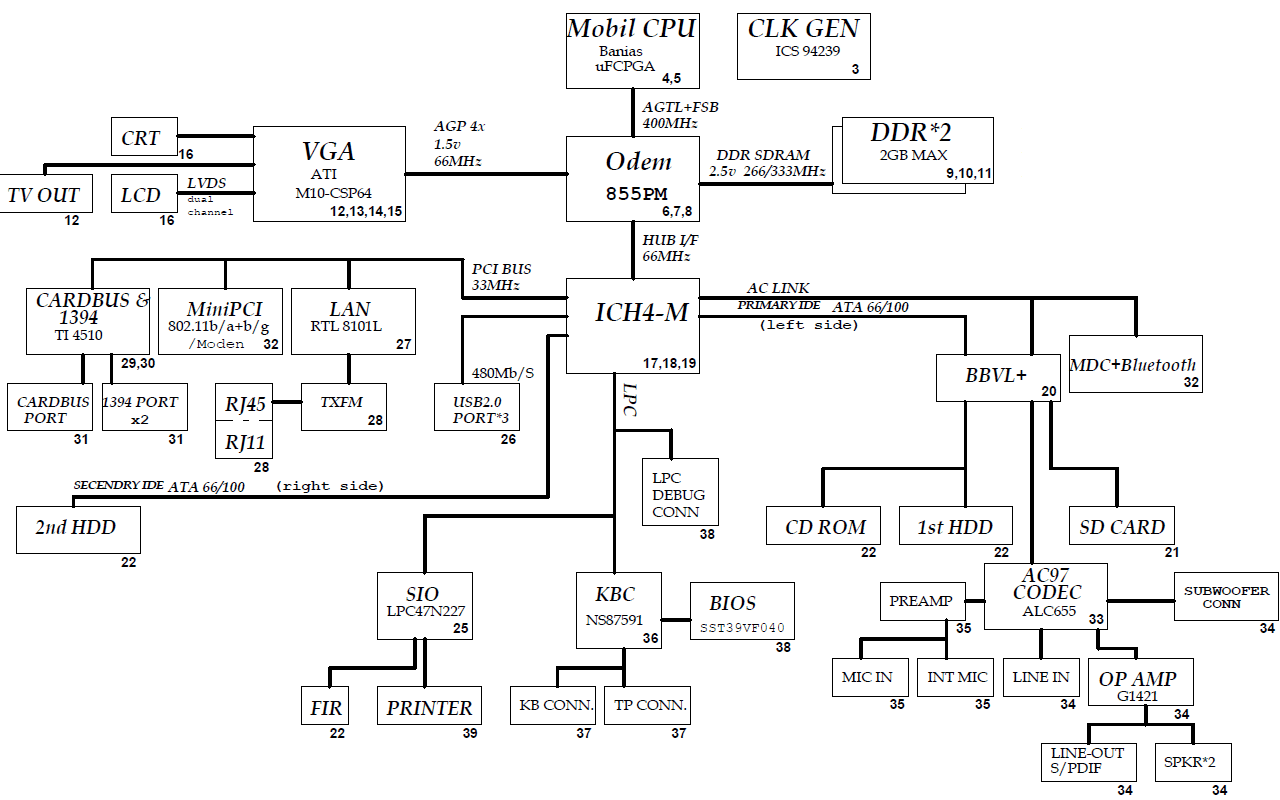

Click on picture to enlarge
