Toshiba Satellite PRO L100-132, Laptop Motherboard Schematic diagram

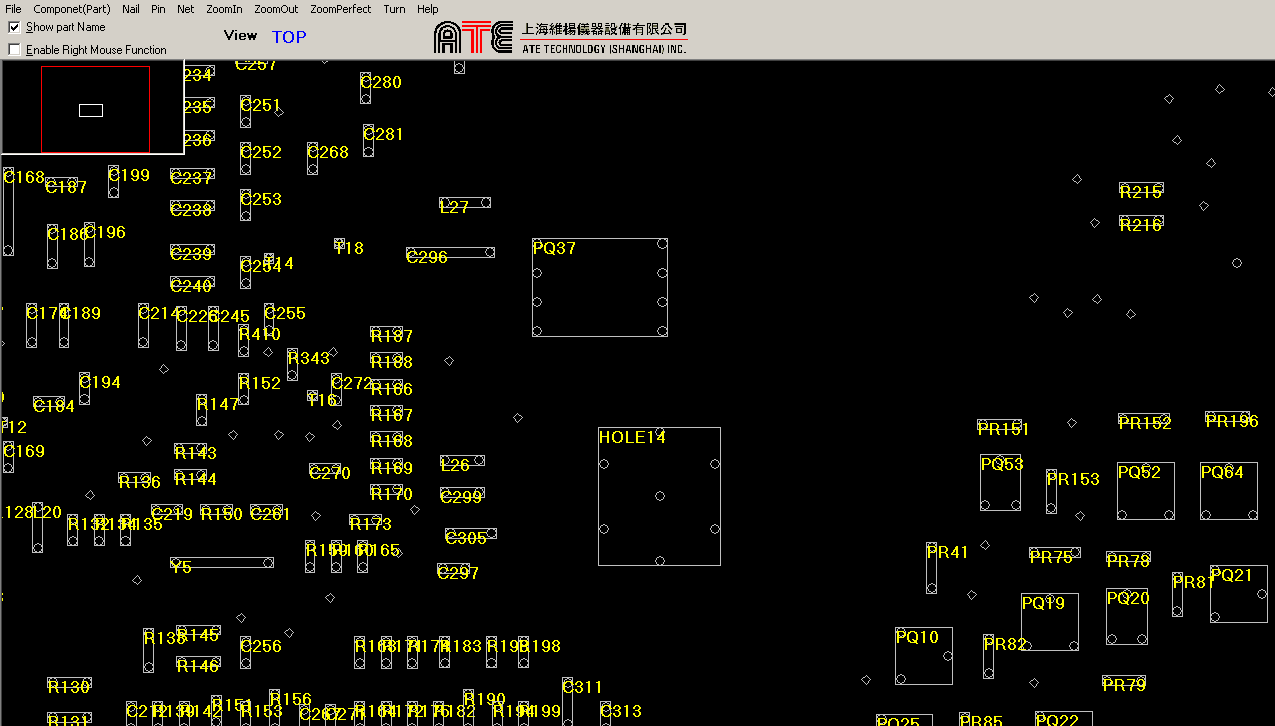

Click on picture to enlarge	Price: US $9.75 *Board view included. Locate any component, any signal or pin in few seconds! (see picture) Major components CPU :Intel CELERON-M/PENTIUM-M Thermal sensor :ADM1032AR Chipset :ATI RC420MB/RC420MD // ATi SB450C VGA :UMA Clock Generator :CS951413CGLFT Audio Codec :Conexant 20468-51 Audio Amplifier :MAX9750 KBC(Embeded Controller),SIO :PC97551 LAN Controller :RTL8100CL CardBUS/1394/Cardreader Contr.:PCI1510A, Modem :Conexant 20493-51 <Power System> SC4215 SC4215 SC1470 MAX8724 NCP5214 SI9183 NCP5214 MAX1999 SC451 Total Pages : 27 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $9.75

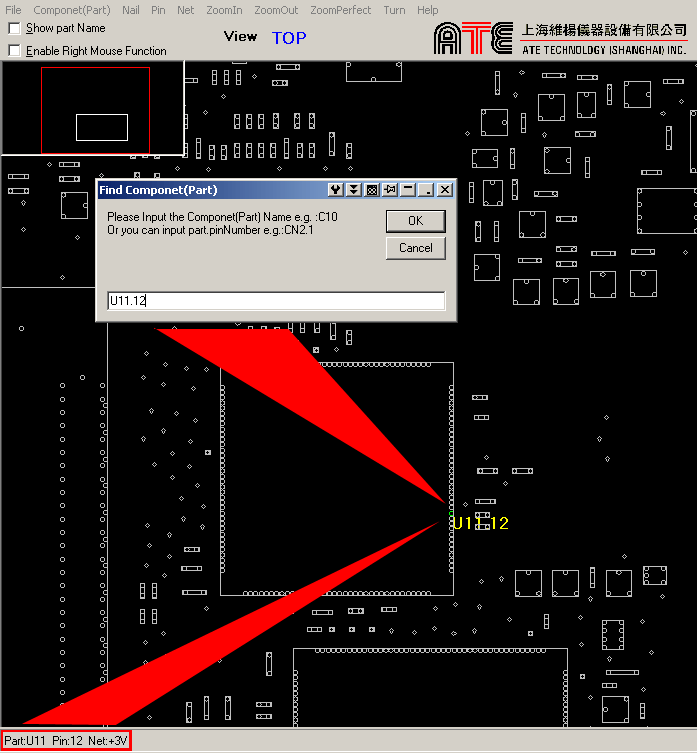

*Board view included. Locate any component, any signal or pin
in few seconds! (see picture)

Major components

CPU :Intel CELERON-M/PENTIUM-M
Thermal sensor :ADM1032AR
Chipset :ATI RC420MB/RC420MD // ATi SB450C
VGA :UMA
Clock Generator :CS951413CGLFT
Audio Codec :Conexant 20468-51
Audio Amplifier :MAX9750
KBC(Embeded Controller),SIO :PC97551
LAN Controller :RTL8100CL
CardBUS/1394/Cardreader Contr.:PCI1510A,
Modem :Conexant 20493-51

<Power System>

SC4215
SC4215
SC1470
MAX8724
NCP5214
SI9183
NCP5214
MAX1999
SC451

Total Pages : 27
File tipe : PDF
Language : English

Updated: 07-04-2010
