Quanta OEM AT7, Laptop Motherboard Schematic diagram
Click on picture to enlarge |

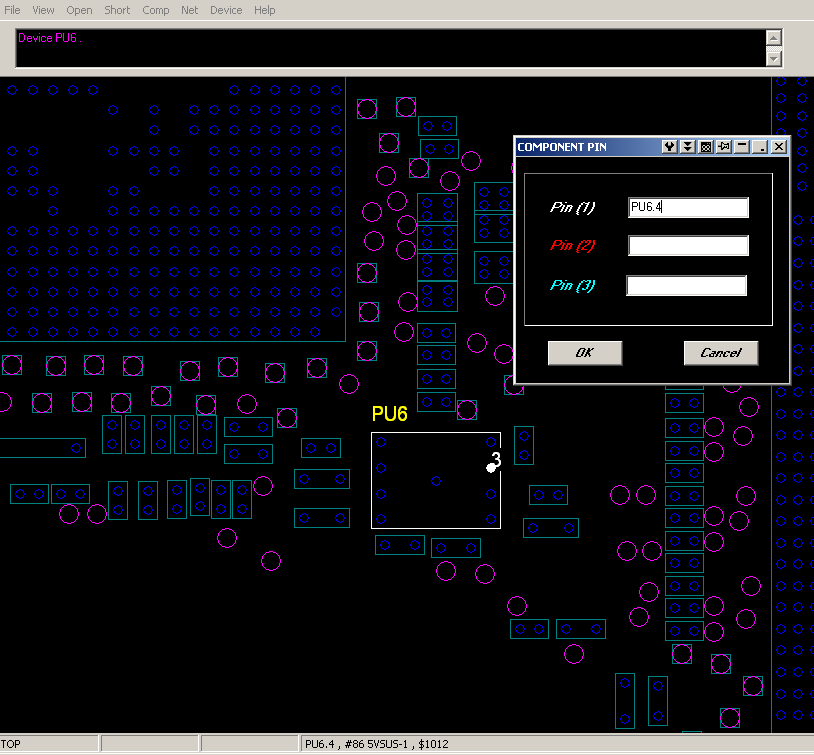

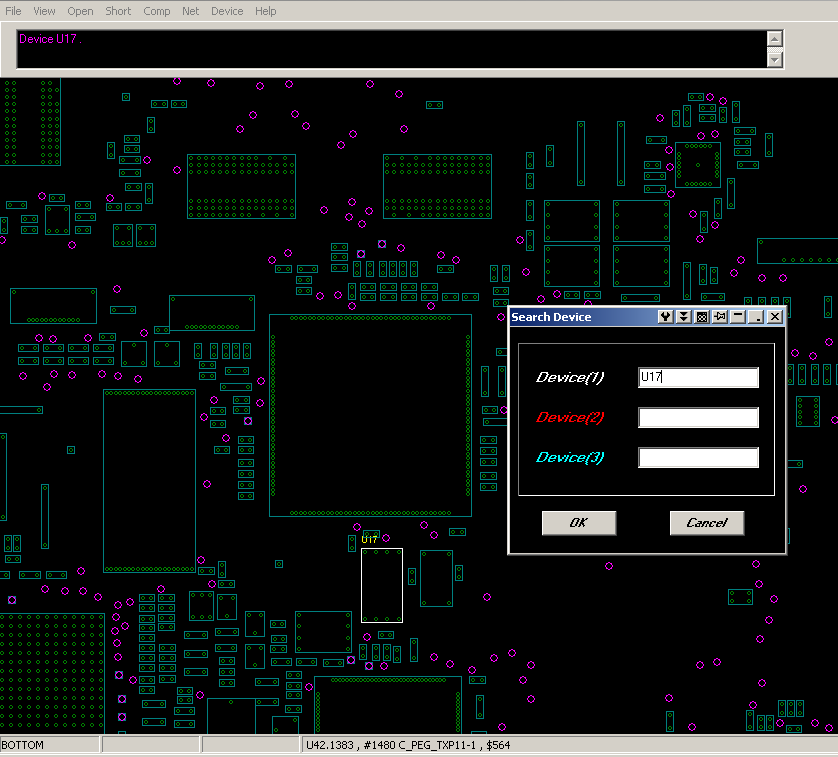

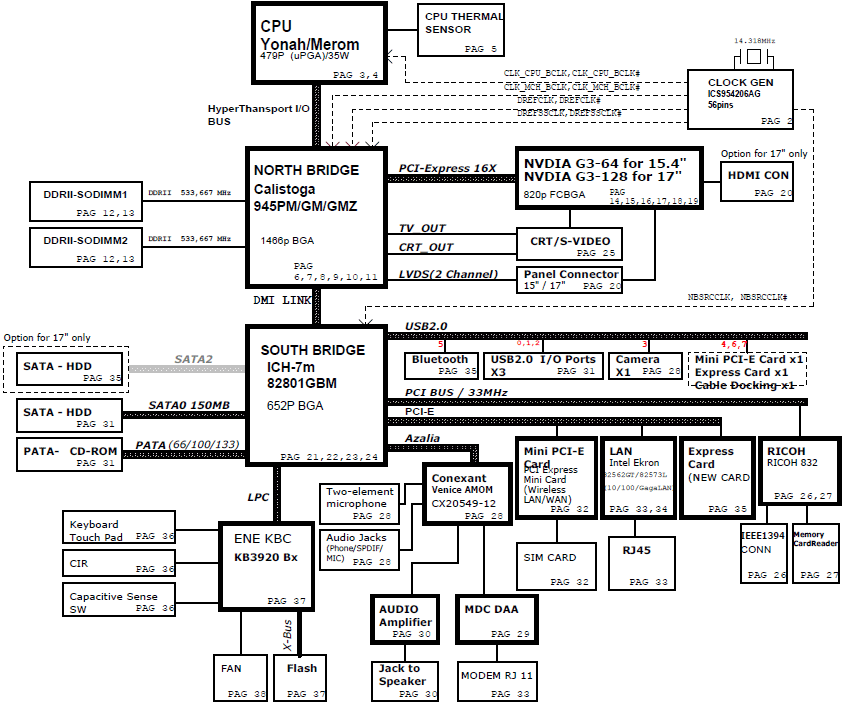

Included: **"Board view" file and viewer. You will be able to locate any component,pin,test point, etc. in few seconds! "Board view"? How it works? Download and try free sample! No installation needed File not found Major components CPU :Intel Yonah/Merom Chipset :Intel Calistoga 945PM/GM/GMZ // ICH-7m 82801GBM VGA :UMA or DIS NVDIA G3-64 / NVDIA G3-128 Clock Generator :ICS954206AG Audio Codec :CX20549-12 Audio Amplifier :TPA0312 KBC(Embeded Controller),SIO :ENE KB3920 LAN Controller :82562GT/82573L CardBUS/1394/Cardreader Contr.:RICOH 832 <Power System> MAX8771 MAX1993ETG MAX8743EEI+ TPS51116REGR G966-25ADJ MAX8734A G966-25ADJ MAX8724 Total Pages : 45 File tipe : PDF Language : English |
---|
