Fujitsu-Siemens ESPRIMO Mobile M9400, Laptop Motherboard Schematic diagram

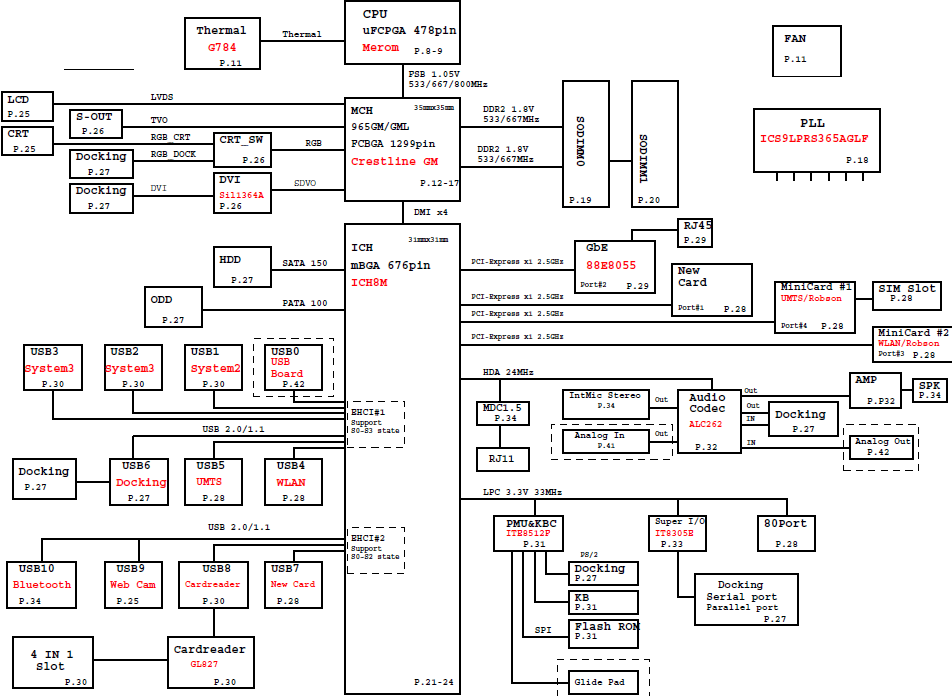

Click on picture to enlarge	Price: US $15.00 Included: "Board view" file + software (viewer). Using this tool you will be able to find any component, pin or signal on your motherboard in a few seconds! CPU : Intel Merom Clock Generator :ICS9LPRS365AGLF Chipset : Intel 965GM/GML // ICH8M Video: UMA Thermal Sensor :G784 Audio :ALC262,G1412Q4U,G1432Q5U KBC(Embeded Controller),SIO :ITE8512F,IT8305E LAN Controller :88E8055 Card Bus, etc. :GL827 <Power System> MAX8770GTL+ MAX8724ETI G680LT1 TPS51120RHB SC339SKTRT SC339SKTRT TPS51117RGYR TPS51100 TPS51117RGYR SC472BMLTRT SYSTEM POWER ON/OFF SEQUENCE diagrams are included Total Pages :43 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Included:

*"Board view" file + software (viewer). Using this tool you will be able
to find any component, pin or signal on your motherboard in a few seconds!

CPU : Intel Merom
Clock Generator :ICS9LPRS365AGLF
Chipset : Intel 965GM/GML // ICH8M
Video: UMA
Thermal Sensor :G784
Audio :ALC262,G1412Q4U,G1432Q5U
KBC(Embeded Controller),SIO :ITE8512F,IT8305E
LAN Controller :88E8055
Card Bus, etc. :GL827

<Power System>

MAX8770GTL+
MAX8724ETI
G680LT1
TPS51120RHB
SC339SKTRT
SC339SKTRT
TPS51117RGYR
TPS51100
TPS51117RGYR
SC472BMLTRT

* SYSTEM POWER ON/OFF SEQUENCE diagrams are included

Total Pages :43
File type : PDF
Language : English

Updated: 30-07-2010
