Asus F3-series F3T, Motherboard Schematic diagram
Click on picture to enlarge |

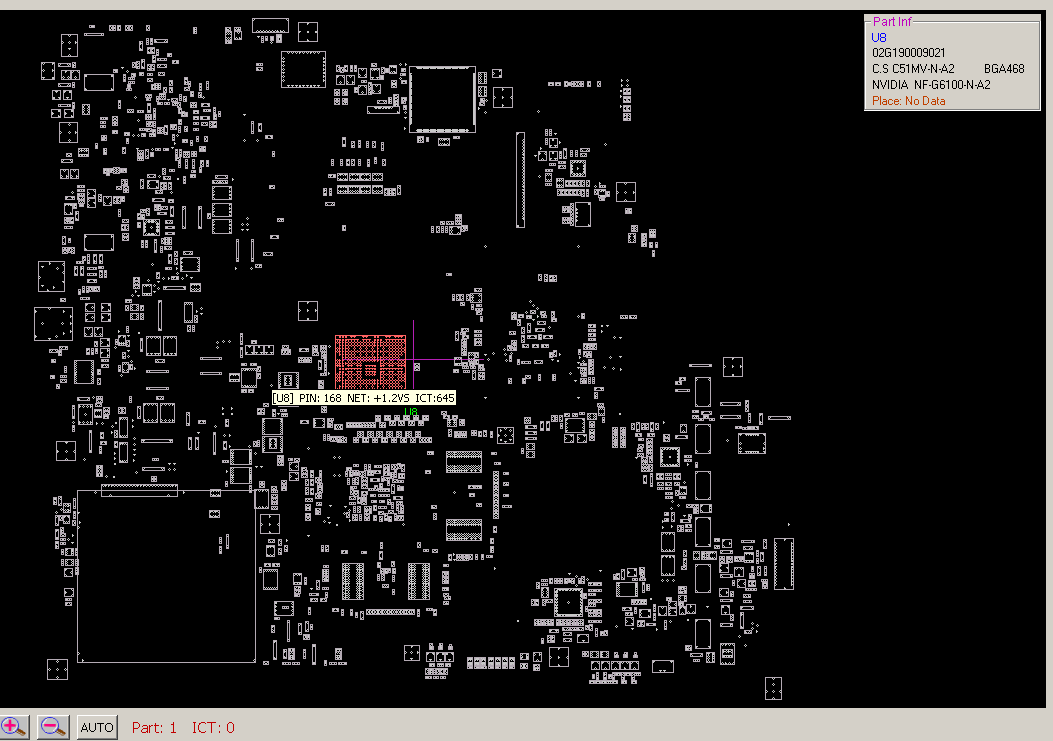

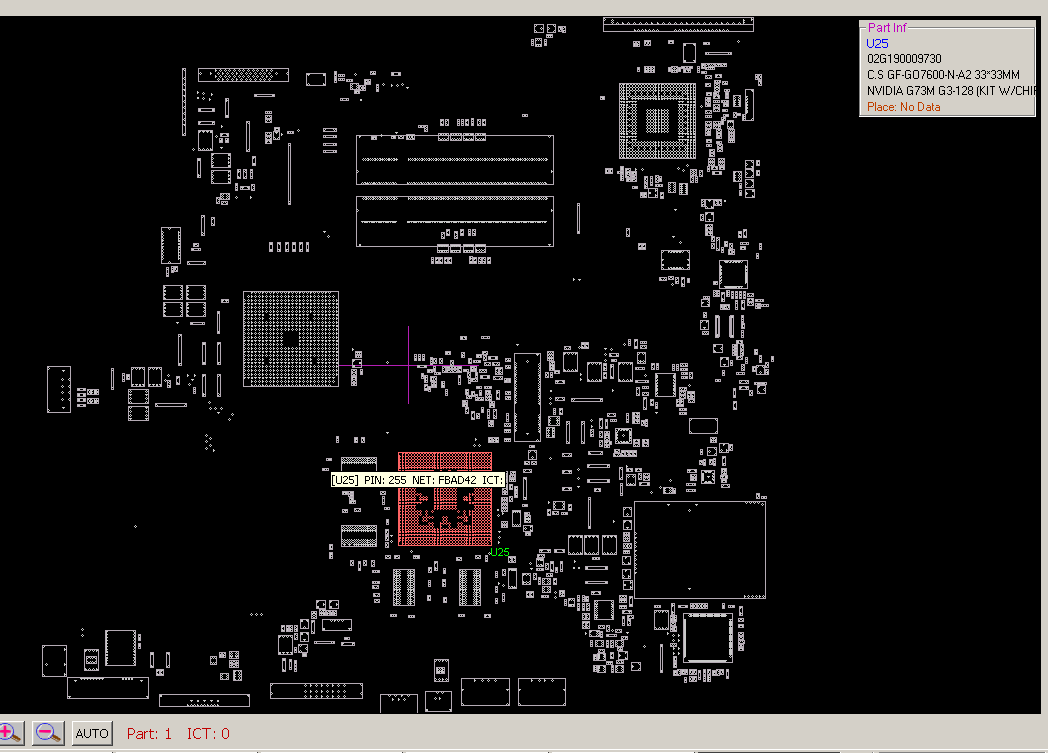

*Board view included. Locate any component, any signal or a component pinout in few seconds! !!! Power Flow diagram included Major components CPU :AMD S1g1 Thermal Sensor : Chipset : C51MV / MCP51 Video: G73M Clock Generator : Audio Codec : ALC 660 Audio Amplifier :TPA0212PWPRG4 KBC(Embeded Controller),SIO :EC IT8510E LAN Controller :MARVELL 88E1116 Card BUS etc...:R5C832 <Power System> SI4925BDY MIC5235 F02JK2E LM4040BIM TPS51020 SI9183 MAX8632 MAX8632 SI9183 MAX1844 MAX8760 MAX8725 TPC8107 Total Pages :74 File type : PDF Language : English |
---|
