Asus Z9200-series Z92K, Motherboard Schematic diagram
Click on picture to enlarge |

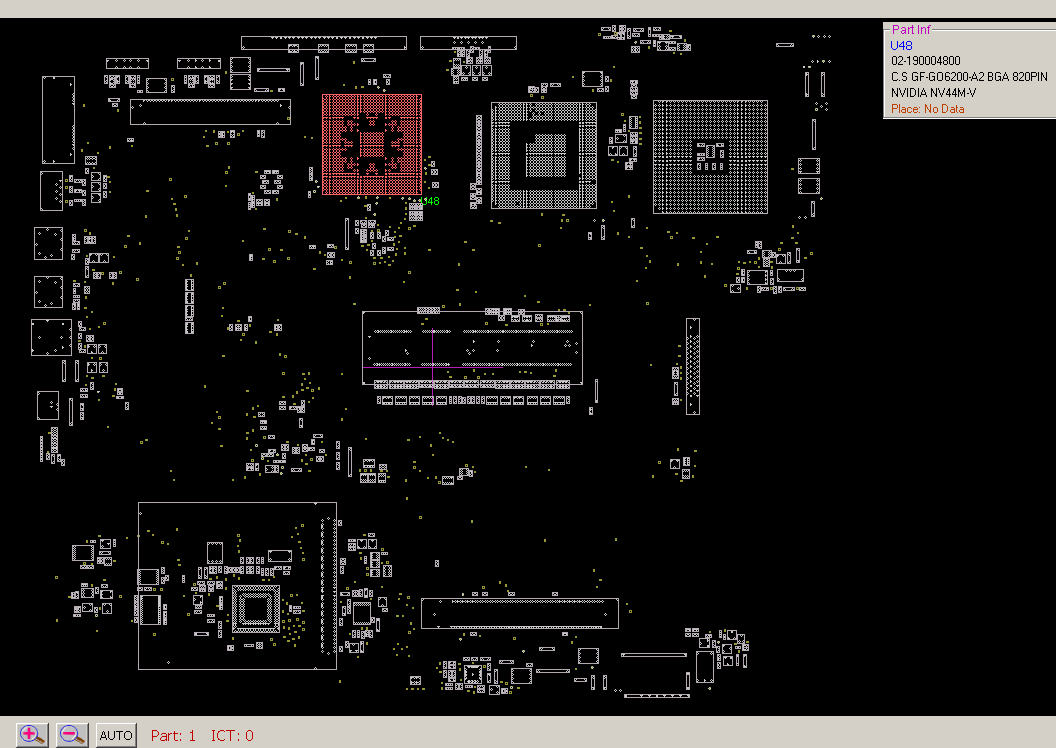

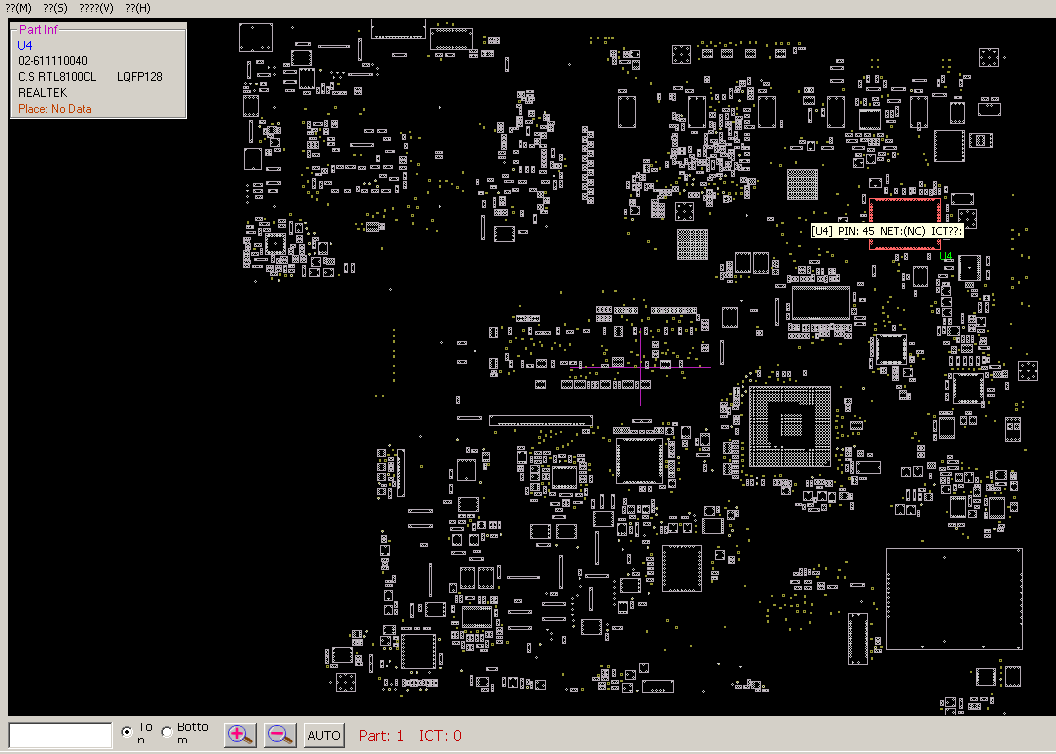

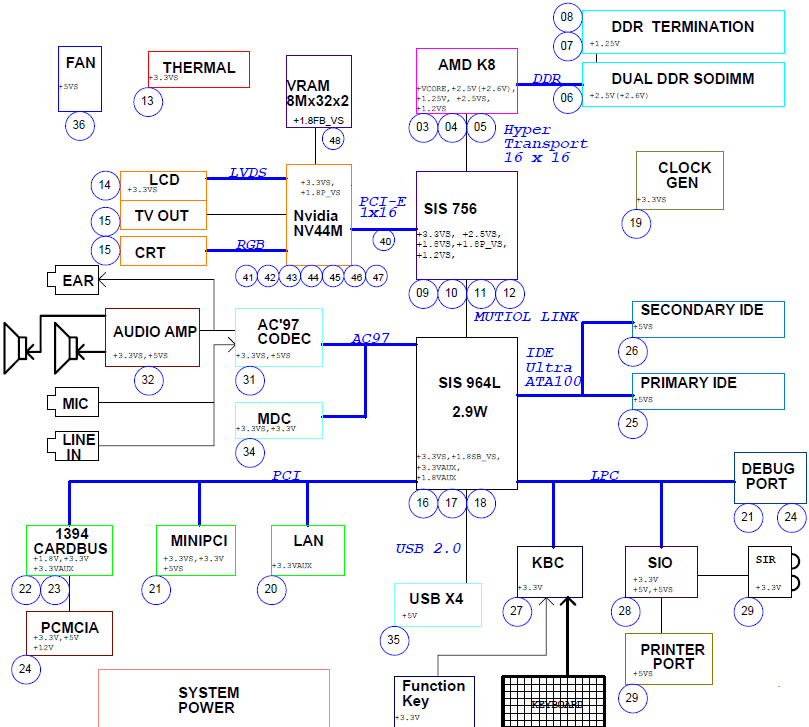

*Board view included. Locate any component, any signal or a component pinout in few seconds! !!! Power Flow Chart and Power On Sequence included !!! Major components CPU :AMD K8 Thermal Sensor : Chipset :SiS756 / SIS964L Video: nVidia NV44 Clock Generator :ICS953805BF Audio Codec :ALC650 Audio Amplifier : KBC(Embeded Controller),SIO :M38857 / LPC47N417 LAN Controller :RTL8100CL Card BUS etc. .... :R5C593 <Power System> TPC8107 FD6JK3TP 78L05 F02JK2E LM4040BIM TPS51020 SI9183 SI9183 MIC5235BM5 MAX8743EEI LM358ADR RT9173ACL5 MAX1544ETL MAX1844EEP PIC16C54B/C MB39A119 TPC8107 Total Pages :64 File type : PDF Language : English |
---|
