Asus A3000-series A3Ne, Motherboard Schematic diagram
Click on picture to enlarge |

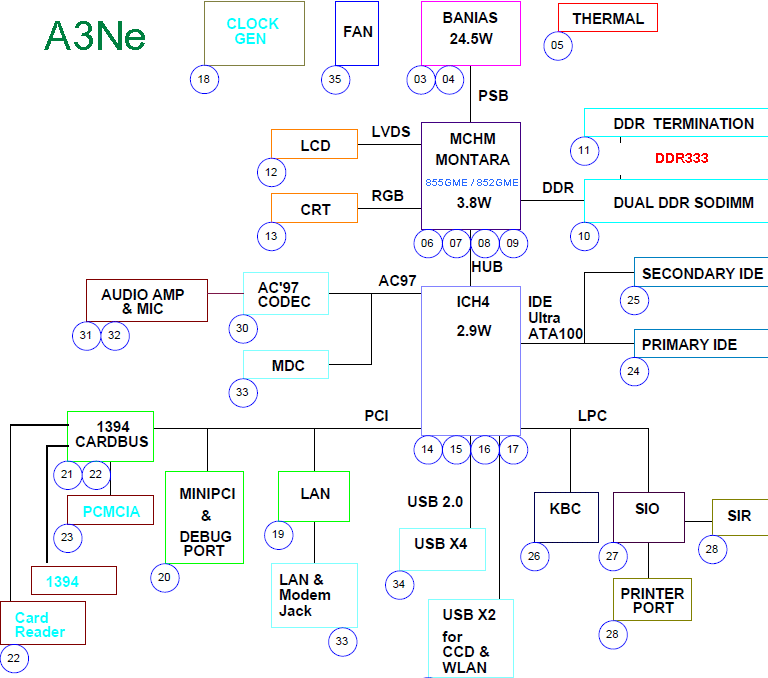

!!! Board view included. Locate any component and get the comprehensive information about it in few seconds !!! !!! Power Diagram included !!! Major components CPU :Intel Celeron/ Banias/ Dothan(400) Thermal Sensor :MAX6657 Chipset :Intel Montara 855GME(852GME) / ICH6-M Clock Generator :ICS950815 Audio Codec :ALC650 Audio Amplifier :G1420 KBC(Embeded Controller),SIO :M38857 / ITE8705 LAN Controller :RTL8100CL Card BUS etc. .... :R5C593 <Power System> L78L05ACUTR LM393MX PIC16C54C LM358ADR TL494CD LTC3728LX L78L12ACUTR TPS5130 CM8562 MIC5233BM5 MIC37101 SI9183DT MAX1987ETM Total Pages :55 File type : PDF Language : English |
---|
