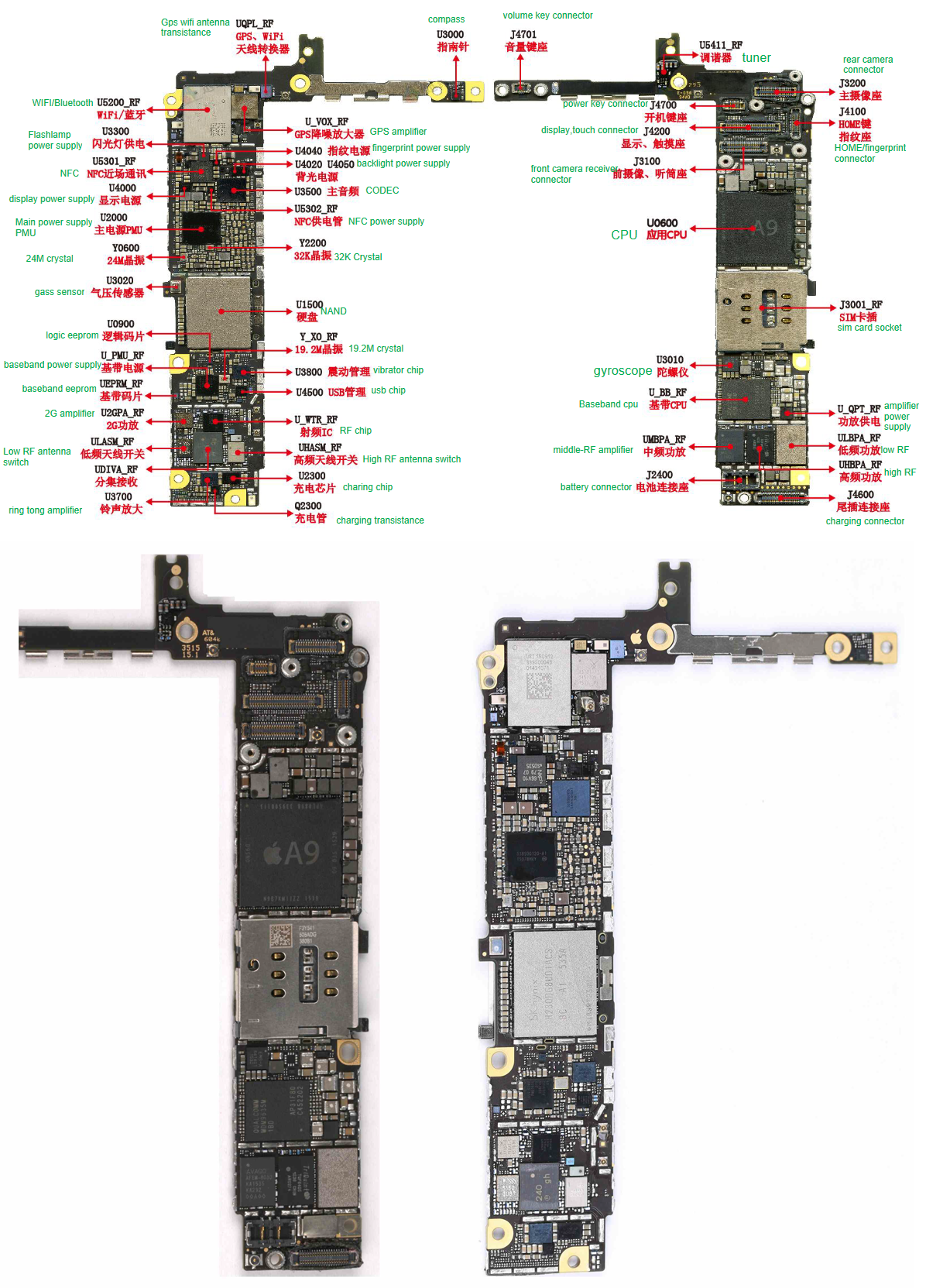

Apple MLB 820-00040, Logic Board / Motherboard BoardView file, Silkscreen and Schematic diagram
|
|

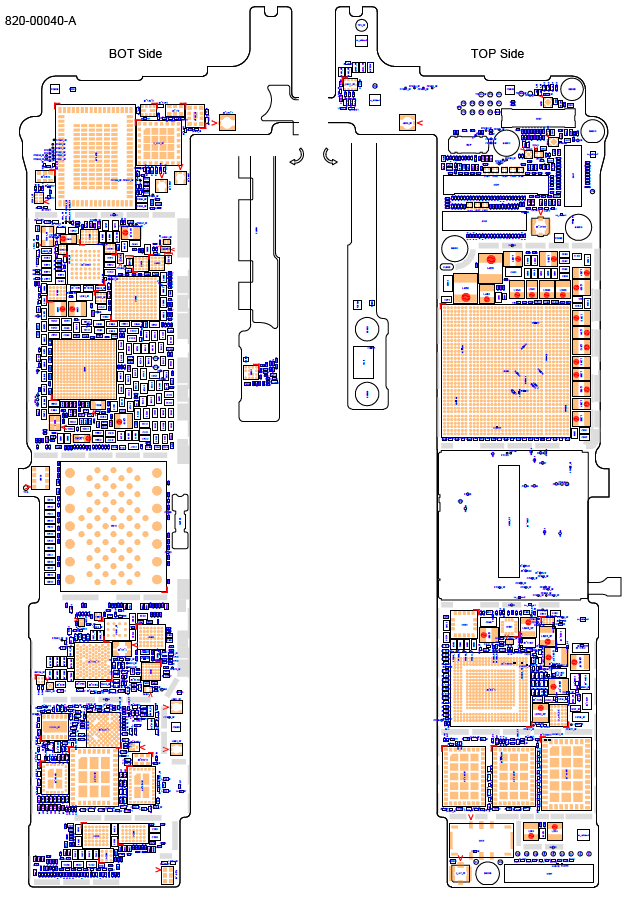

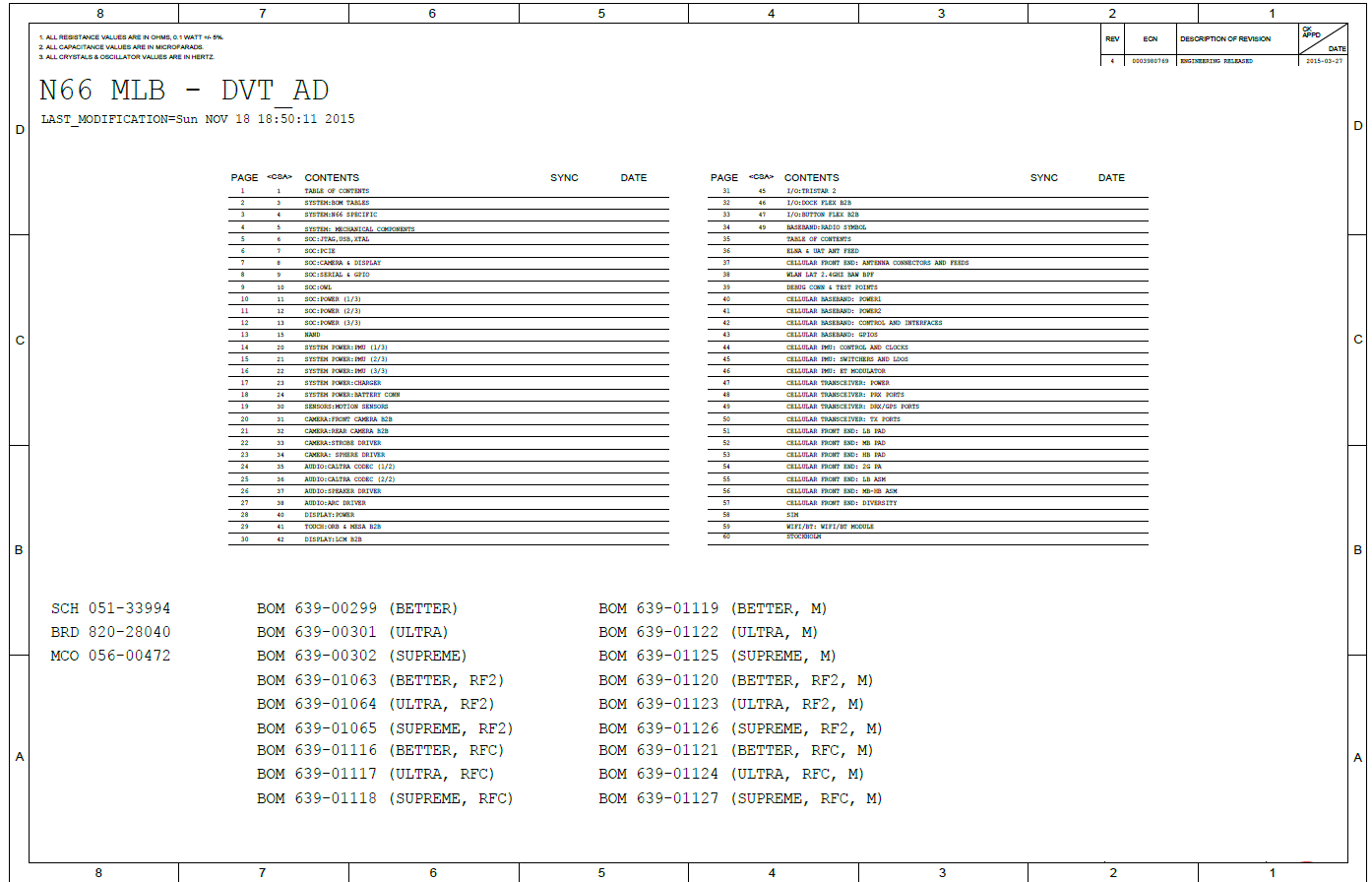

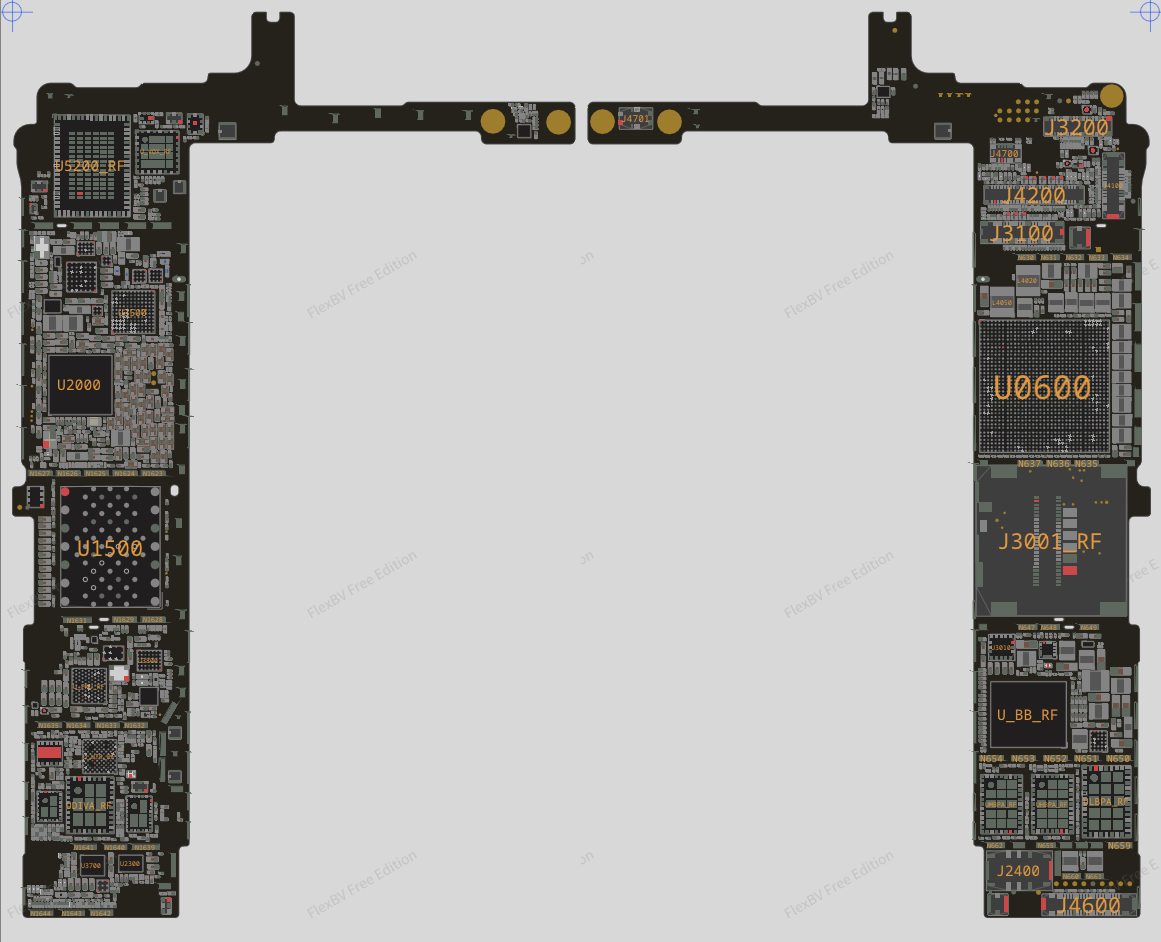

Price: US $20.00 iPhone 6s Plus - MKVP2LL/A* - iPhone8,2 - A1687 - 2944* iPhone 6s Plus - ML6C2CH/A* - iPhone8,2 - A1699 - 2944* iPhone 6s Plus - N/A* - iPhone8,2 - A1690 - 2944* What's included : — Schematic Diagram — BoardView file and BoardView Software — Silkscreen (searchable) — Component explain — Diode Value (Connectors) — SCHEMATIC DIAGRAM ANALYSIS (23 pages): ARC B1 B3 B38 Frequency band 4G BASEBAND Charger Compass FCAM Gyro handfree microphone Reception principle BOOT Display TOUCH LED STROBE MESA NAND Phosphorus RCAM RF Amplifier vcc RF circuit simcard Unicom telecom 2G USB Voice microphone Reception principle WiFi Diode Value, etc... A9 cpu middle-lever diode value diagram A9 CPU vcc Foot position diagram all connector Diode Value diagram (silkscreen) diode value diagram — Repair Cases (As-Is): without baseband repair (OOl).pdf without baseband repair (002).pdf mobile phone leakage fault repair.pdf The front camera is damaged, causing the rear camera failure.pdf CPU empty weld cause restart when boot.pdf Win broken and temperature warning.pdf Win chip broken cause failed.pdf liquid enter leakage of electricity.pdf liquid enter main Cameraconvert transistor corrosion.pdf 2.85V convert transistor vcc insurance broken cause maincamera failed.pdf Baseband solder dot dropped cause Recovery error report 4013.pdf CPU Void welding NAND broken causeno no power on.pdf CPUbroken causeunrecognize NAND.pdf Diversified receptor broken cause no service.pdf Electricity consumption too fast and system tips temperature over.pdf GPUinductor empty weld cause restart Screen no display.pdf I2C CLK wire break cause sound slow.pdf Move Board(01).pdf Move Board(02).pdf NAND PCIE bus wire break no power on.pdf NAND REF resistance broken cause Recovery error report 14.pdf NAND broken causeno power on.pdf NANDbroken causeRecoveryerror report 4014.pdf NANDsolder dot dropped.pdf NFC cause active failed.pdf PCB layer wire break no touch.pdf Pull-up vcc repair volume key failed.pdf RF broken cause no service.pdf RF cause no sevice moddle-RF cause no 3G.pdf Ring tone amplification I2S bus wire break cause no vibrator No external speaker.pdf SDRAM1.8V inductor empty weld cause stop at 30MA.pdf Solution of WIFI Fever without Replacing WIR.pdf U5411_RFcause stop at white apple.pdf USBcharging ICbroken cause no power on.pdf USBcharging chip broken causeno power on.pdf USBchip causeleakage of electricity , WiFiwire break cause no WIR.pdf WIFI broken cause hot after power on.pdf WIHcauseleakage of electricityno power on .pdf WiFibroken causedisplay temperature over.pdf backlight circuit allmoved repair Screen Half Brightpdf backlight vcc insurance broken cause Screen Half Brightpdf battery cause restart.pdf battery detect pin resistance moved cause restart alone.pdf battery detect pin to chip wire break cause restart.pdf camera 1.8V wire break cause failed.pdf charging chip F5 pin capacitor short circuit no charging.pdf charging connector broken no charging.pdf charging inductor broken cause no charging.pdf codec broken cause tellphone no sound，ectricity consumption too fast.pdf codecvcc wire break cause no sound.pdf common failing RF broken cause no service.pdf common failing backlight loop insurance broken causeno display.pdf common failing backlight vcc insurance inductor broken cause no display.pdf compass chip liquid enter corrosion causecannot use.pdf connectorbroken cause no display.pdf display 5.7Vshort circuit cause no display.pdf dropped ,MainVCC capacitor short circuit causeno power on.pdf dropped Electronic component cause no power on.pdf dropped multi problem.pdf filter broken causeGPS signal poor.pdf fingerprint 3Vcapacitor corrosion cause standard by leakage of electricity.pdf fly wire to repair wifi losse internet connect often.pdf inductor Solder joints linkedcauseno power on.pdf liquid enter,saved infomation in phone,then Move Board.pdf liquid enter 16.5Vshort circuit cause no power on auto call SIRI.pdf liquid enter corrosion causeno power on no sound.pdf liquid enter display touch connector dropped componentpdf liquid enter no power on l.pdf liquid enter no power on 2.pdf liquid enter no power on 3.pdf liquid enter no power on 4.pdf liquid enter no power on.pdf liquid enter no shootpdf main camera 1.2V filter capacitor broken cause failed.pdf no backlightpdf no charging fly wire repair CPU battery detect pin broken.pdf no display.pdf no main camera ,fly wire from sensorlight VCC to repair.pdf no main camera no charging.pdf no power on and no maincamera.pdf power supply broken cause temperature warning.pdf reballing CPU repair stop at Fixed current 80MA.pdf restart when boot.pdf wifibroken cause power consumption quickly.pdf Main components: CPU : 1.85 GHz Apple A9 Screen: 5.5" Retina HD Year: 2015 File types : Schematic Diagram: PDF BoardView file : PCB Silkscreen: PDF |
|---|
Click on picture to enlarge
