LCFC OEM NM-F331 KS485&KS585&KS686&KN580 (Alder Lake CPU) + NS-F332 KS485 , Motherboard and USB Board BoardView files and Schematic diagram

Click on picture to enlarge	Price: US $20.00 Motherboard p/n: KS485&KS585&KS686&KN580 NM-F331 (KS485/KS585/KS686/KN580 NM-F331) (Alder Lake CPU) USB Board p/n: KS485 NS-F332 What's included: — 2 Schematic Diagrams for Motherboard and USB Board — 2 BoardView files for Motherboard and USB Board + BoardView software — Power Block Diagram (Power Distribution Diagram) — Hardware Maintenance Manual — BIOS file* Major components: CPU/PCH : Intel Alder Lake-H / LPDDR5 GPU/VRAM : UMA EC : T8227VG-256CX File types: Schematic Diagram(s) : PDF / Searchable Silkscreen(s)* : N/A BoardView file(s) : .TVW BIOS file* : .FD (Original files from the official Lenovo website) Language : English * The BIOS file is offered AS-IS

Click on picture to enlarge

Price: US $20.00

Motherboard p/n: KS485&KS585&KS686&KN580 NM-F331 (KS485/KS585/KS686/KN580 NM-F331) (Alder Lake CPU)
USB Board p/n: KS485 NS-F332

What's included:

— 2 Schematic Diagrams for Motherboard and USB Board

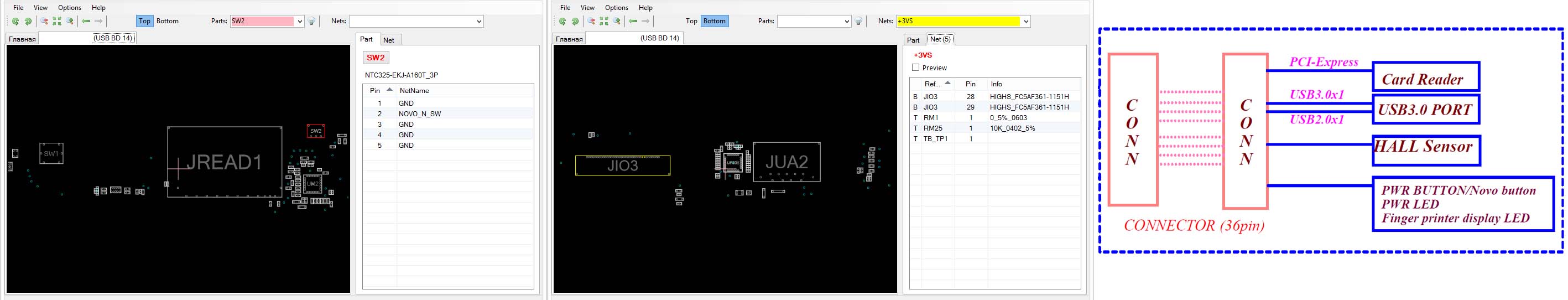

— 2 BoardView files for Motherboard and USB Board + BoardView software

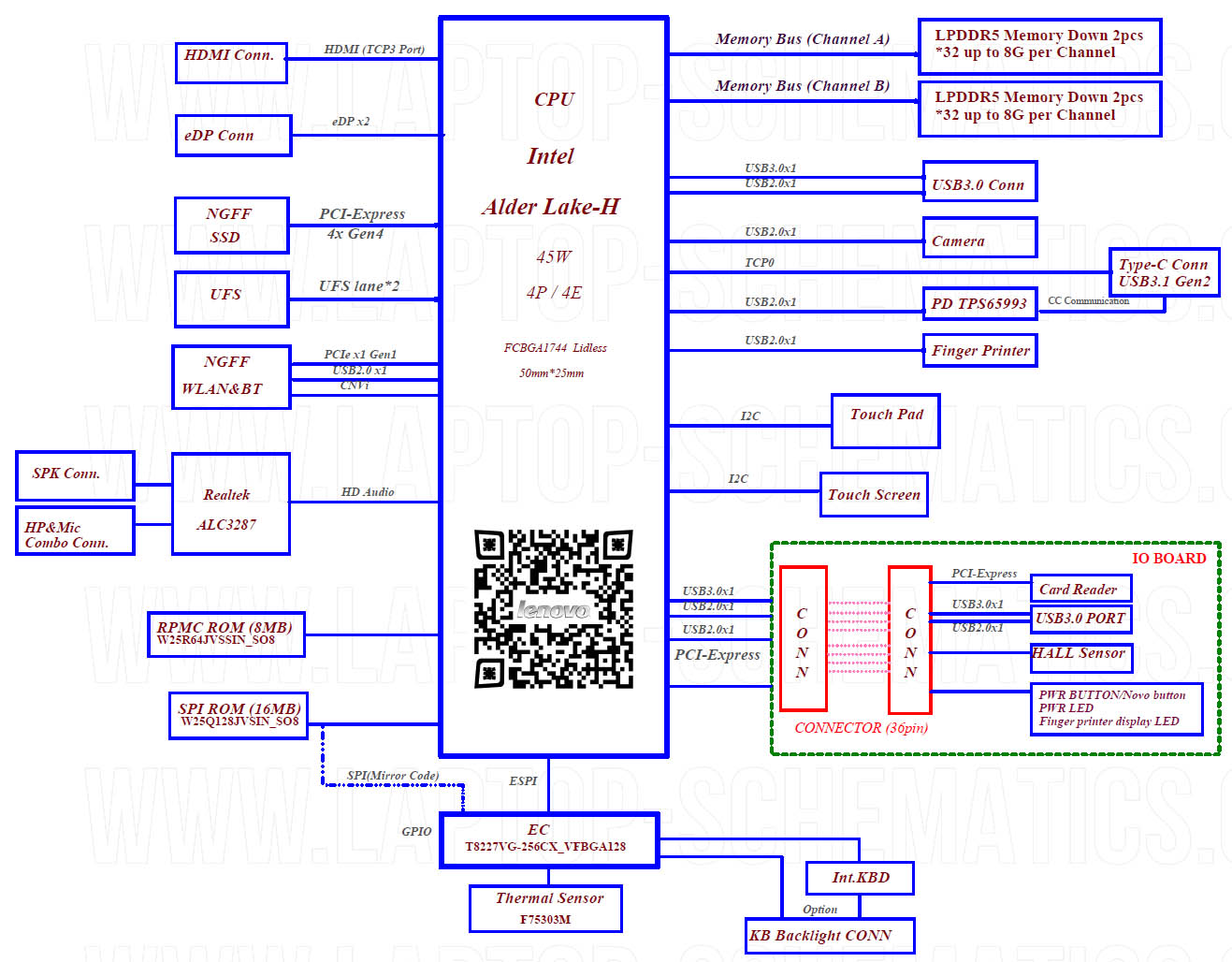

— Power Block Diagram (Power Distribution Diagram)
— Hardware Maintenance Manual
— BIOS file*

Major components:

CPU/PCH : Intel Alder Lake-H / LPDDR5
GPU/VRAM : UMA
EC : T8227VG-256CX

File types:

Schematic Diagram(s) : PDF / Searchable
Silkscreen(s)* : N/A
BoardView file(s) : .TVW
BIOS file* : .FD (Original files from the official Lenovo website)
Language : English

* The BIOS file is offered AS-IS
