Lenovo S series laptops (ideapad) Slim 7-14ARE05 Laptop (ideapad) - Type 82A5, Motherboard Schematic diagram
|
|
Price: US $20.00 What's included: — Schematic Diagrams for Motherboard — Power On Sequence Timing Diagram — Power Block Diagram — Power Delivery Map — I2C/SMBus Block Diagram Major components: CPU/HUB/RAM: AMD Renoir FP6 / LPDDR4X GPU/VRAM: UMA EC/SIO: ITE IT5570VG-256K File types: Schematic Diagram(s) : PDF / Searchable Silkscreen(s) : N/A BoardView file(s) : N/A Language : English |
|---|

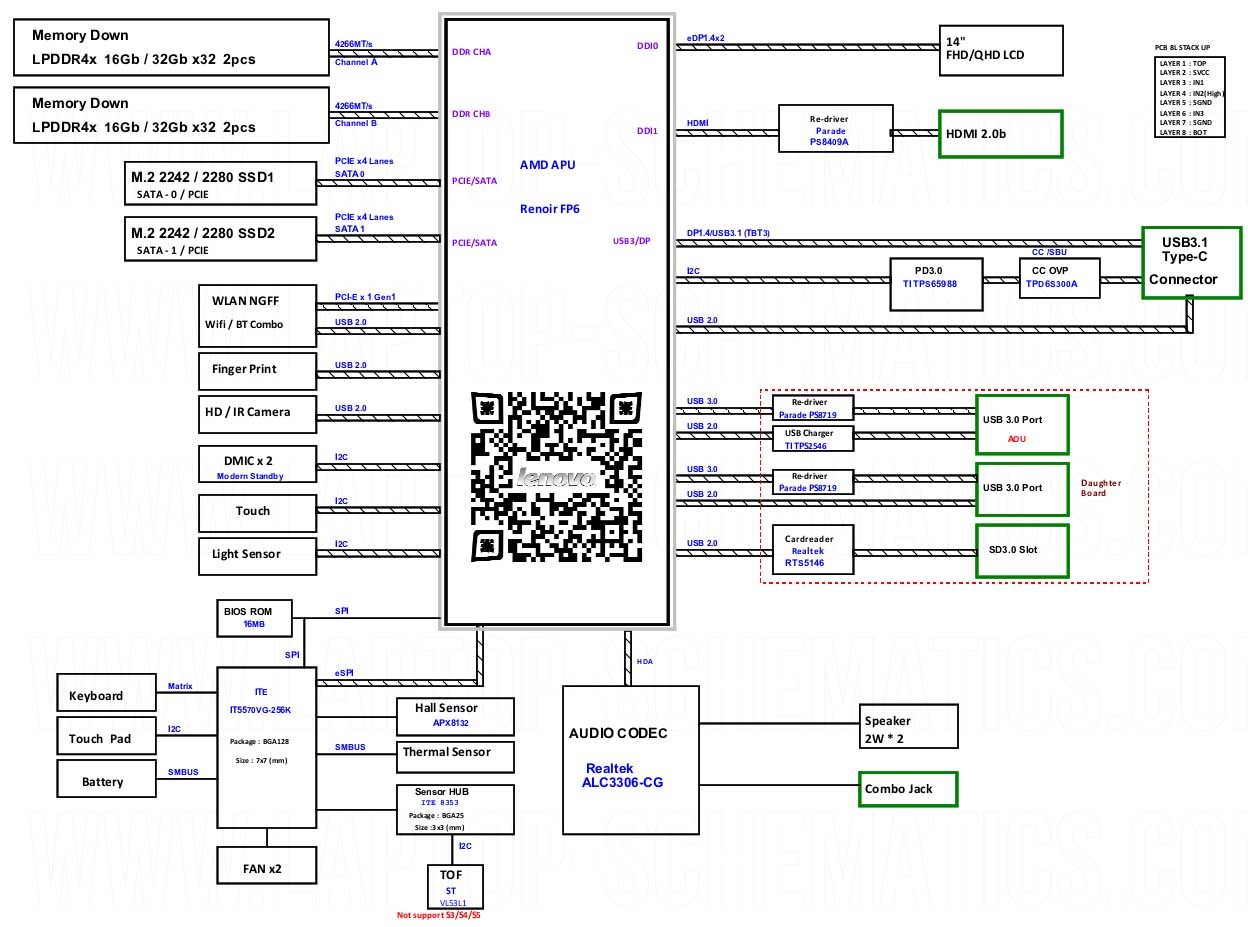

Click on picture to enlarge
