Lenovo EDGE series laptops (ThinkPad) E15 Gen 2 (Type 20TD, 20TE) Laptop (ThinkPad), Motherboard BoardView file and Schematic diagram
|
|
Price: US $20.00 What's included: — Schematic Diagram for Motherboard — BoardView file for motherboard and BoardView Software — Power Block Diagram (Power Distribution Diagram) — SMBUS Block Diagram — Schematic Diagram for USB Board — BoardView file for USB Board and BoardView Software — Schematic Diagram for Earphone Charge Board Major components: CPU/HUB/RAM : Intel Tigerlake-U / DDR4 GPU : UMA or DIS (nVidia MX350/MX450 + GDDr5) EC : ITE IT8227E-256/CX File types: Schematic Diagram(s) : PDF / Searchable Silkscreen(s) : N/A BoardView file(s) : .TVW Language : English |
|---|

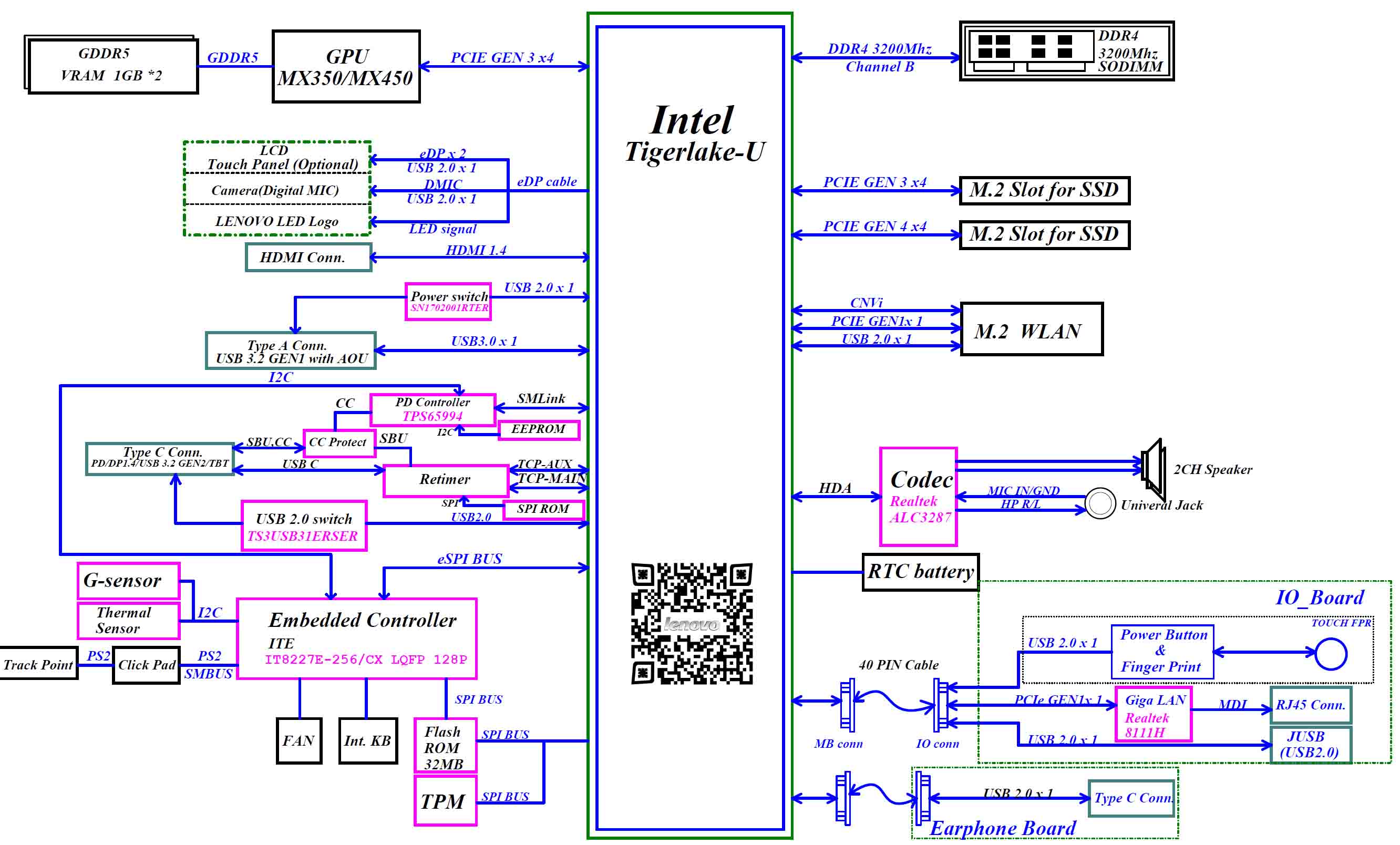

Click on picture to enlarge
