Wistron OEM SELEK_N18E 18812-1, Motherboard BoardView file and Schematic diagram
|
|

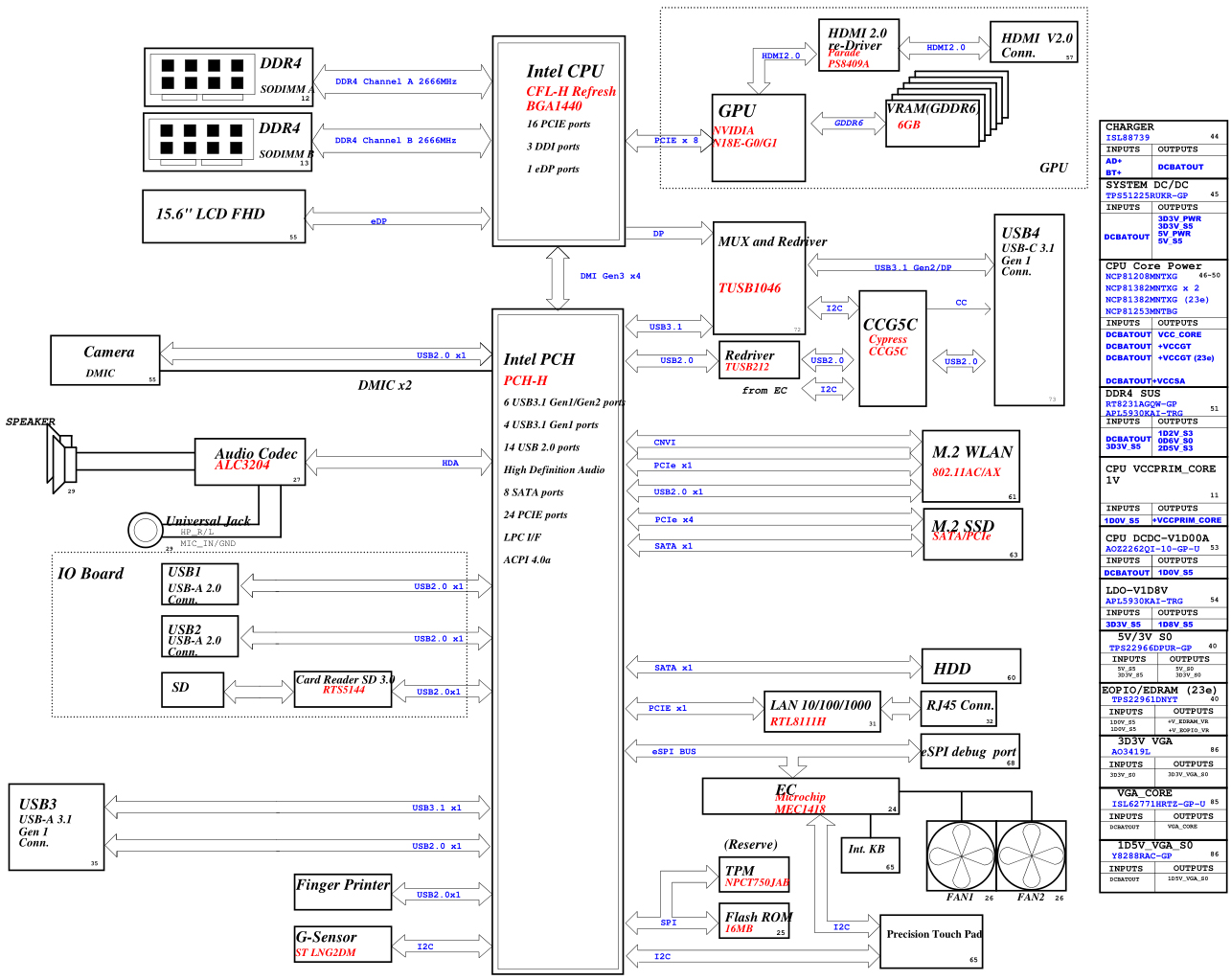

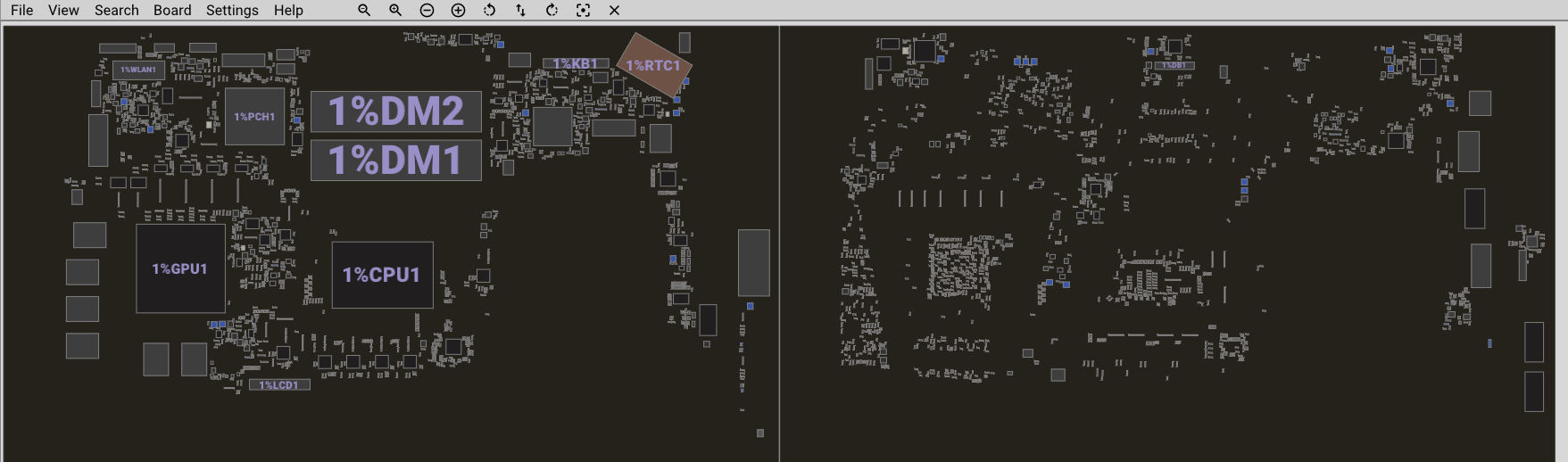

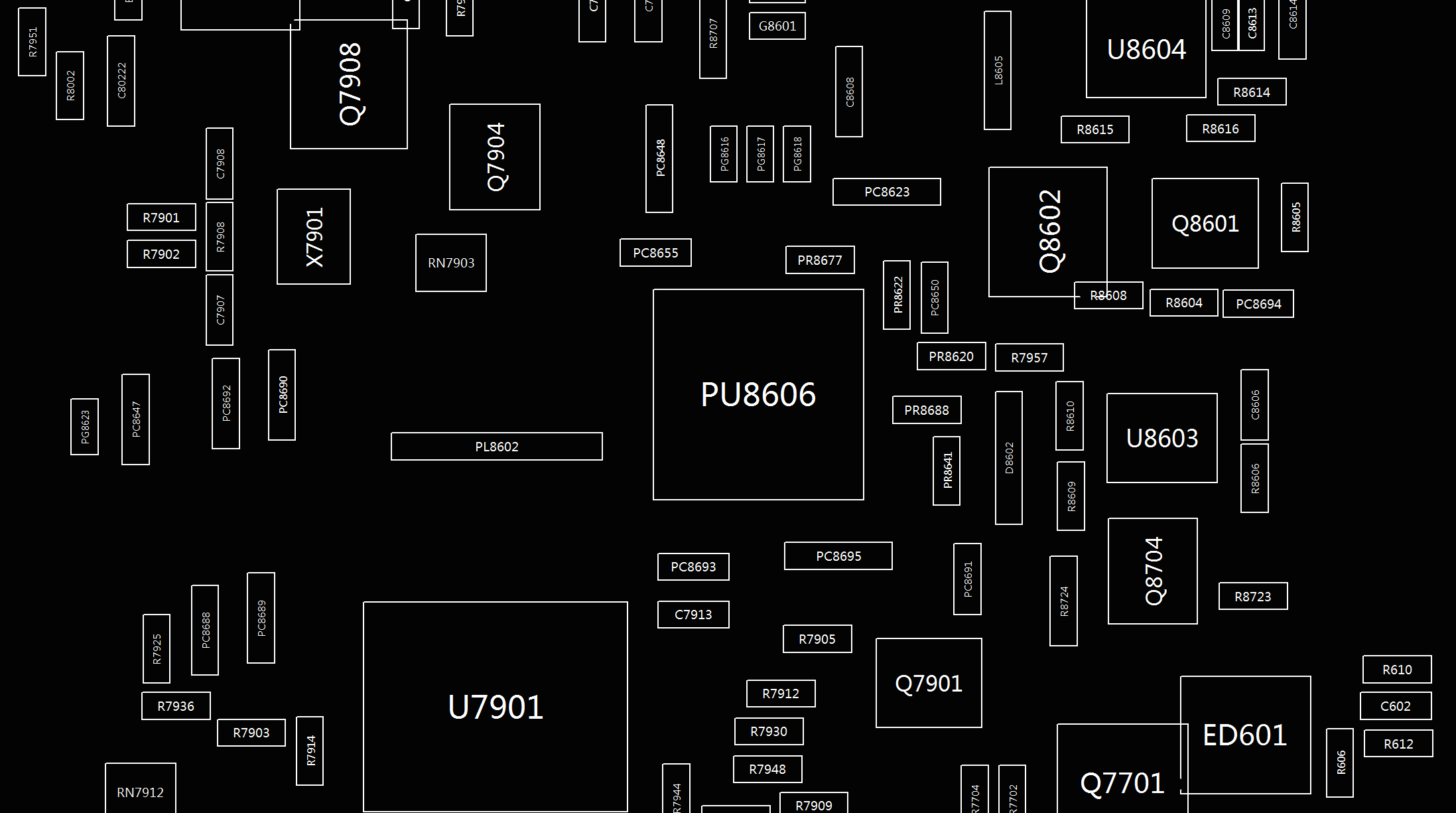

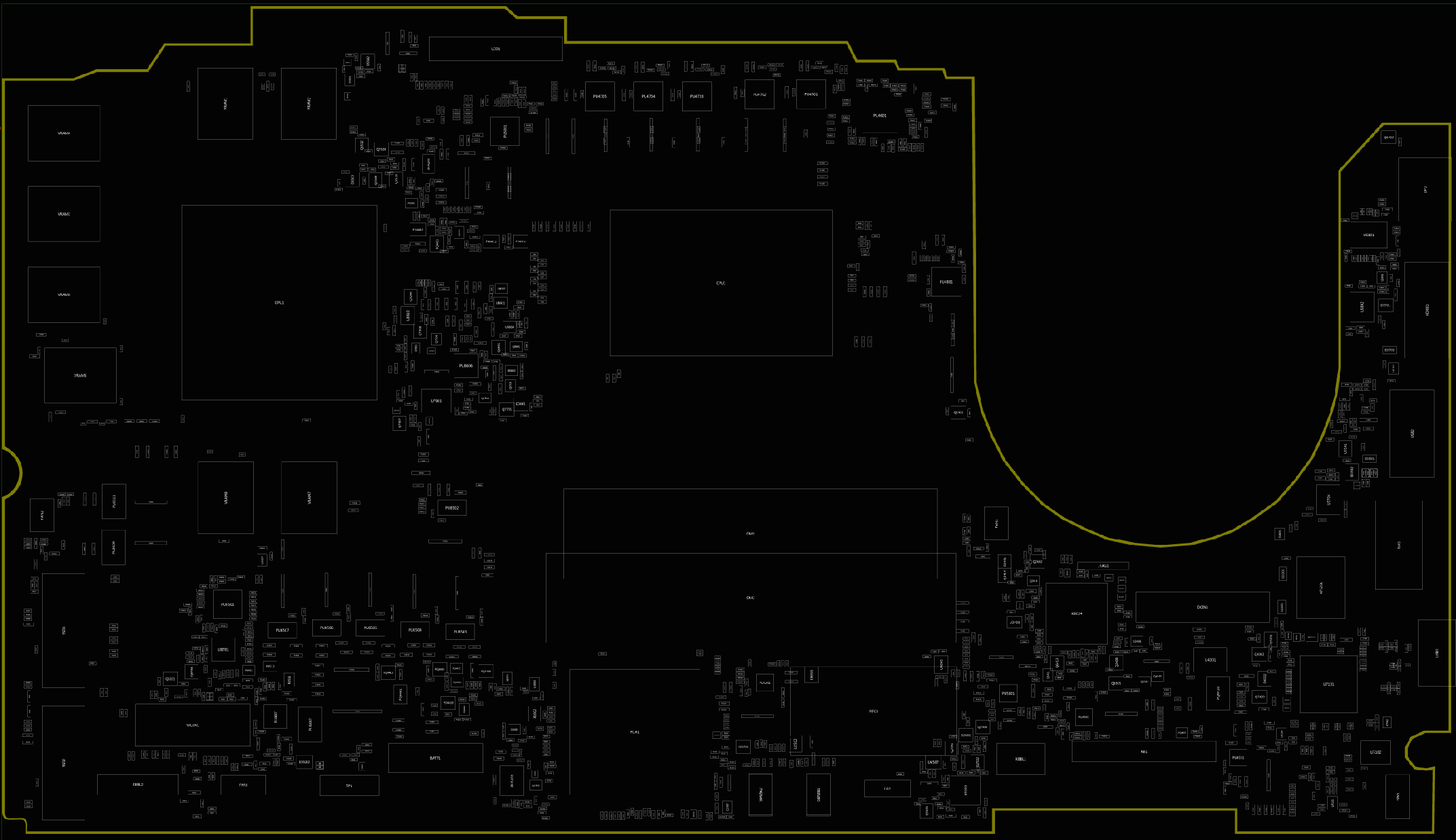

Price: US $20.00 SELEK_N18E_MB 18812-1 XGW0R$LA SELEK_N18E_MB 18812-1 XGW0R$CA SELEK N18E_MB 18812-SC What's included : - Schematic Diagram for MB - BoardView files (GR + PCB) and BoardView Softrare - Silkscreen (Unsearchable JPEG files / High Resolution) - Power Sequence Timing Diagram - Power Sequence Step-by-Step Block Diagram - Power Distribution Block Diagram - PCH SMBus Block Diagram - KBC SMBus Block Diagram - Thermal Block Diagram - Audio Block Diagram Main components: CPU/HUB/RAM: Intel CFL-H Refresh / DDR4 GPU/VRAM : DIS (nVidia N18E-G0/G1) + GDDR6 EC : MEC1418 File types - Schematic Diagram(s) : PDF (Searchable) BoardView file(s) : GR + PCB (FlexBV) Silkscreen** : JPEG (Unsearchable, but completely readable file in high resolution) BIOS file : N/A Language : English |
|---|
