Lenovo B Series AIO (Lenovo) B50-30 Touch All-in-One (Lenovo), Motherboard Schematic diagram
|
|

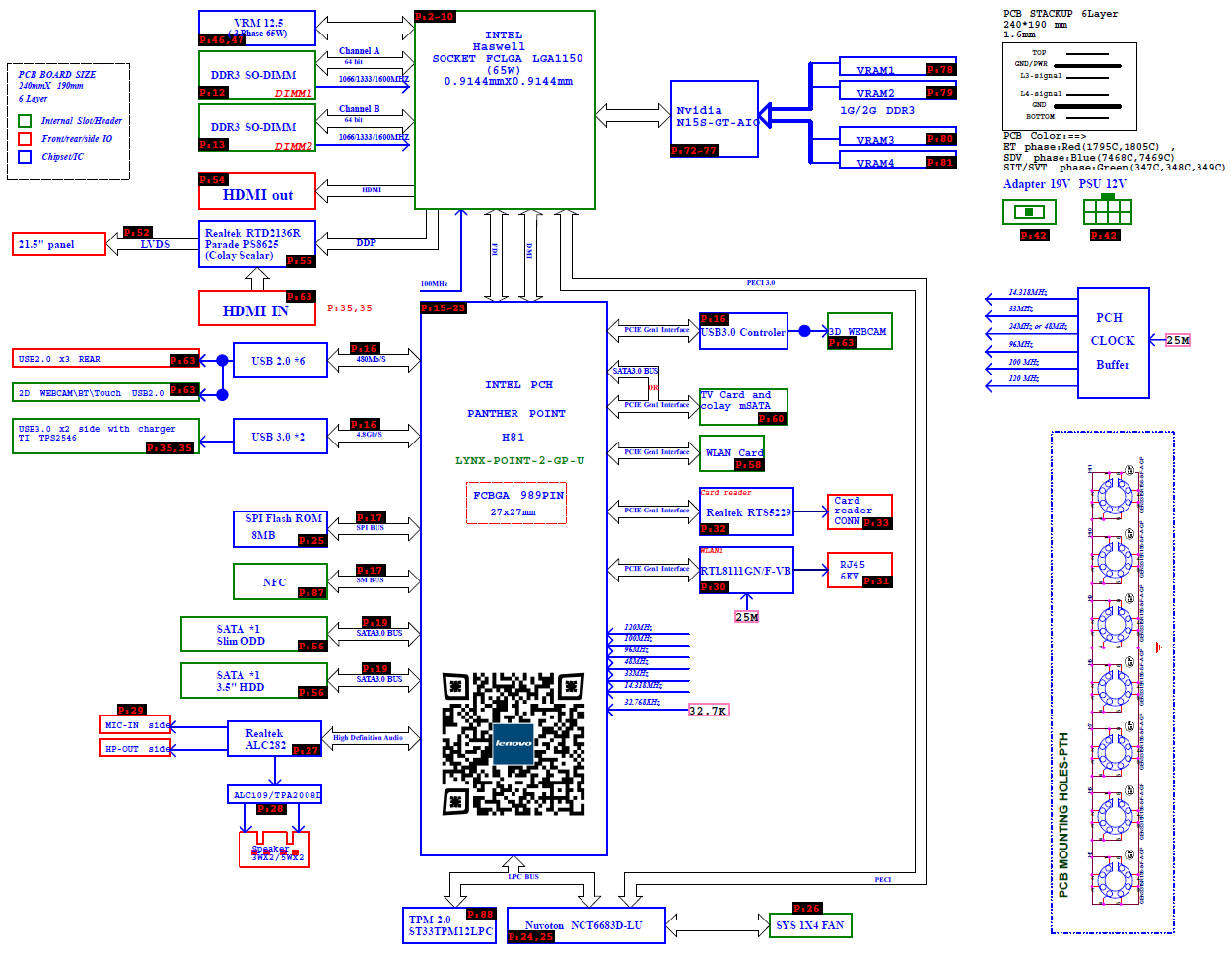

Price: US $18.75 What's included: - Schematic diagram - Power On Sequence Timing Diagram - Power Flow Diagram (Power Distribution Diagram / Power Block Diagram) - Reset Flow Chart - SMBus/I2C Block Diagram - Clock Block Diagram Major components: CPU/HUB/RAM : Intel Haswell / H81 / DDR3 GPU : UMA or DIS nVIDIA N15S-GT EC : Nuvoton NCT6683D-LU File types: Schematic Diagram(s): PDF / Searchable BoardView file(s) : N/A Language : English BIOS file : N/A |
|---|
