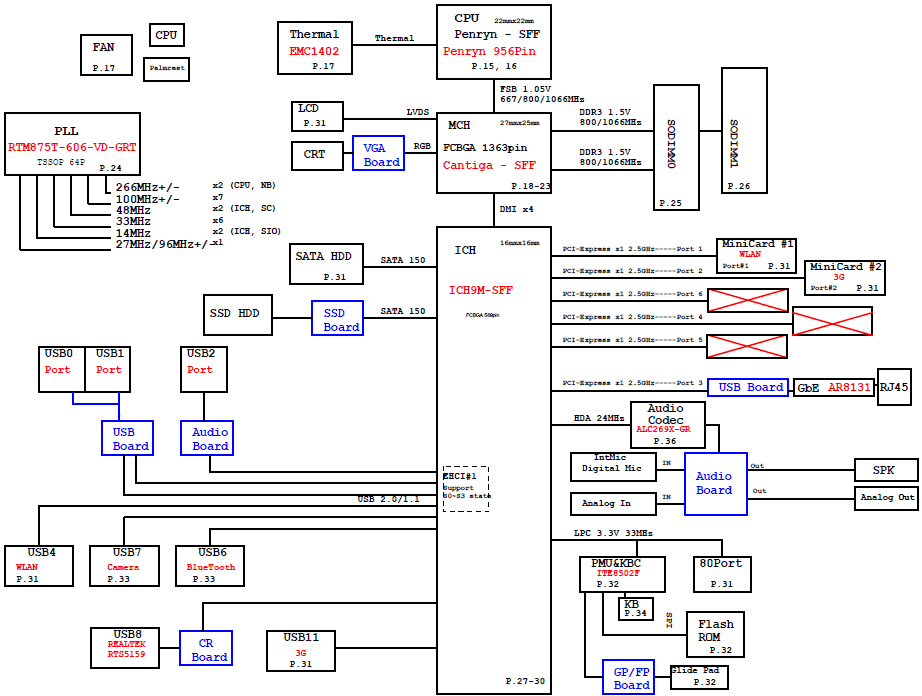

Gateway EC34 Series EC34, Motherboard schematic diagram Schematic diagram
Click on picture to enlarge |
Major components CPU :Intel Penryn SFF North Bridge :Intel Cantiga SFF GS45 South Bridge :Intel ICH9-M SFF Thermal Sensor :EMC1402 Video :UMA (Intel GMA 4500MHD) Clock Generator :RTM875T-606-VD-GRT Audio Codec :Realtek ALC269X-GR KBC(Embeded Controller),SIO :ITE8502F LAN Controller :Atheros AR8131 <Power System> SC472BMLTRT TPS51610RHB G9091 G9091 TPS51117RGYR TPS51117RGYR G2997F6U TPS51125RGER ISL6251AHAZ Total Pages : 51 File type : PDF Language : English |
---|
