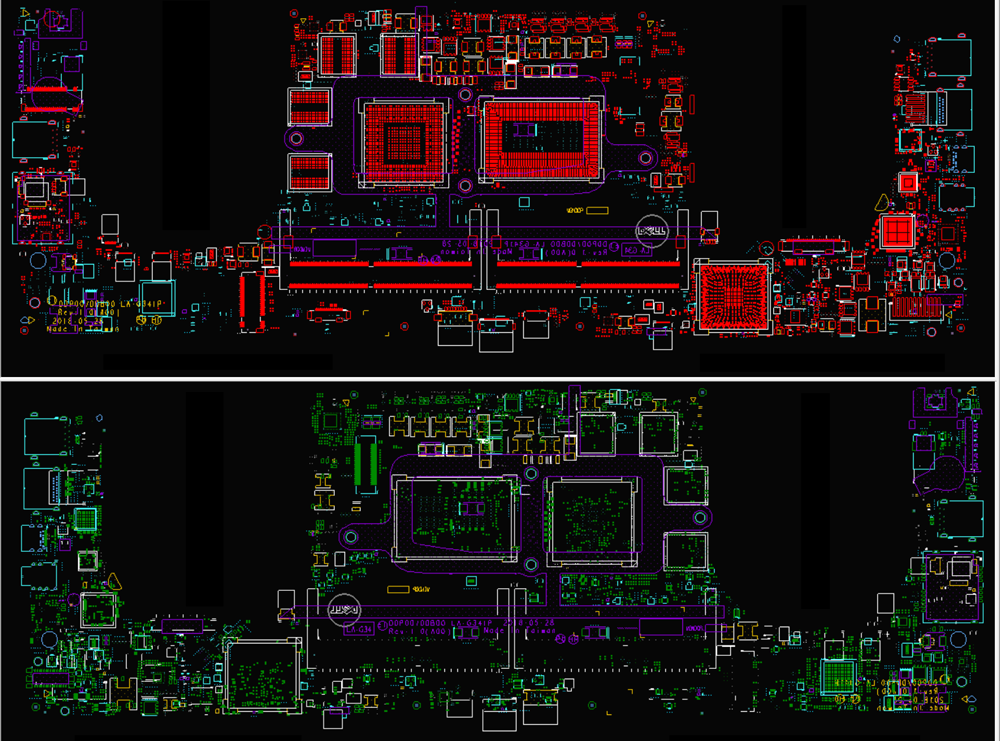

Dell Precision 5530, Motherboard Schematic diagram
Click on picture to enlarge |
Also included: — BoardView file and BoardView software — Power Block Diagram — SMBus Block Diagram Major components: CPU/HUB/RAM: Intel CoffeeLake-H / CannonLake-H / DDR4 GPU: UMA or DIS (GTX N17P-G0/GTX N17P-G1 MaxQ/Quadro N18P-Q1/N18P-Q3 MaxQ + GDDR5) EC/KBC : SMSC MEC5105/ECE1117 File type : PDF Language : English |
---|
