Dell Inspiron 7370, Motherboard Schematic diagram
|
|
Price: US $20.00 Also included: — BoardView file and BoardView software — Power Block Diagram — Power Sequence Step-by-Step Block Diagram — Clock Block Diagram — PCH SMBus Block Diagram — KBC SMBus Block Diagram — Thermal Block Diagram — Audio Block Diagram Major components: CPU/PCH: Intel KabyLake-U/R + DDR4 GPU: UMA EC/KBC : MEC1416 File type : PDF Language : English |
|---|

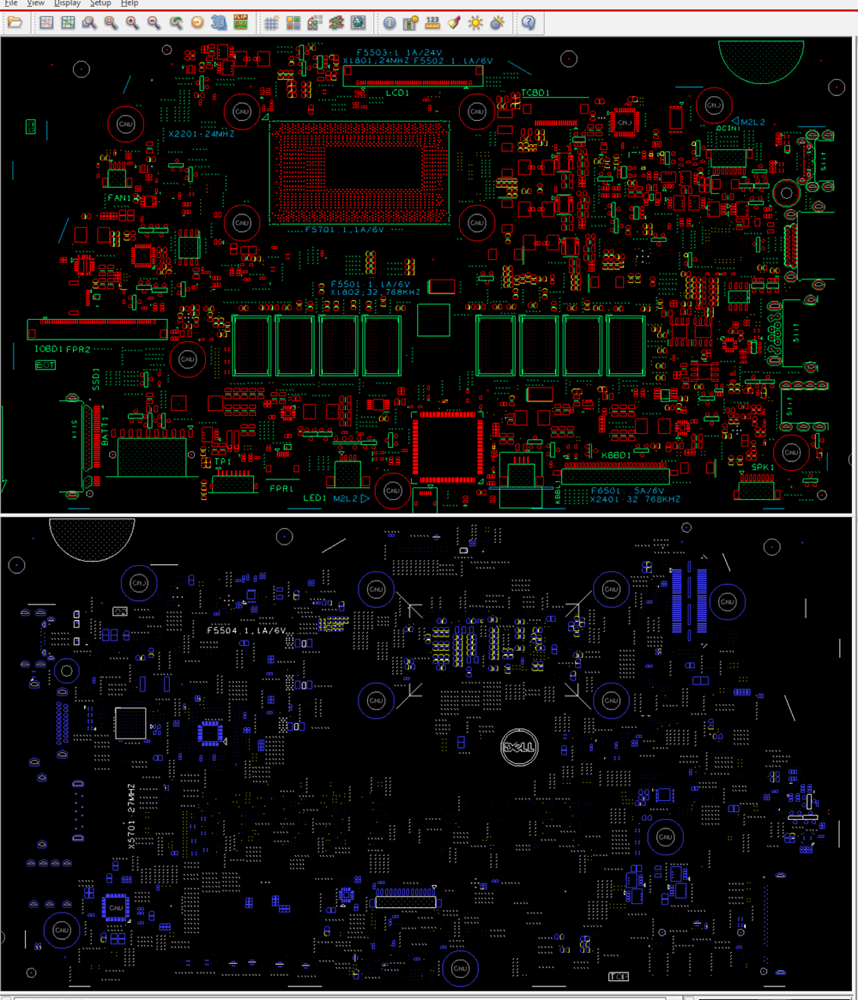

Click on picture to enlarge
