Compal OEM LA-D801P BAL20 , Motherboard BoardView files and Schematic diagram

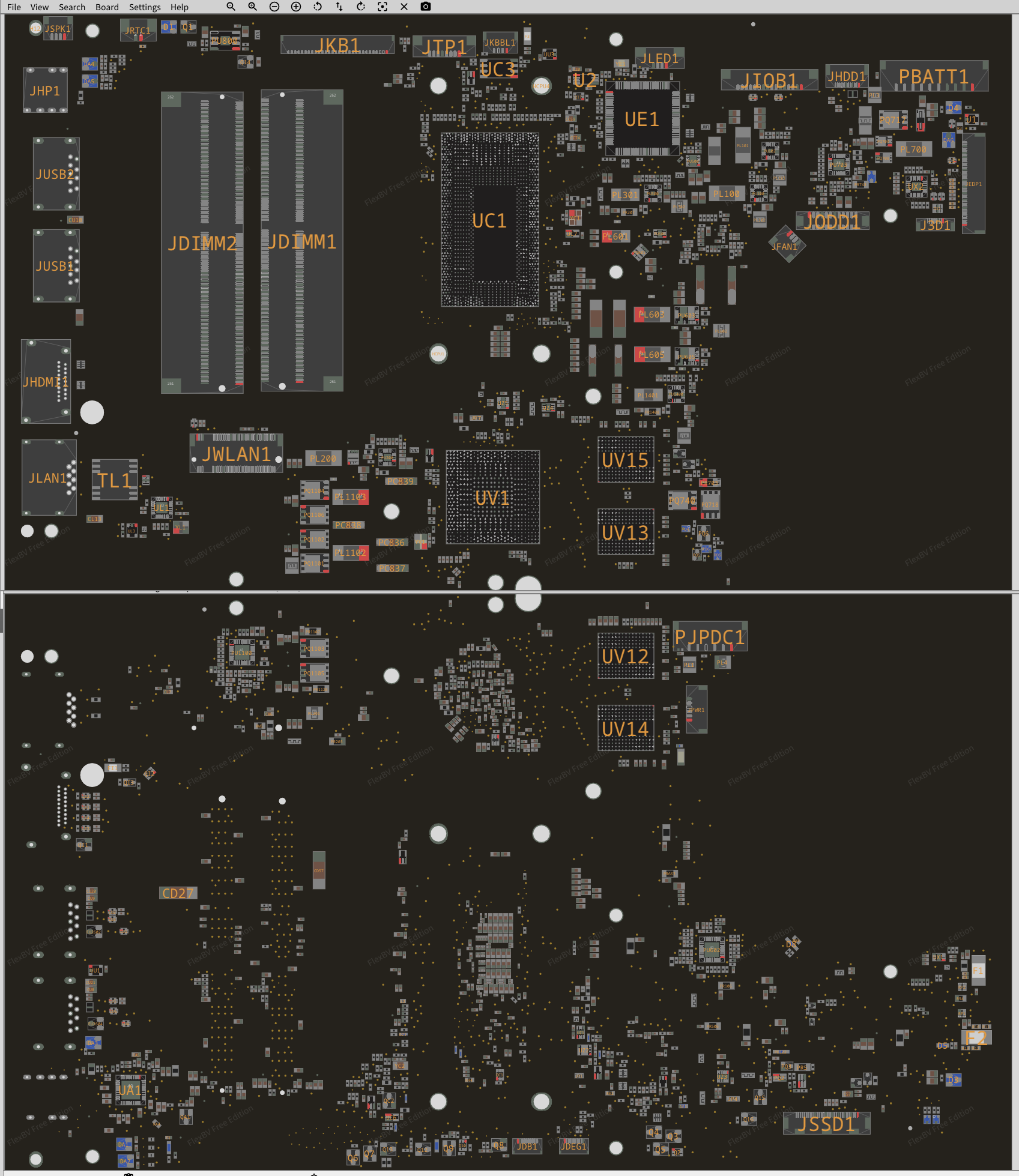

Click on picture to enlarge	Price: US $20.00 Known motherboard p/n: BAL20 LA-D801P Also included: — Schematic Diagram — BoardView file and BV Software — Power Rail diagram — SMBus block diagram Major components: CPU Intel Skylake-U or Kabylake-U + DDR4-RS GPU: DIS (AMD MESO R16M-M1-70 + GDDR5) EC: MEC1404-NU-GP File type : PDF BoardView file: PCB Language : English

Click on picture to enlarge

Price: US $20.00

Known motherboard p/n: BAL20 LA-D801P

Also included:

— Schematic Diagram
— BoardView file and BV Software
— Power Rail diagram

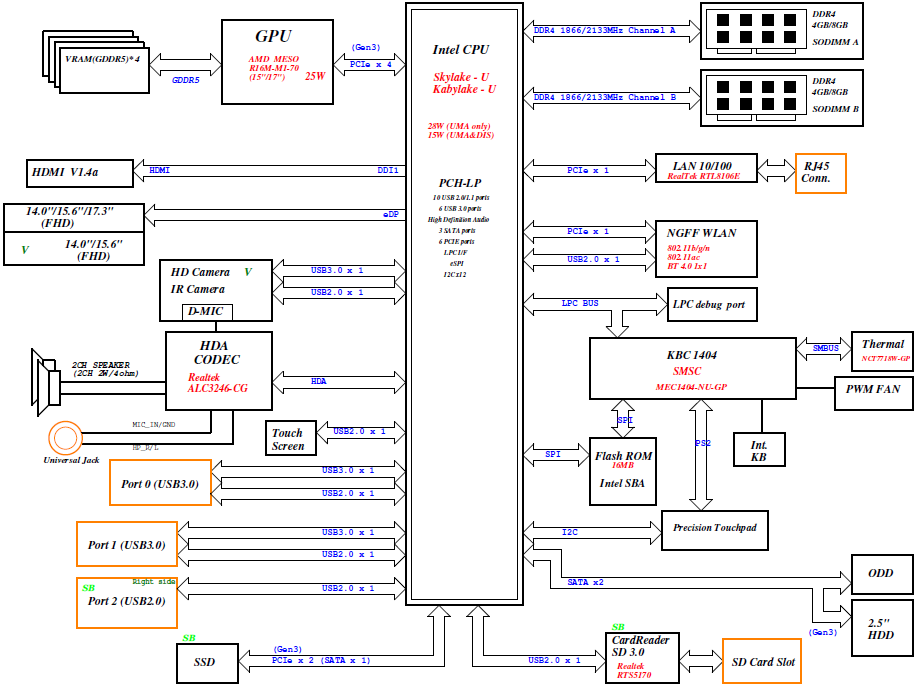

— SMBus block diagram

Major components:

CPU Intel Skylake-U or Kabylake-U + DDR4-RS
GPU: DIS (AMD MESO R16M-M1-70 + GDDR5)
EC: MEC1404-NU-GP

File type : PDF
BoardView file: PCB
Language : English

Updated: 12-12-2025
