Acer Ferrari 1100, Motherboard schematic diagram Schematic diagram

Sale price: US $9.75

Please choose your preferred payment method from the following options below

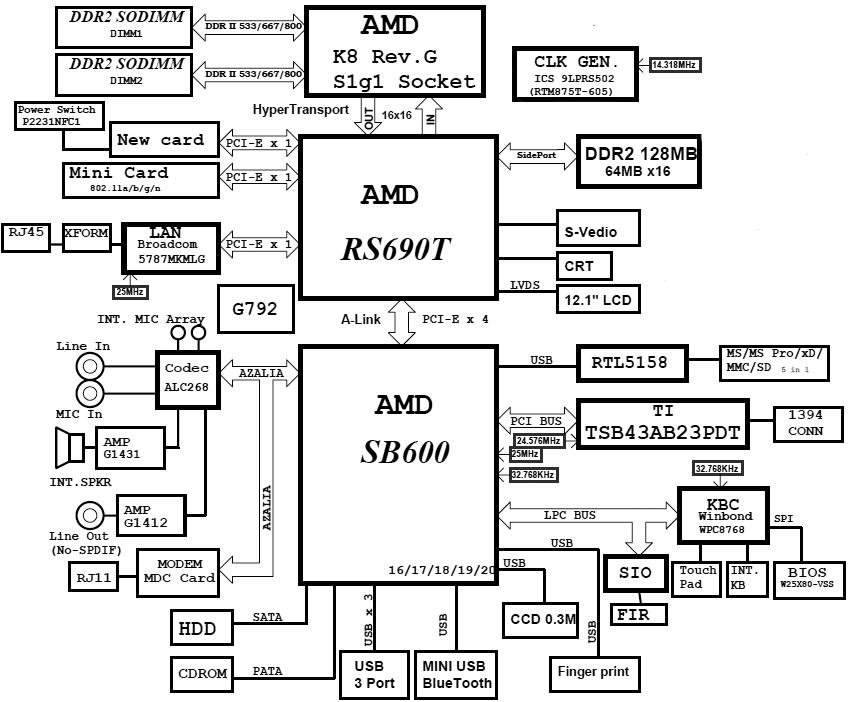

Click on picture to enlarge	Major components CPU : AMD K8 Rev.G S1g1 Socket North Bridge : AMD RS690T South Bridge : AMD SB600 Clock Generator : ICS9LPR464GLFT-GP Audio Codec : ALC268 Audio Amplifier : G1431F2U-GP KBC(Embeded Controller),SIO : WPC8768LDG-GP,PC87383MG-GP, LAN Controller : BCM5787MKMLG-1-GP IEEE 1394 Controller : TSB4323 Temperature Controller : G792SFUF-GP <Power System> 5V/3V : TPS51120 Vcore : ISL6264CRZ +2.5v / 1.8v : APL5913 / APL5332KAC-TRLGP 1.8V / 0.9V : TPS51116 1.2V : ISL6268 VGA CORE : ISL6268 Charger : ISL6255 (MAX8731) Total Pages : 47 File tipe : PDF Language : English

Click on picture to enlarge

Major components

CPU : AMD K8 Rev.G S1g1 Socket
North Bridge : AMD RS690T
South Bridge : AMD SB600
Clock Generator : ICS9LPR464GLFT-GP
Audio Codec : ALC268
Audio Amplifier : G1431F2U-GP
KBC(Embeded Controller),SIO : WPC8768LDG-GP,PC87383MG-GP,
LAN Controller : BCM5787MKMLG-1-GP
IEEE 1394 Controller : TSB4323
Temperature Controller : G792SFUF-GP

<Power System>

5V/3V : TPS51120
Vcore : ISL6264CRZ
+2.5v / 1.8v : APL5913 / APL5332KAC-TRLGP
1.8V / 0.9V : TPS51116
1.2V : ISL6268
VGA CORE : ISL6268
Charger : ISL6255 (MAX8731)

Total Pages : 47
File tipe : PDF
Language : English

Updated: 12-01-2010
