Asus ZenBook Flip UX562FD, motherboard Schematic diagram

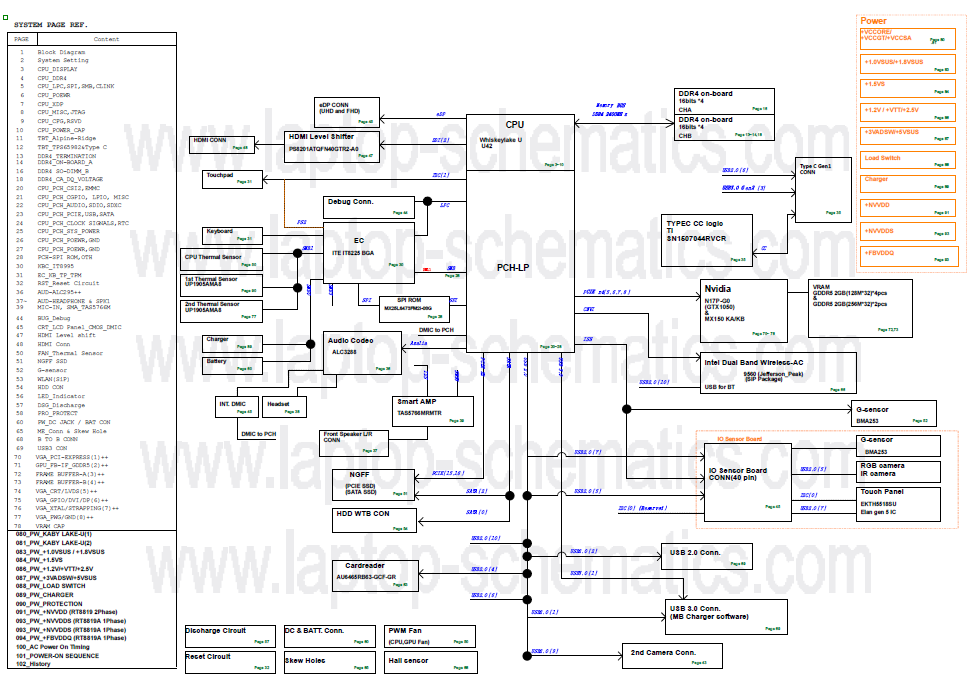

Click on picture to enlarge	Price: US $18.75 Also included: — Power Sequnece Timing Diagram — Power Sequence Block Diagram — Power Flow Chart — SMbus and I2C diagram — GPU Power Up/Down sequence diagram Major components: INTEL Whiskeylake-U + DDR4 GPU: DIS (N17P-G0 (GTX1050) & MX150 (N17S-G1)) + GDDR5 EC : ITE IT8225 File type : PDF (Searchable) Language : English

Click on picture to enlarge

Price: US $18.75

Also included:

— Power Sequnece Timing Diagram
— Power Sequence Block Diagram
— Power Flow Chart
— SMbus and I2C diagram
— GPU Power Up/Down sequence diagram

Major components:

INTEL Whiskeylake-U + DDR4
GPU: DIS (N17P-G0 (GTX1050) & MX150 (N17S-G1)) + GDDR5
EC : ITE IT8225

File type : PDF (Searchable)
Language : English

Updated: 30-08-2019
