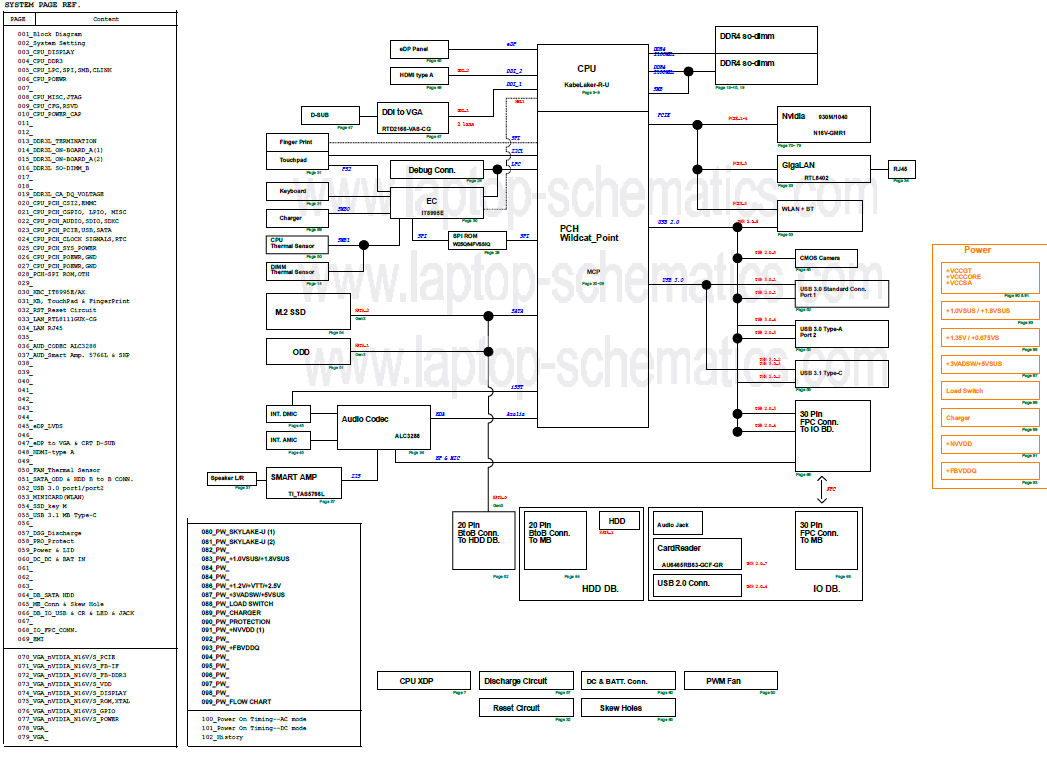

Asus VivoBook-series A542UN, motherboard Schematic diagram

Click on picture to enlarge

Price: US $18.75

Also included:

— Power Sequnece Timing Diagram (AC mode)
— Power Sequnece Timing Diagram (DC mode)
— Power Flow Chart

Major components:

INTEL KabyLake-R-U / Wildcat_Point + DDR4
GPU: DIS (N16V-GMR1 / N16S-GMR / N17S-G1)
EC : IT8995E

File type : PDF (Searchable)
Language : English
Updated: 29-08-2019
