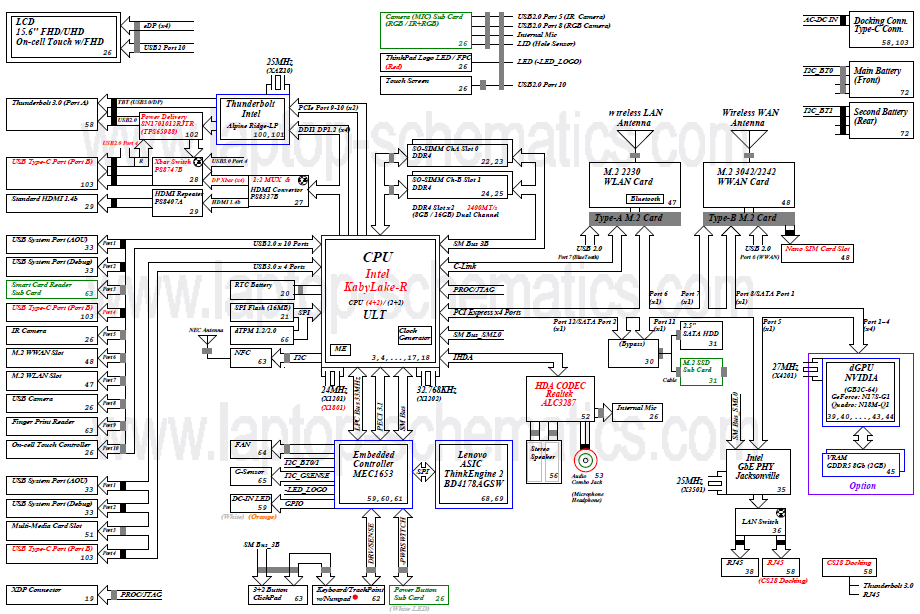

Lenovo P series laptops (ThinkPad) P52s (Type 20LB, 20LC) Laptop (ThinkPad), motherboard Schematic diagram

Click on picture to enlarge

Price: US $20.00

Also Included:

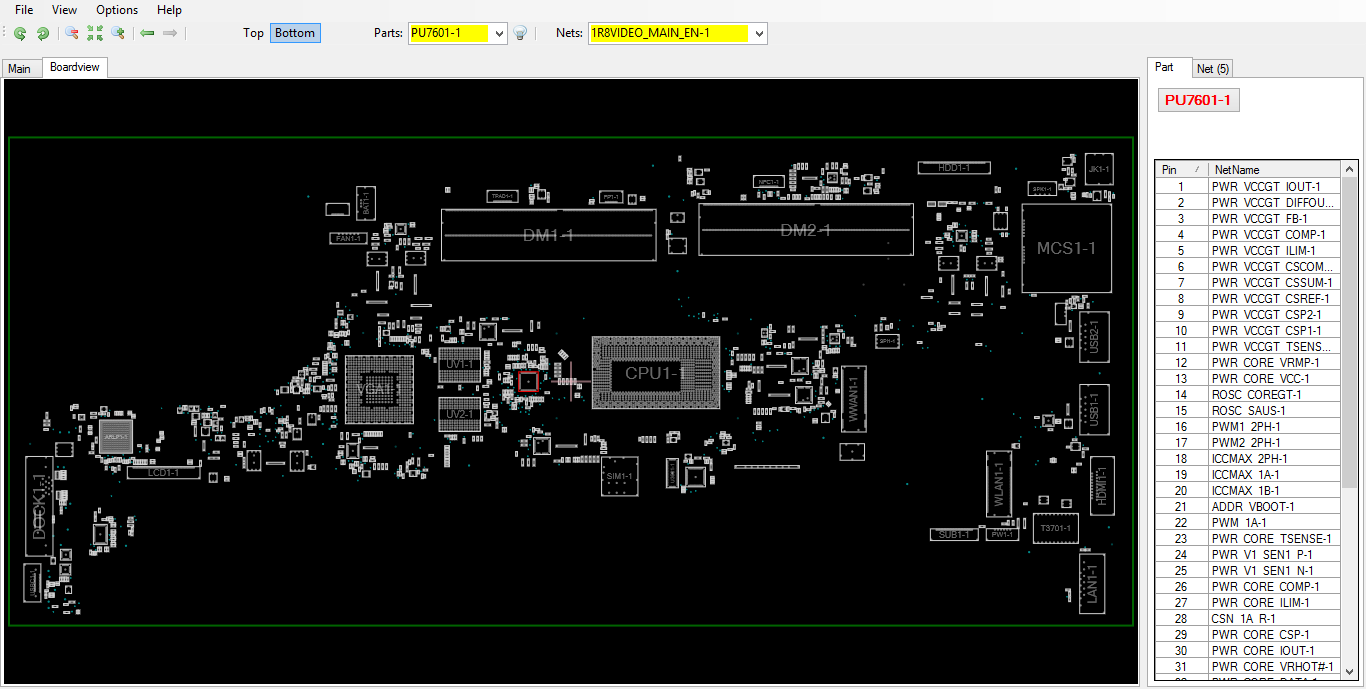

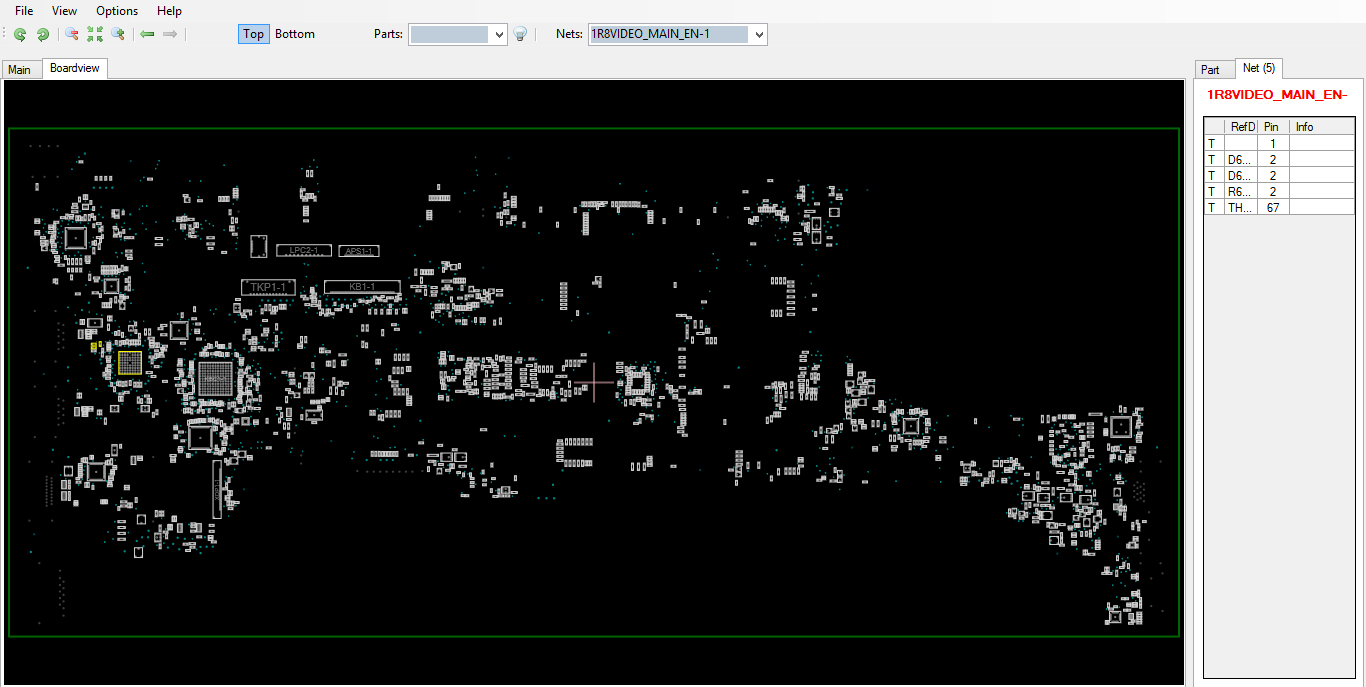

— BoardView file for MB and BoardView software
— 5 schematic diagrams for all daughter boards:
/ Hall Sensor Board
/ Mic Board
/ M.2 Board
/ Power Button Board
/ SM CardReader board

Major components:

CPU: Intel KabyLake-R
GPU: DIS (GeForce N17S-G1 or Quadro N18M-Q1)
EC: MEC1653

File type : PDF (Searchable)
Language : English
Updated: 26-08-2019
