Lenovo 11e series laptops (ThinkPad) 11e (Type 20E6, 20E8) laptop (ThinkPad), motherboard Schematic diagram

Click on picture to enlarge

Price: US $18.75


Also Included:

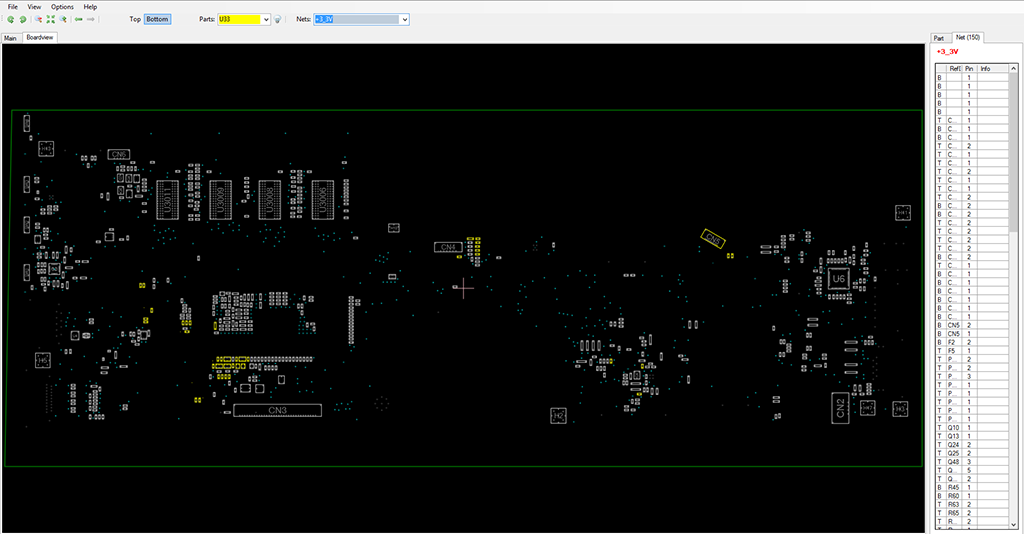

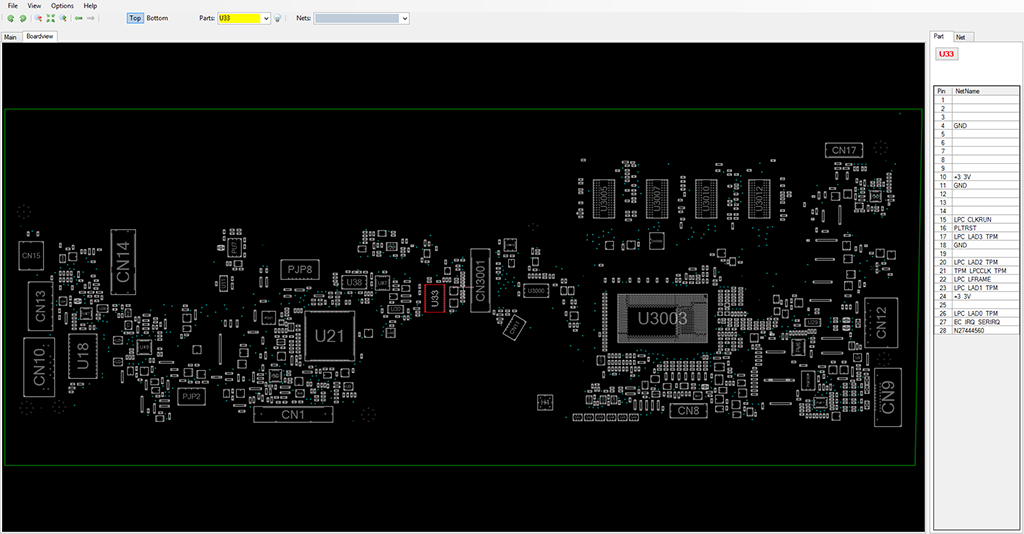

BoardView file and BoardView software
Power Sequence Timing Diagram

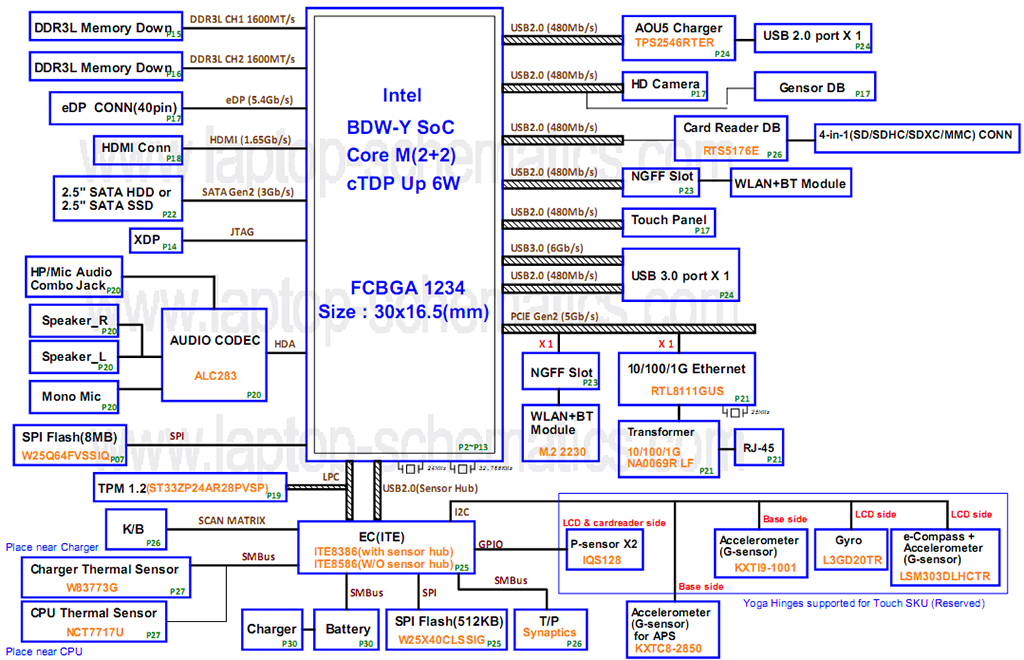

Power Block diagram
Additional schematic diagrams for: Gyroscope, Compass, P-Sensor, Cardreader (RTS5176), P-Sensor (IQS128)

Major components:

Intel Broadwell-Y SoC
GPU: UMA
EC: ITE8386/ITE8586

File type : PDF (Searchable)
Language : English



Updated: 21-08-2019
