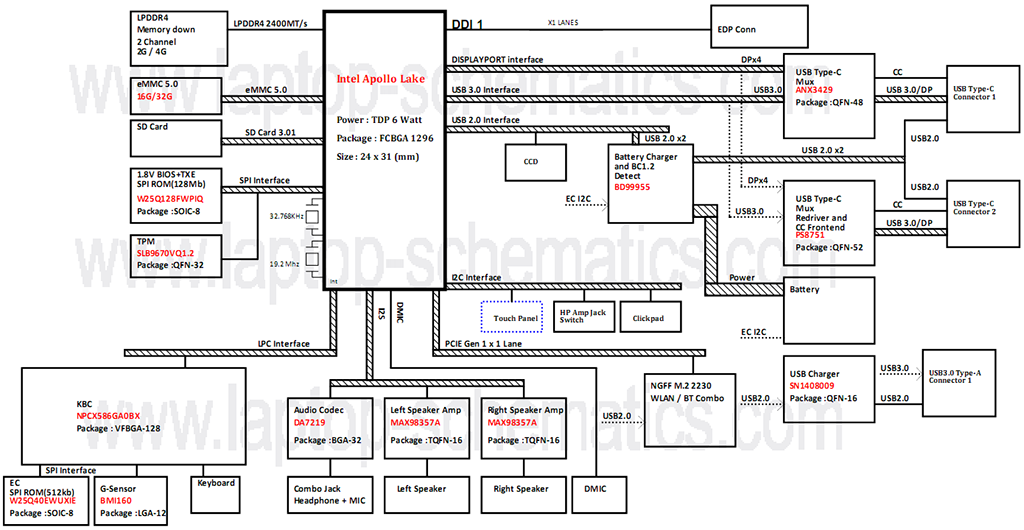

Lenovo 11e series ChromeBook laptops (ThinkPad) 11e 4th Gen Chromebook (Type 20HX 20J0), motherboard Schematic diagram

Click on picture to enlarge

Price: US $17.50


Also Included:

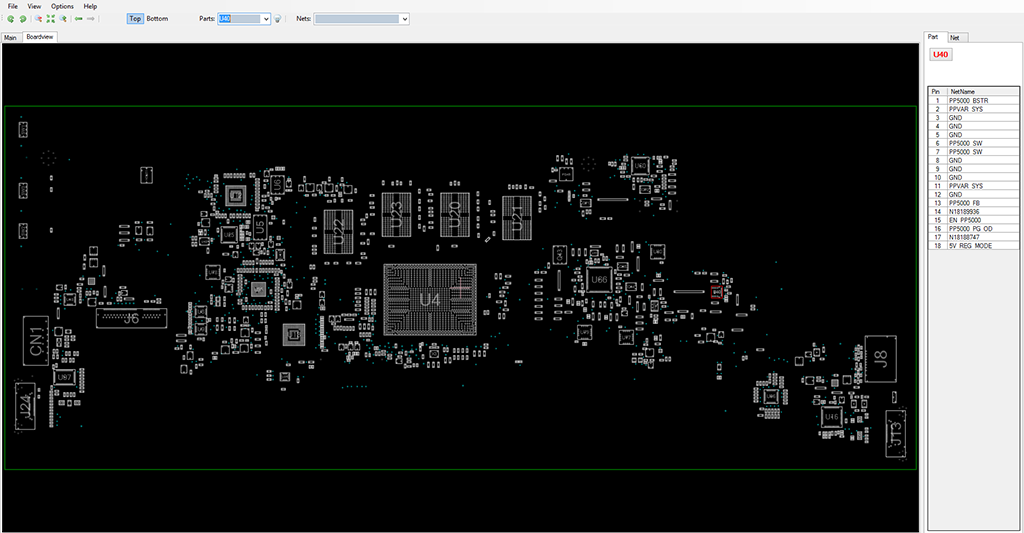

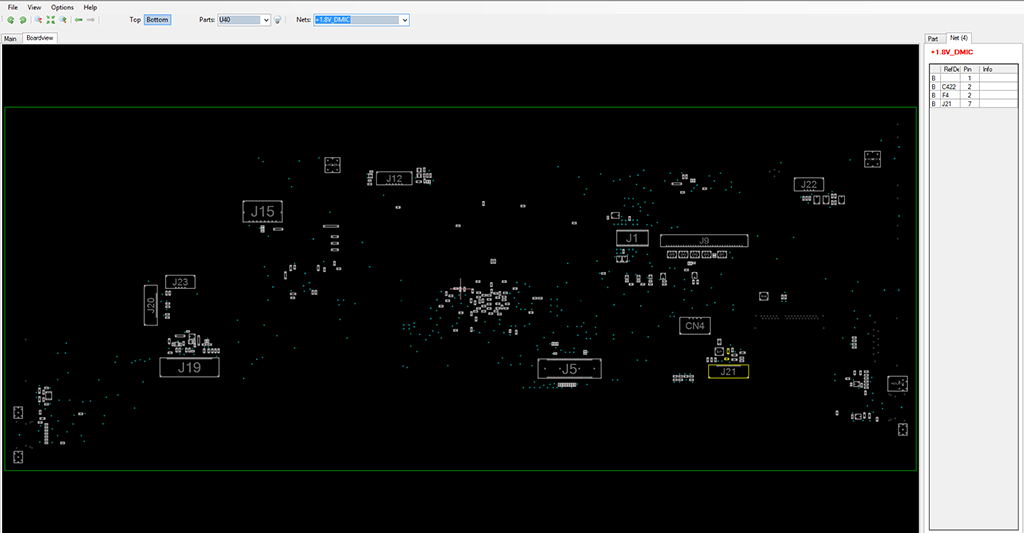

BoardView file and BoardView software
Power Sequence Diagram
2 Schematic diagram for daughter boards (G-Sensor and CardReader)

Major components:

Intel Apollolake M-Processor with LPDDR4
GPU: UMA
EC: NPCX586GA0BX

File type : PDF (Searchable)
Language : English

Updated: 20-08-2019
