Lenovo T series laptops (ThinkPad) T500 Laptop (ThinkPad) (UMA GPU), motherboard Schematic diagram

Click on picture to enlarge

Price: US $15.00

~ Block diagram is not available ~

Also included:

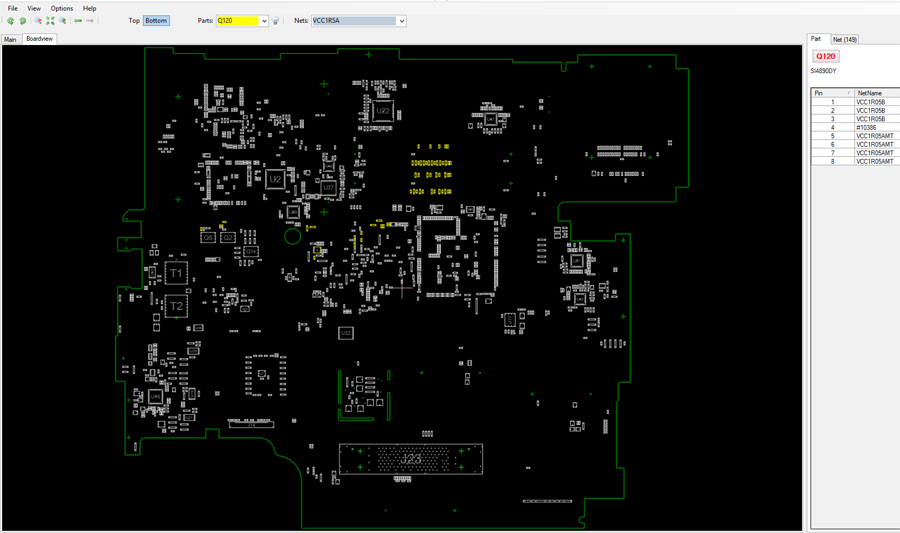

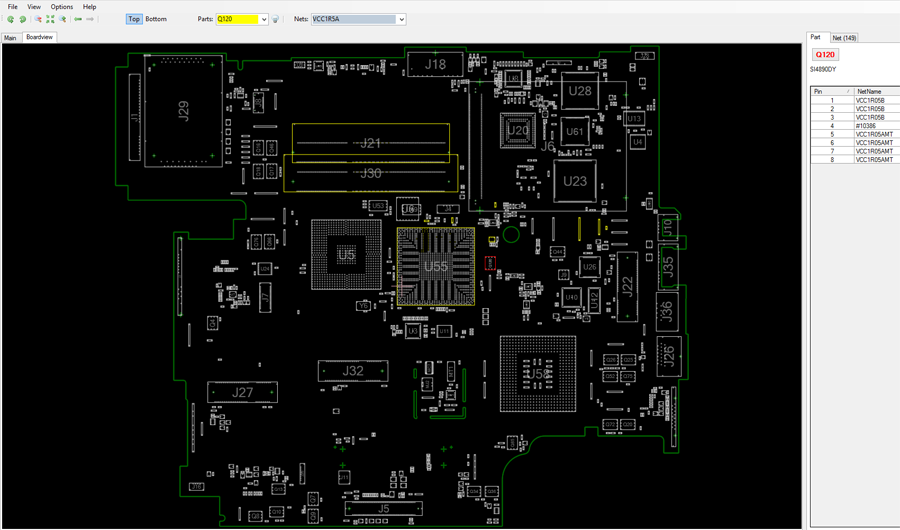

— BoardView file and BoardView software
— 4 schematic diagrams (REV: 1, 2, 6, 7)

Major components:

CPU: Intel PENRYN
NB/SB: Intel Cantiga / ICH9-M
GPU: (UMA)
EC : H8S/2116B

File type : PDF (Searchable)
Language : English
Updated: 02-01-2019
