Lenovo YOGA series laptops (ideapad) Yoga 900-13ISK Laptop (IdeaPad) (Type 80MK), motherboard Schematic diagram

Click on picture to enlarge

Price: US $15.00

Also included:

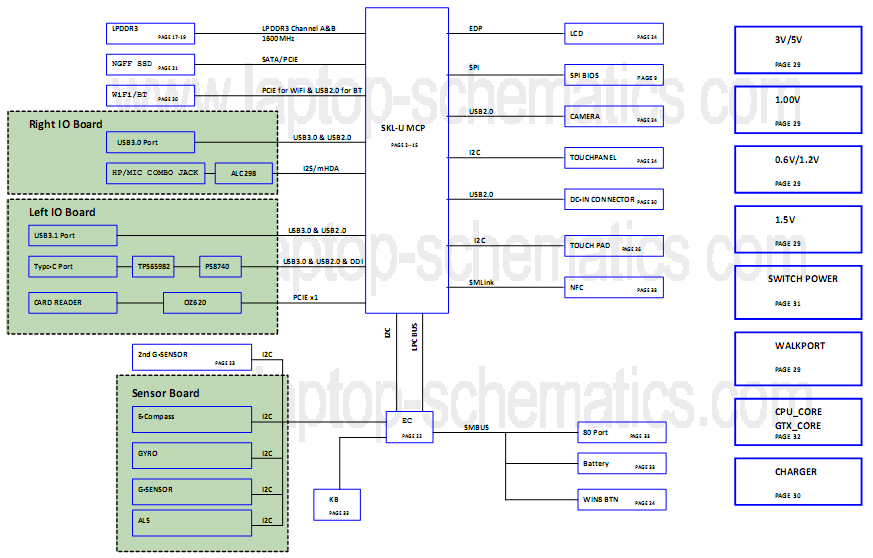

— Power Block diagram
— All Schematic diagrams for daughter boards :
/ Left IO board
/ Right IO boards
/ Sensor board
/ Left MIC board
/ Right MIC board

Major components:

Intel Skylake-U MCP
GPU (UMA)
EC IT8396VG

File type : PDF (Searchable)
Language : English

Updated: 22-02-2019
