Lenovo Y series laptops (ideapad) Y570 Laptop (IdeaPad), motherboard Schematic diagram

Click on picture to enlarge

Price: US $15.00

Also included:

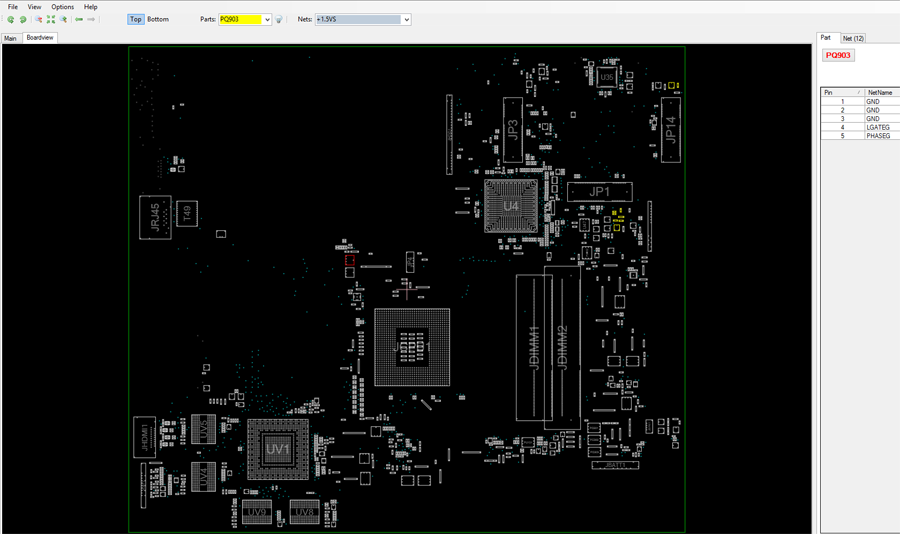

Boardview file and boardview software

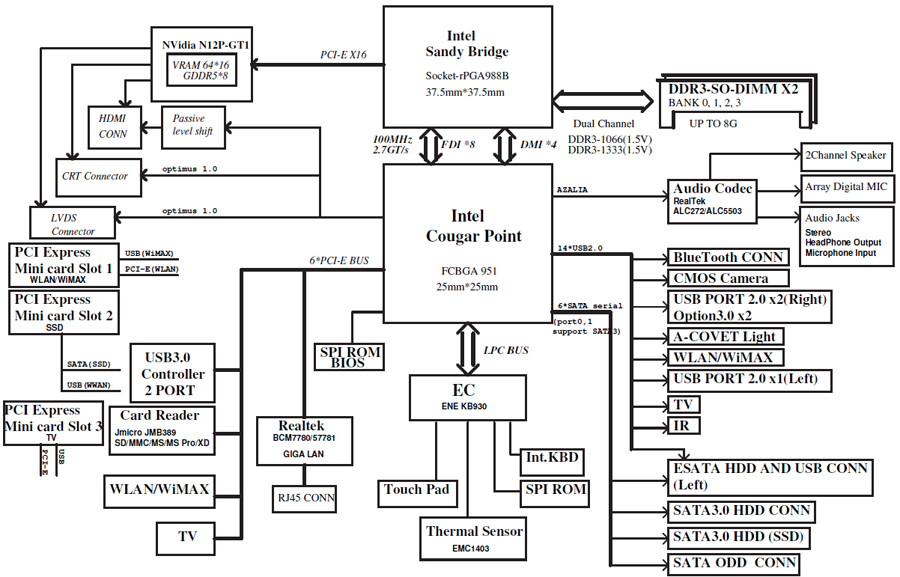

Power Sequence Block Diagram


Major components:

CPU Intel Sandy Bridge Processor with DDRIII
PCH Intel Cougar Point
GPU: nVIDIA N12P-GT1 (DIS) / (UMA)
EC: ENE KB930

File type : PDF (Searchable)
Language : English

Updated: 26-12-2018
